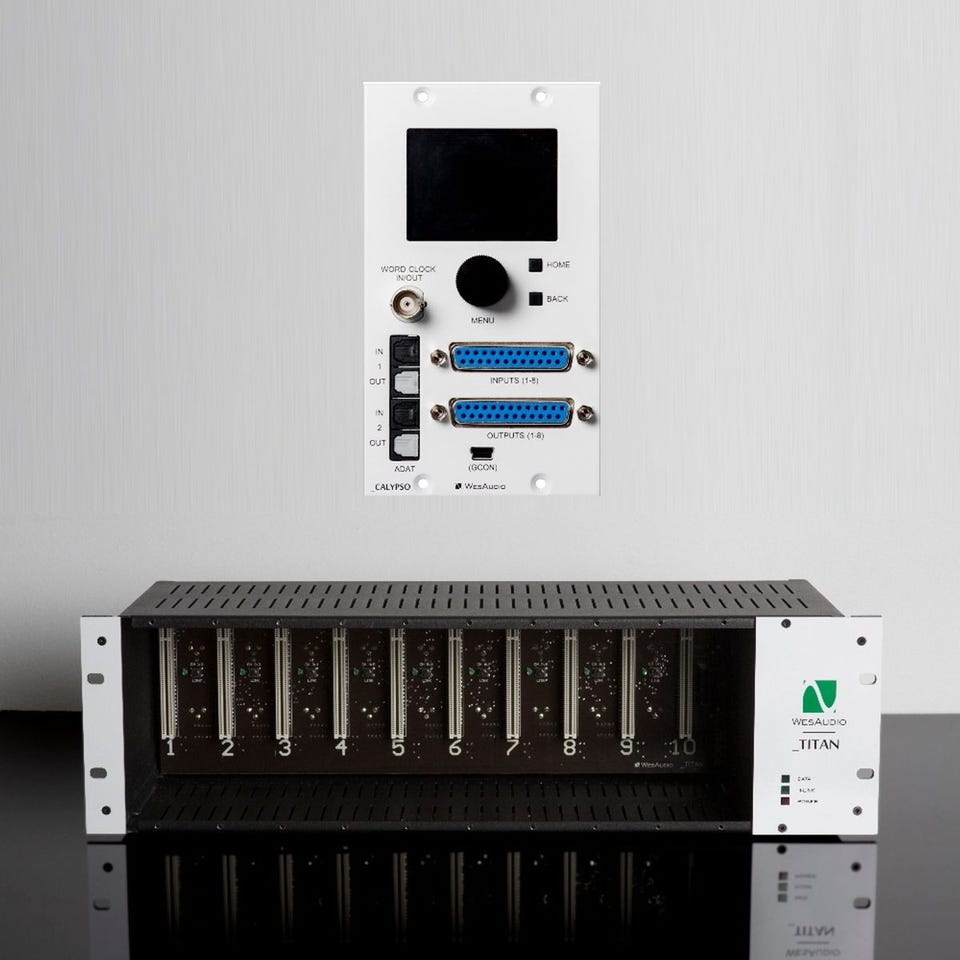

Wes Audio Titan ng 500 Chassis Bundle med Calypso 8 kanals AD/DA konverter
Til salgs18 995 kr
Beskrivelse
Wes Audio _Ttan Bundle With Calypso 8 channel AD/DA Converter.
_TITAN is complete recall system designed to provide total integration with your beloved analogue equipment. It extends 500 series connector with additional pins where modules can be designed to support digital recall or any other vendor specific functionalities. This extension is part of new open standard ng500 Next Generation 500 series which allows other manufacturers to design and implement digitally controlled analog devices.
We are proud to present _TITAN Future of analog processors.
HIGH END LINEAR POWER SUPLY
Linear power supply capable to deliver 5A of power will bring sound of your units to the next level!
10 SLOTS FOR 500-SERIES or ng500-SERIES MODULES(*)
(NB:Calypso AD/DA converter takes up 2 slots of the 10 available slots!)
_TITAN can host standarized 500 series module (Please read Important Note below).
Of course it was designed to recall up to 10 units with signle USB or Ethernet connection!
CONTROL ALL MODULES THROUGH ONE CONNECTION!

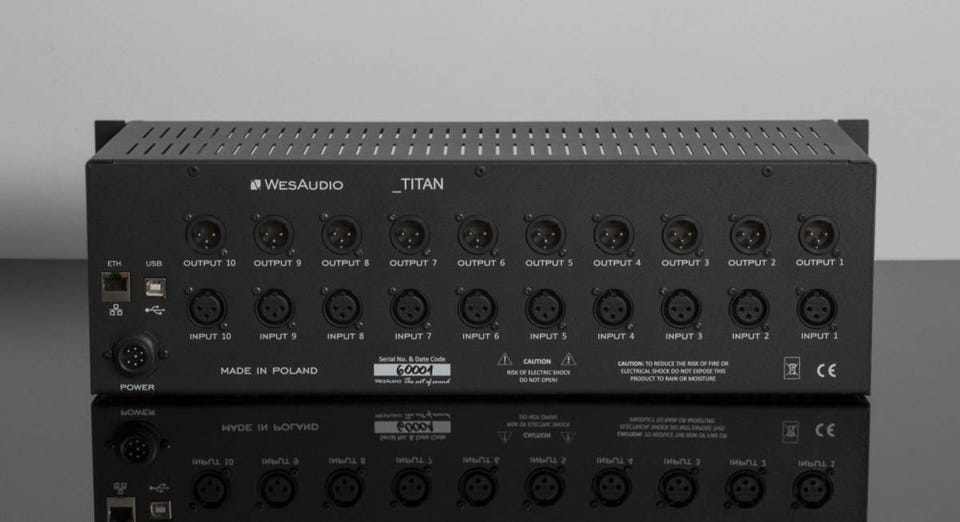

_TITAN allows to control/recall all hosted modules through one connection:
1) USB for direct connection with your workstation.
2) Ethernet dedicated LAN connection to access all devices in your local network.

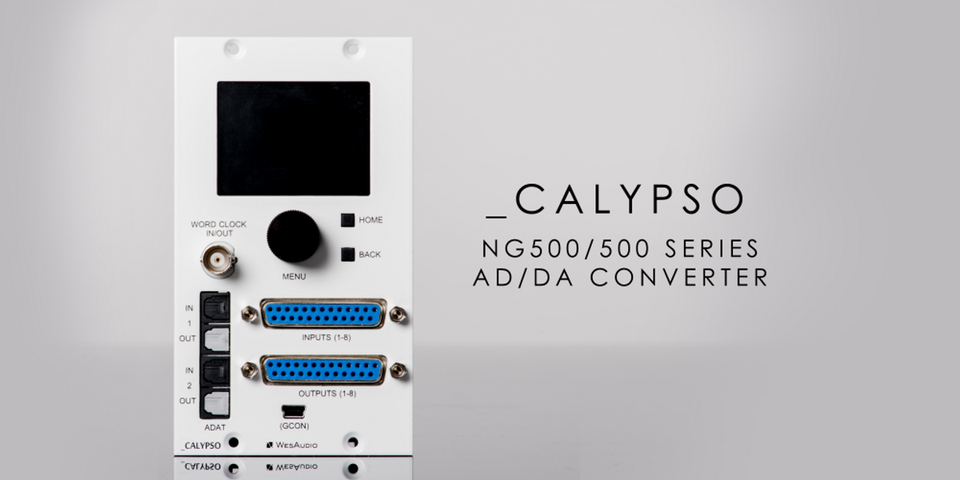

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.
Standard 500 chassis support!
_CALYPSO is designed to work with standard 500 series enclosures, in that case DB-25 connectors on the front panel can be used to route audio signal to and from chassis.
DB-25 connectors can be also used to route audio signal from and to outboard gear!
Convinient Plug-in for I.A.C. recall and more!

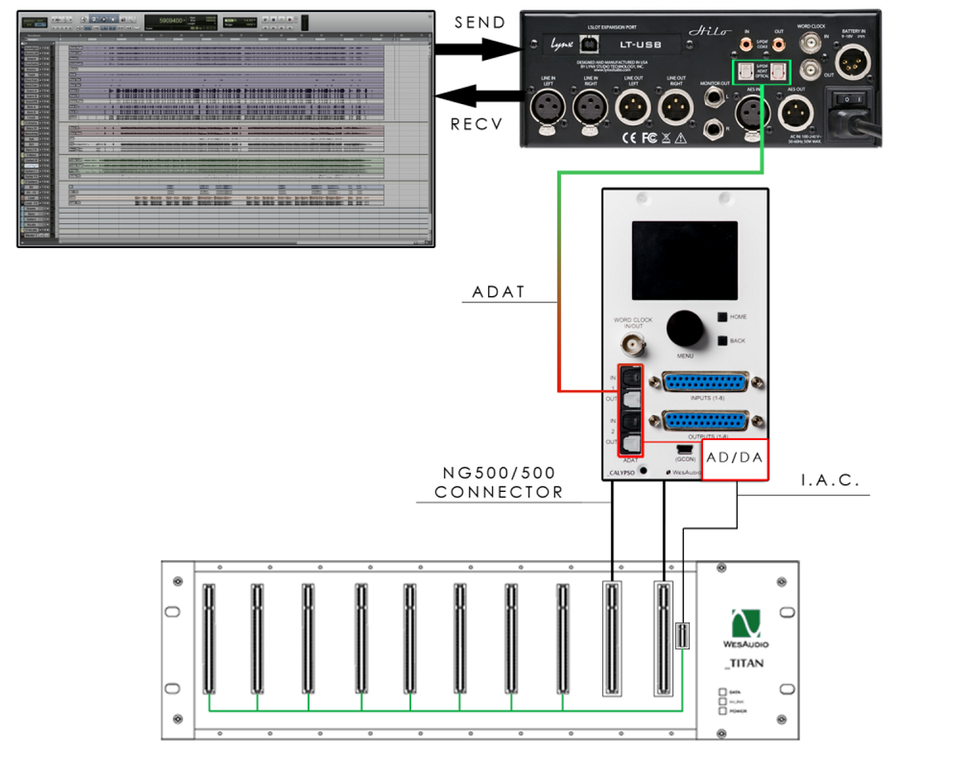

_CALYPSO as all ng500 units is integrated with VST2/VST3/AAX/AU plug-ins. While using with a _TITAN it allows to manage I.A.C. connector in other words it manages input source to each module to be either back XLR IN socket, or I.A.C. direct connection to _CALYPSO. This gives You totally recallable solution to route your signal differently based on DAW session. For more information please refer to examples section below! Plug-in supports:
Convinient metering,
Full unit control,
I.A.C. recall and management!
Sample rate selection based on DAW session
For more information please refer to manual!
NB: Knappen for å vise hele beskrivelsen har kun en visuell effekt.
Nøkkelinfo
- Tilstand
- Helt ny - Uåpnet/med lapp
