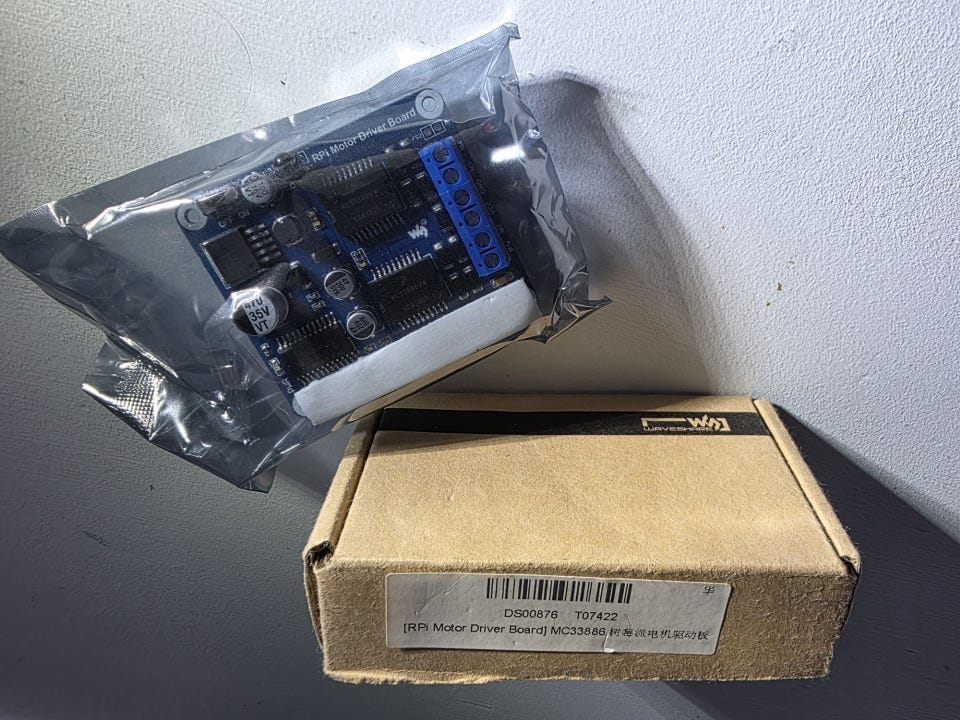

Waveshare RPi Motor Driver Board for RPI 3B
Til salgs
349 kr
Gratis frakt + Trygg betaling 46 kr
Trygg handel med Fiks ferdig
Etter levering har du 24 timer til å se over varen. Hvis det er noe galt med varen, får du pengene dine tilbake.
Lag en pakke
Kjøp mer fra selgeren og betal bare én fraktkostnad.
Beskrivelse av varen
Tilstand: Helt ny - Uåpnet/med lapp
Type: Annet
Raspberry Pi Expansion Board DC motor / Stepper
The RPi Motor Driver Board gives your Pi the ability to drive two DC motors
OR one stepper motor.
It's an ideal choice to DIY mobile robot based on Raspberry Pi.
Supports Raspberry Pi A+/B+/2B/3B
Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
Onboard 5V regulator, provides power to Raspberry Pi
Onboard IR receiver, used for remote control robot
Multi protection circuit, excellent stability
2A self-recovery fuse, keep your Pi safe
Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
Reversed polarity protection for motor output
Anti-reverse diode for power supply
Power input range: 7V~40V
Single motor output current: up to 5A
Power supply current for Raspberry Pi: up to 2A
Raspberry Pi Expansion Board, DC Motor / Stepper Motor Driver
Features
1. Supports Raspberry Pi A+/B+/2B/3B/3B+
2. Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
3. Onboard 5V regulator, provides power to Raspberry Pi
4. Onboard IR receiver, used for remote control robot
5. Multi protection circuit, excellent stability
- 2A self-recovery fuse, keep your Pi safe
- Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
- Reversed polarity protection for motor output
- Anti-reverse diode for power supply
6. Power input range: 7V~40V
7. Single motor output current: up to 5A
8. Power supply current for Raspberry Pi: up to 2A
Whats on Board
1. Raspberry Pi Expansion Board on board resource
2. Raspberry Pi GPIO interface: for connecting Raspberry Pi
3. Motor screw terminal: for connecting motors
4. External power input
5. 74LVC4245AD: voltage level conversion chip, buffer device
6. MC33886: motor driver chip
7. LM2596-5.0: 5V regulator
8. Power indicator
9. Raspberry Pi power selection
10. OFF: Raspberry Pi powers the Motor Driver Board
11. ON: Motor Driver Board powers the Raspberry Pi
12. 2A self-recovery fuse
13. IR receiver
14. Schottky diodes: protects the motor driver
15. Power supply anti-reverse diode
