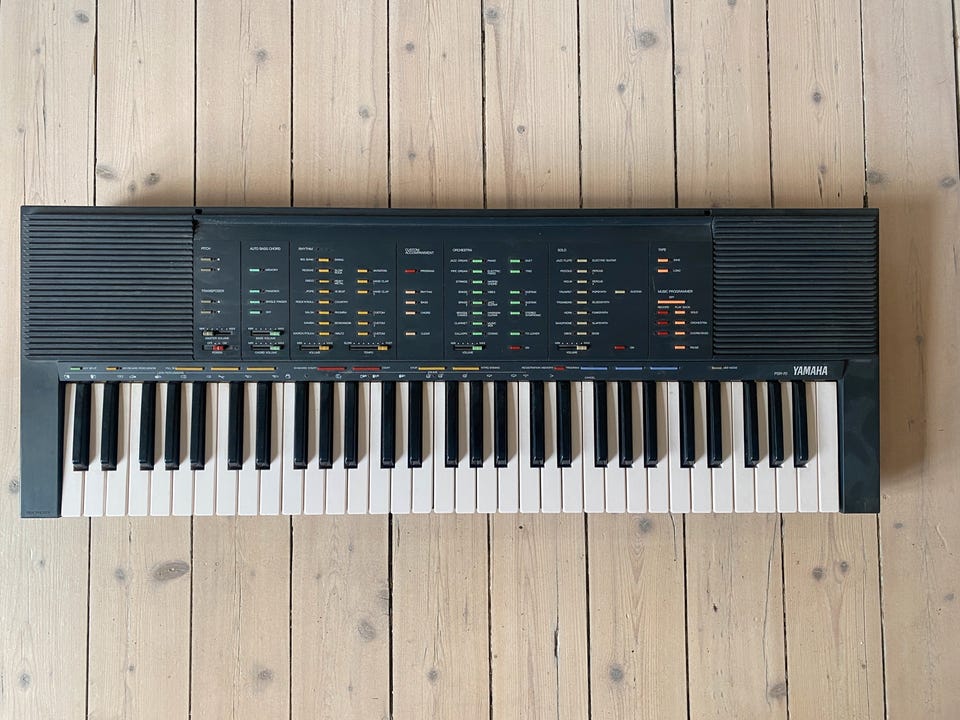

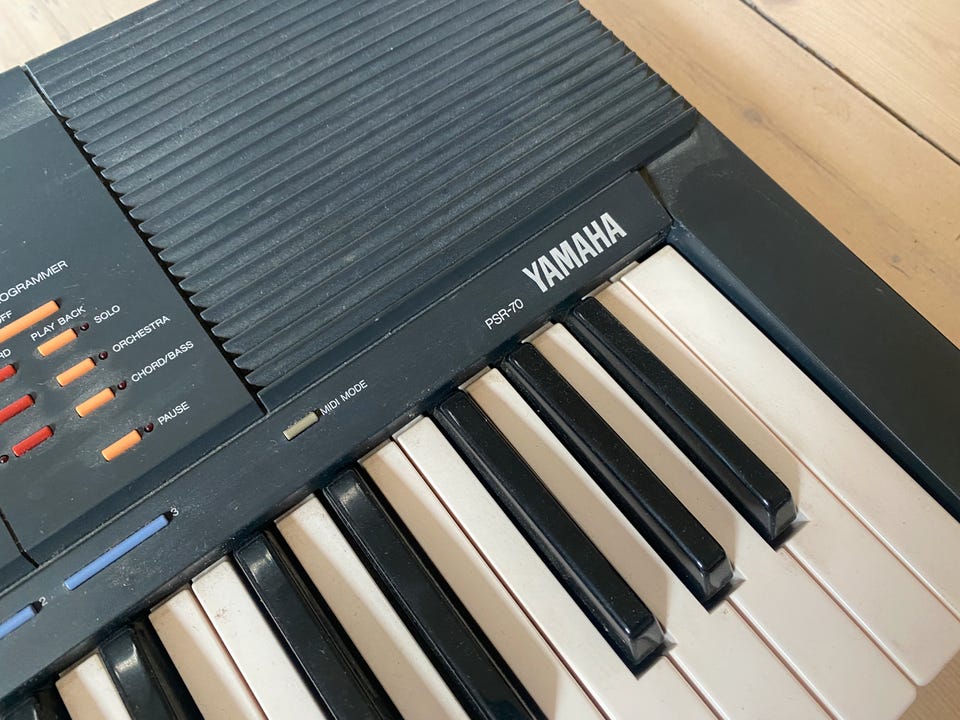

Yamaha PSR-70 (1985)
Til salgs
1 200 kr
Beskrivelse av varen
Tilstand: Pent brukt - I god stand
The Yamaha PSR-70 is a portable keyboard synthesizer released in 1985, part of Yamaha’s early PSR series, known for its FM synthesis and MIDI capabilities. Below are the key specifications based on available information:
• Keyboard: 61 full-sized, non-velocity-sensitive keys
• Synthesis Type: 2-operator FM synthesis (using YM3420 chip for melody, YM3419 for PCM drum voices)
• Polyphony: Maximum 6 voices
• Multitimbral: Not multitimbral (cannot play multiple instruments simultaneously)
• Sounds/Voices:
• Orchestra Section: 16 preset instrument voices (e.g., piano, strings, brass, synth sounds) selectable via 8 buttons
• Solo Section: 16 additional preset voices with sustain option
• PCM-sampled drum voices (25 drum sounds, including 10 dedicated drum sounds and 11 Latin percussion sounds on lower keys)
• Rhythms/Styles:
• 16 rhythm patterns (8 selectable via buttons, with variations)
• Custom rhythm programming (Custom 1, Custom 2, Custom 3)
• Hand clap 1 and 2 options
• Features:
• Auto Bass Chord (ABC): Memory, fingered, single-finger, and off modes for automatic accompaniment
• Built-in Sequencer: 3-track recording/playback (solo, orchestra, chord/bass)
• Arpeggiator: For creating complex rhythm patterns
• Custom Accompaniment: Programmable rhythm, bass, and chord patterns with clear function
• Effects: Stereo symphonic, duet, trio, sustain 1, sustain 2, to-lower (voice split to lower keys)
• Keyboard Split: Assign chord voices to lower keys, orchestra voices to upper keys
• Fill-ins: 3 fill-in patterns (Fill-in 1, 2, 3)
• Other Controls: Synchro start, start/stop, intro/ending, registration memory (3 presets), transpose (pitch adjustment in half-steps), pitch bend (up/down buttons), keyboard percussion
• MIDI:
• Standard 5-pin MIDI In/Out
• Supports 2 simultaneous MIDI channels
• MIDI functions include recording, playback, and connection to other MIDI devices

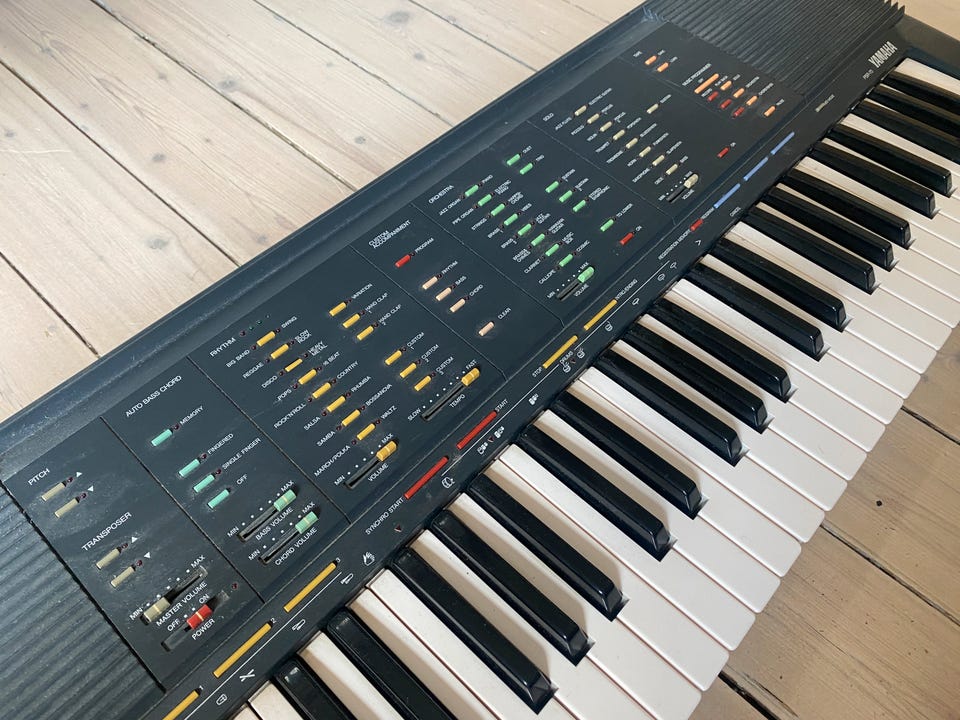

• Controls:
• Master volume slider
• Bass, chord, and rhythm volume sliders
• Tempo slider (slow/fast)
• Pitch and transpose buttons
• Multi-colored selector buttons with individual LEDs

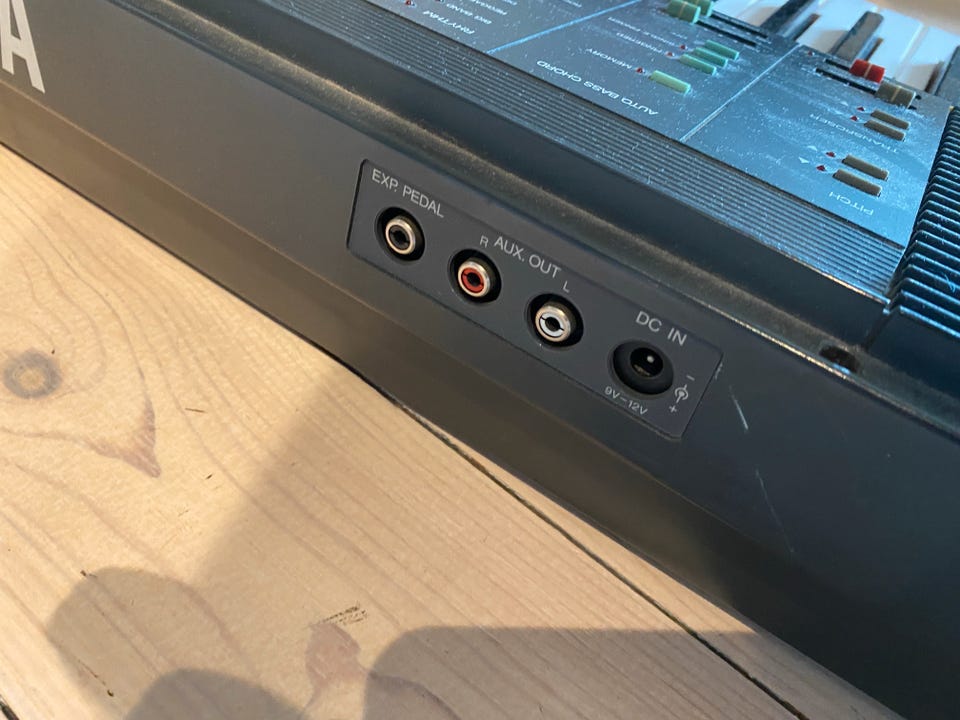

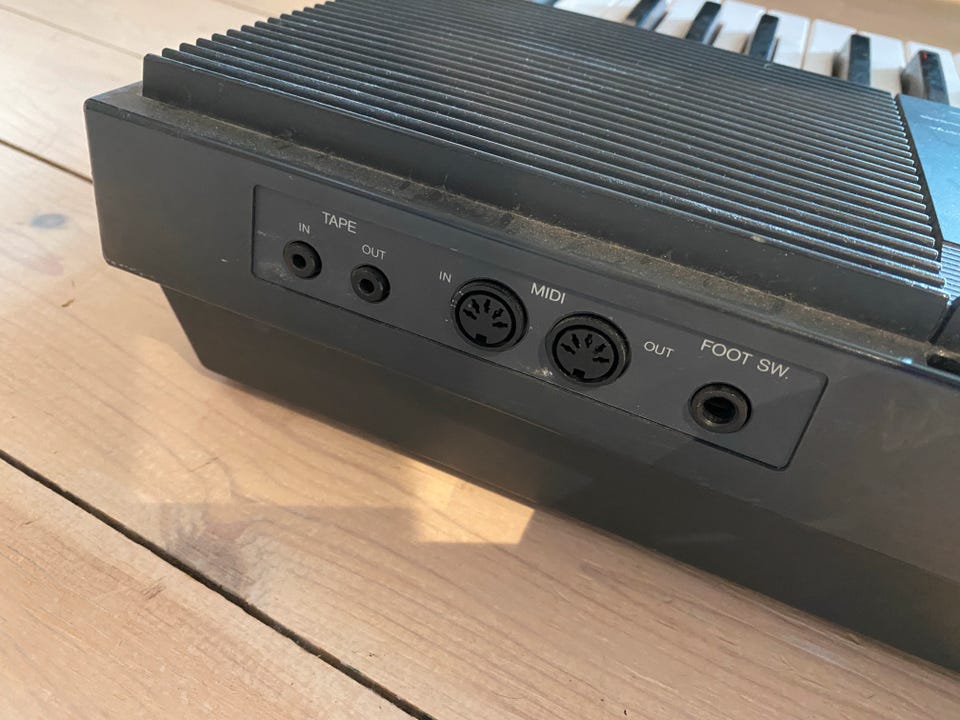

• Connectivity:
• Stereo RCA line out (Aux out)
• Tape In/Out (for saving/loading data via tape recorder, similar to early home computers)
• MIDI In/Out
• Foot switch input
• Expression pedal input
• Headphone jack
• DC power input
• Speakers: Built-in 5-watt stereo speakers LP
