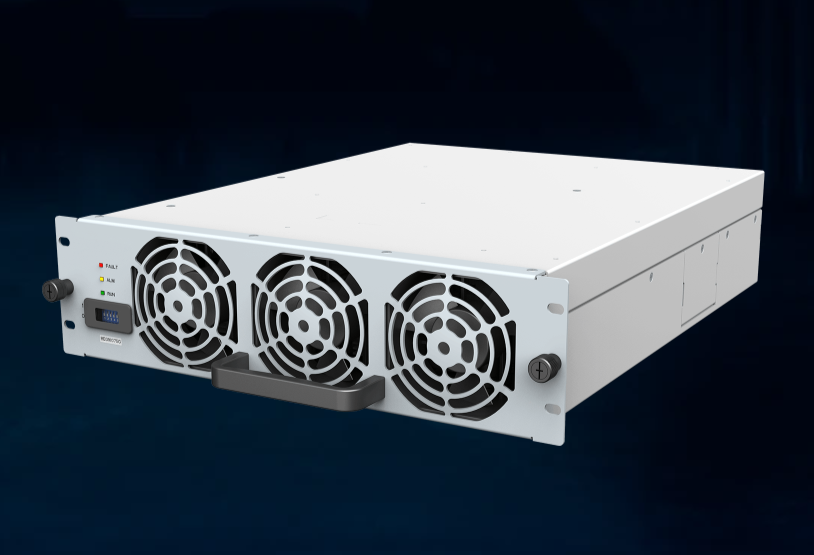

Konverter Powermodul for hurtiglading AC/DC 22kW 1000V 300-1000VDC BEG1K075G
Til salgs33 750 kr
Beskrivelse
Konverter Powermodul for hurtiglading AC/DC 22kW 1000V 300-1000VDC BEG1K075G Drive fra Infypower.
Vi har 2 stk på lager.
BEG1K075G is the bidirectional ACDC power module used to connect the battery or DC bus to the AC grid. It is specially designed for such bidirectional applications as V2G/VPF function EV chargers, retired battery utilization and the micro grid. It also can replace traditional PCS for energy storage systems. By employing the high frequency MOSFET/SiC switch technology, it can achieve excellent performance, high power density, high expansion ability and high reliability.
Fully isolated bidirectional ACDC, V2G support, off-grid support, max 32 modules on-grid in parallel and 16 modules off-grid in parallel.
Constant power output@300V-1000Vdc, full power output@320V-530Vac, 200V low voltage grid support.
Rapid current direction change within 10ms, automatic constant bus voltage support.
Standard, de-noise and silent mode can be set.
BABA support.
Super compatible: compatible in size and interface with the DCDC, BiDi ACDC, BiDi DCDC, VPF power module and MCS power module.
Conformal coating and glue flling provide high protection for high reliability.
Peak efficiency > 97%, full load efficiency > 96.5%
UL/TUV CE/cTUVus, global grid code certification.
Full SiC.
Pris: 27.000,- eks. MVA
Ekoda er basert i Austevoll og utvikler og leverer BESS-løsninger for energilagring, elbillading og nettilknytning. Våre systemer er laget for kvalitet, sikkerhet og pålitelighet, og vi tilbyr komplette løsninger fra prosjektering til service. BESS-systemene våre er godkjente “Made in Norway” og leveres til kommersielle og industrielle kunder i hele Europa.
NB: Knappen for å vise hele beskrivelsen har kun en visuell effekt.
Nøkkelinfo
- Tilstand
- Som ny - Ikke synlig brukt
