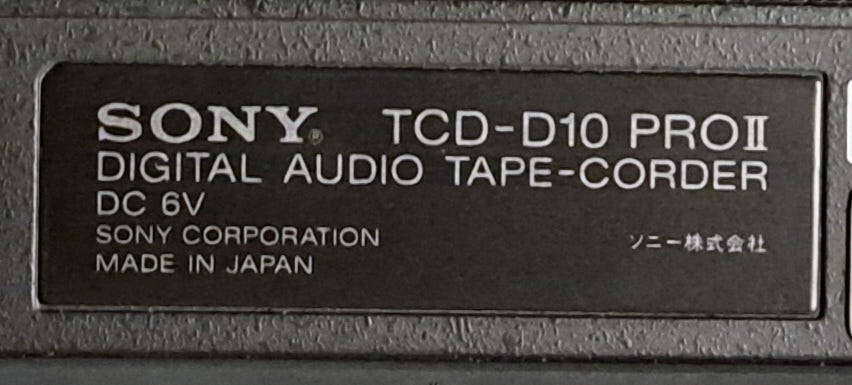

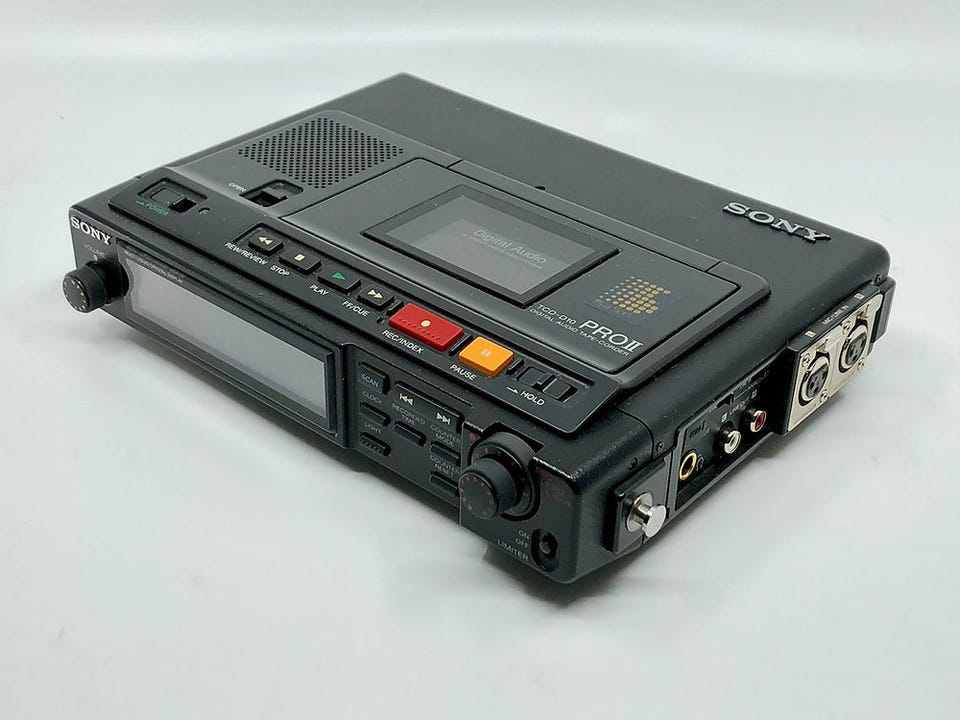

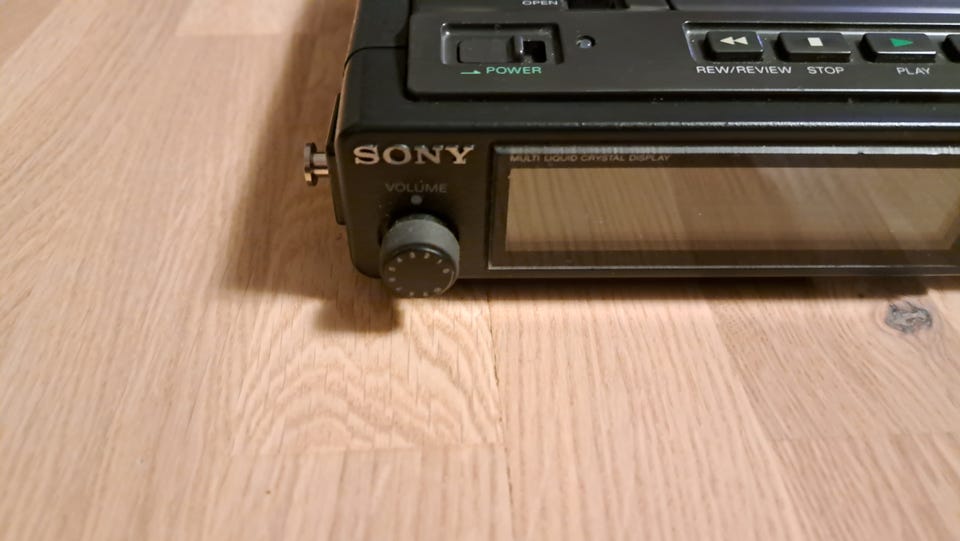

SONY TCD D10 PRO II - DAT
Til salgs
25 000 kr
Be om at selgeren sender med Fiks ferdig! Det er trygt, raskt, og du får varen levert til adressen din. Les mer
Beskrivelse av varen

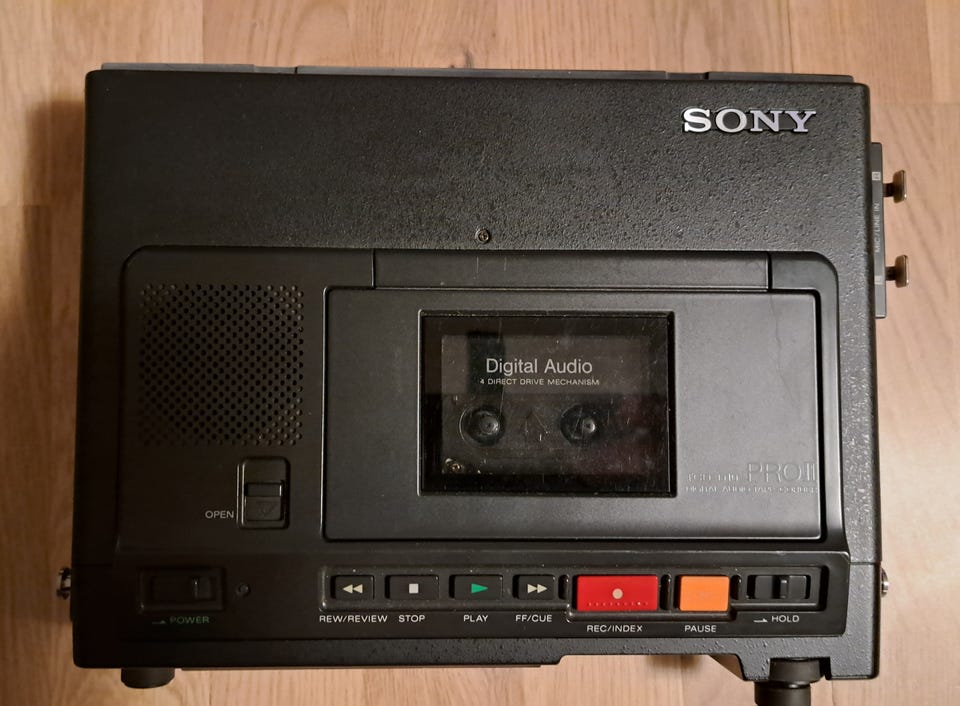

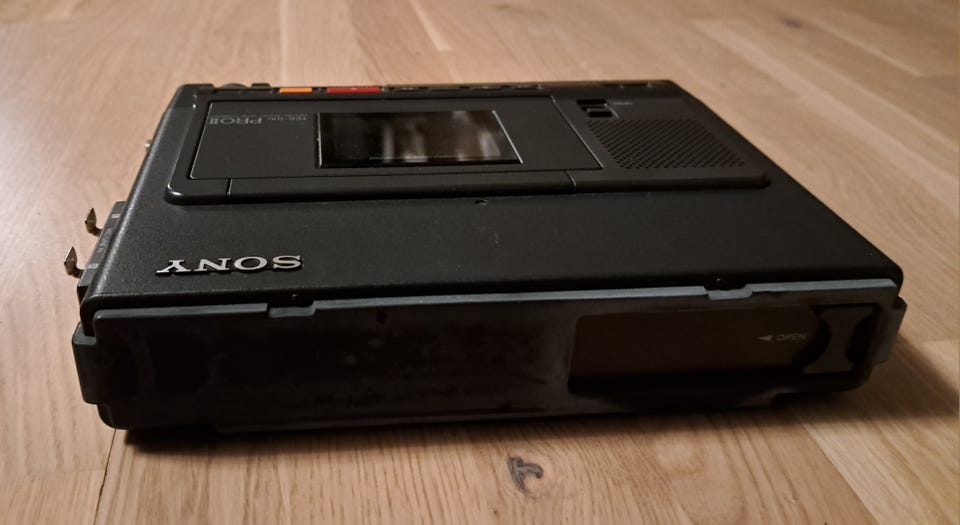

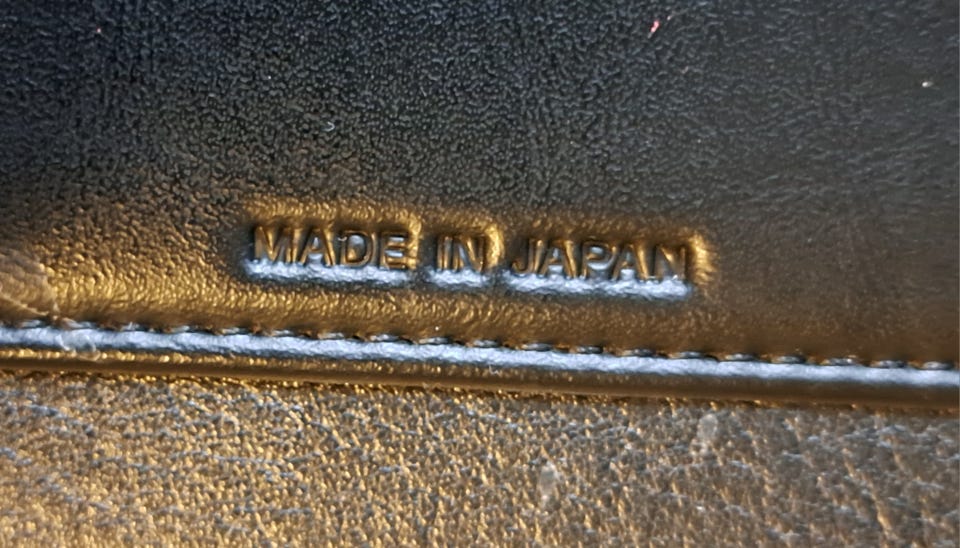

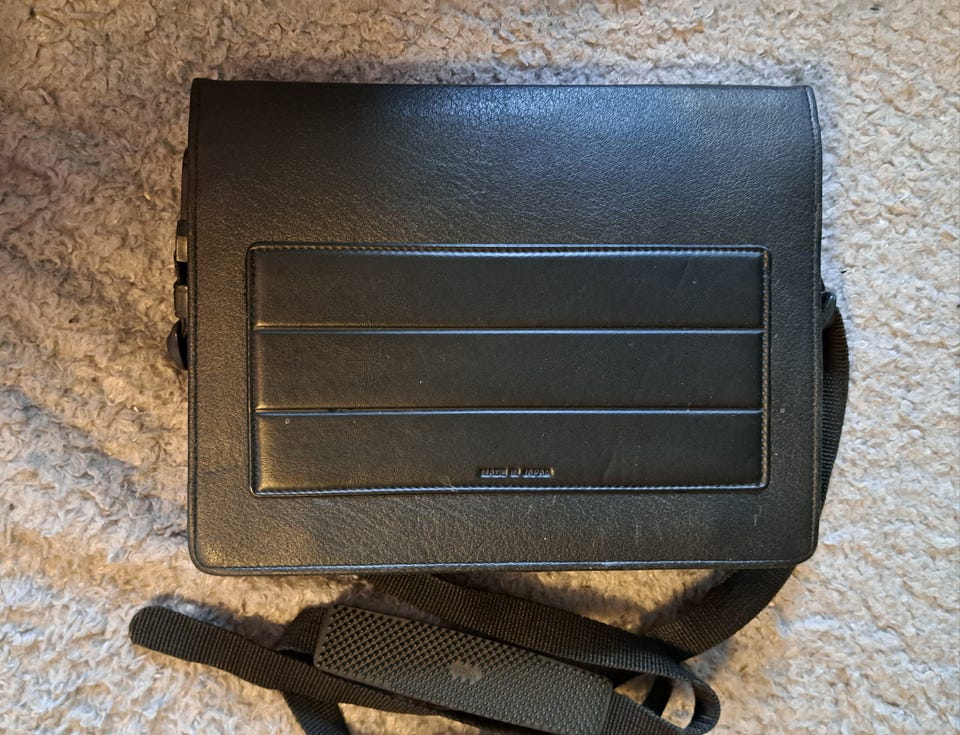

Flott bærbar Sony DAT -spiller som ble reddet for mange år siden. Den har medfølgende batteri og fin sort veske.

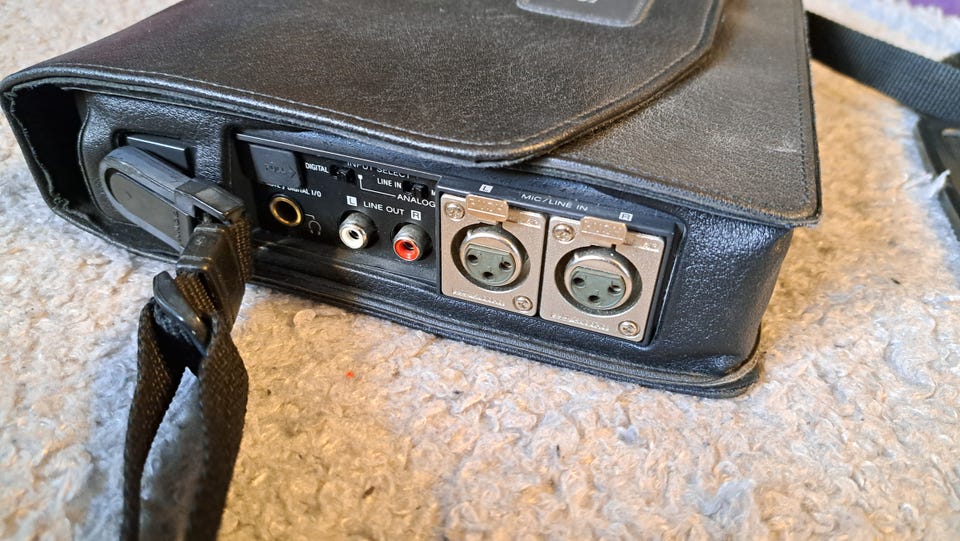

Leser at TCD D10 PRO II regnes som den beste bærbare DAT spilleren som noen gang er laget og er derfor ettertraktet. Med 4DD (direct drive), solid slitesterkt pro utgave i metall med funksjoner som ikke fantes på forbrukerutgavene. Bygget med veldig bra komponenter og specs, som stabil klokke, balanserte XLR, eksepsjonelt gode preamps / line in og valgfri limiter, AES/EBU, ingen SCMS, etc. En bærbar opptaker av ypperste tekniske kvalitet.
Kan lite om DAT, har ikke psu/lader og har derfor aldri fått brukt den. Lagret i veske, og ser veldig fin ut, den har tidligere vært hos norsk rikskringkasting(var det feil på noe utstyr ble det reparert av intern serviceavdeling). Selges som den er, og kan sendes på kjøpers ansvar.
------
Digital audio / tape recorder "Digital Denske" was announced as a portable type of DAT deck.
While maintaining is reduced to B5 size while maintaining the quality.
It adopts the same 4D. D. motor mechanism as DTC-1000ES, and maintains high precision over a long period of time even under severe operating conditions, and acquires high reliability and durability.
A high SN ratio has been obtained by using a low-noise FET for the microphone amplifier.
In addition, to expand the dynamic range, the first stage of the microphone amplifier uses a power supply that is boosted to ± 15 v.
Although it looks like 2 lines on the outside, it uses 4 lines independent volume with separate line input and microphone input on the circuit.
We have also adopted an NF-type attenuator that minimizes the deterioration of the SN ratio.
Recording characteristics are improved by applying pre-emphasis.
The A/D converter uses a 16-bit double integration type that has been used in professional PCM equipment.
Start ID up to 99 points can be recorded automatically (always at the start of recording) or manually (at any point during recording). Also, during playback, scan search allows recording confirmation for approximately 10 seconds from each start ID.
You can use the built-in clock to record the recorded time in real time. The recorded time is the year, month, day, day of week, hour, minute and second, and can be called up on the display during playback.
This function is only available for self-recording on TCD-D10.
It is equipped with a 2-speed Cue & Review function that plays normally for about 5 seconds at first and fast-forwards after that.

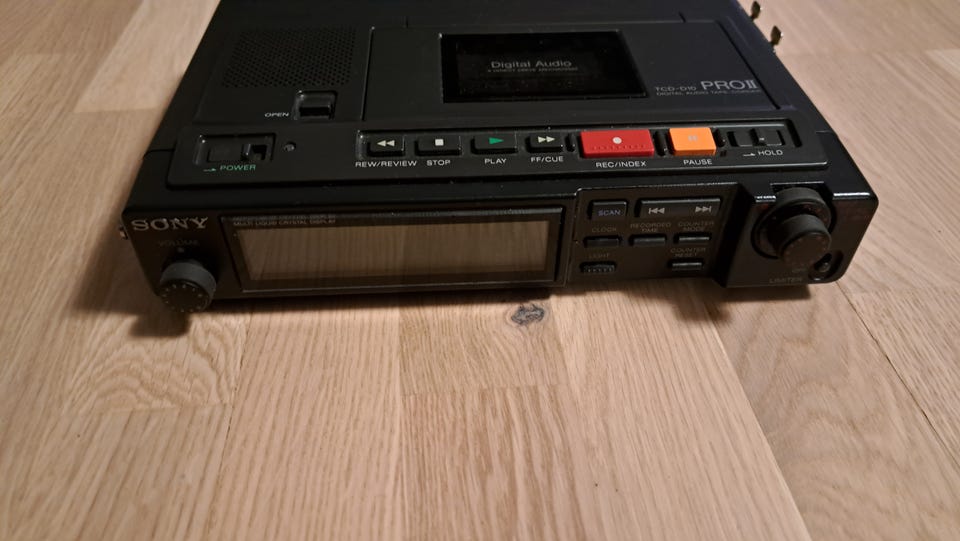

In addition to the recorded time, it is equipped with the liquid crystal display which can display recording elapsed time, remaining time of the tape and remaining battery warning.

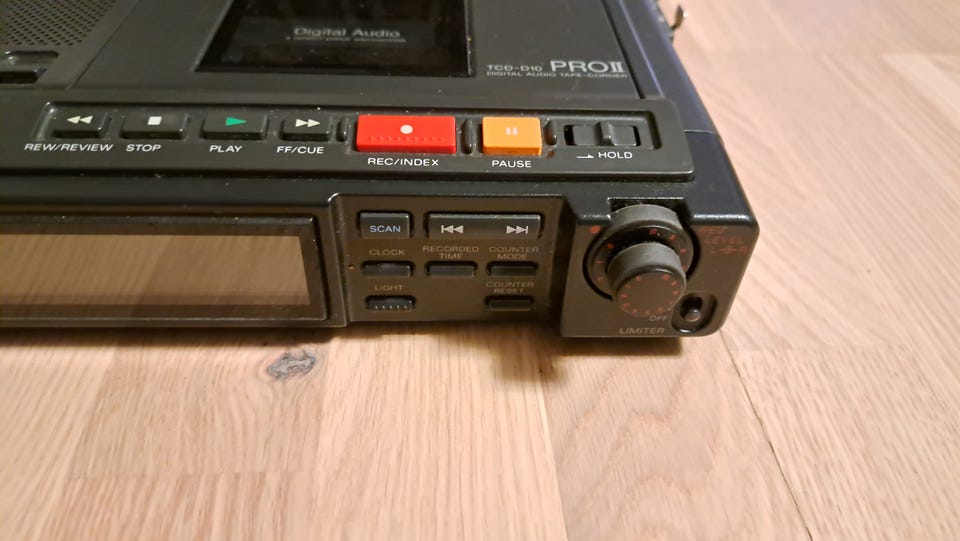

Equipped with a limiter function to prevent distortion caused by unexpected large input.
It also has a 20 dB attenuator that prevents the microphone amplifier from being saturated by a loud source.
It is equipped with a monaural monitor speaker that can confirm the recorded contents.
Equipped with a hold switch to hold recording and regenerating condition even in heavy motion.
By placing the main switch on the top panel, indoor usability is also taken into consideration.

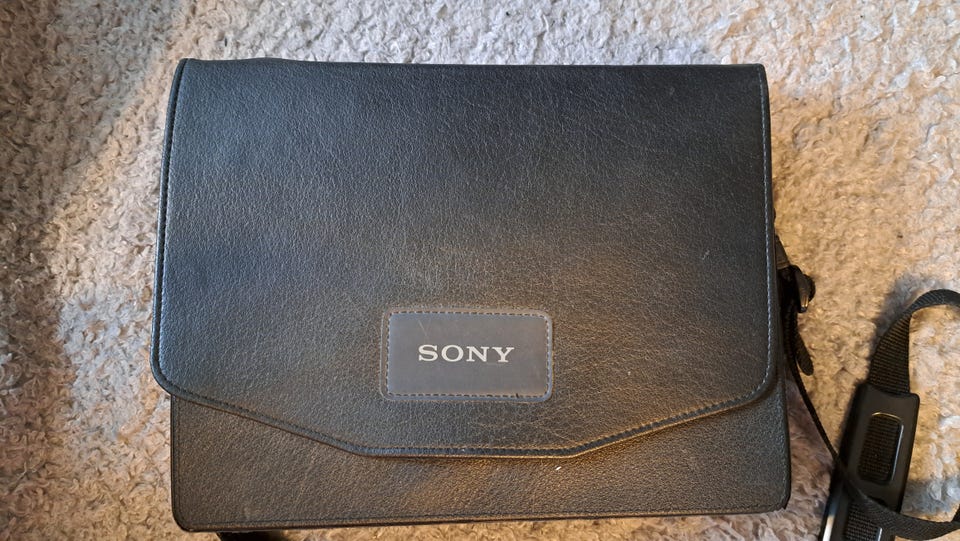

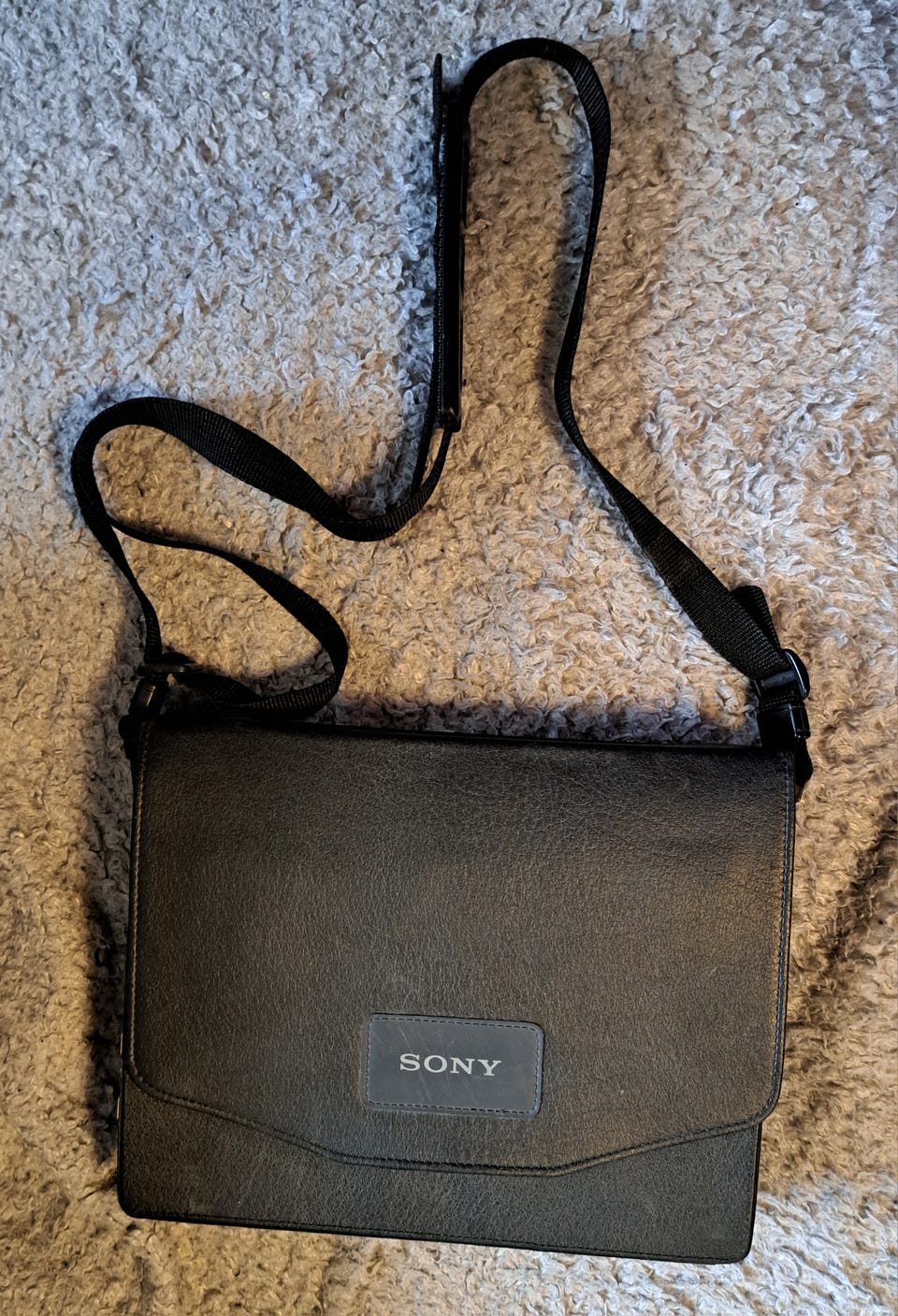

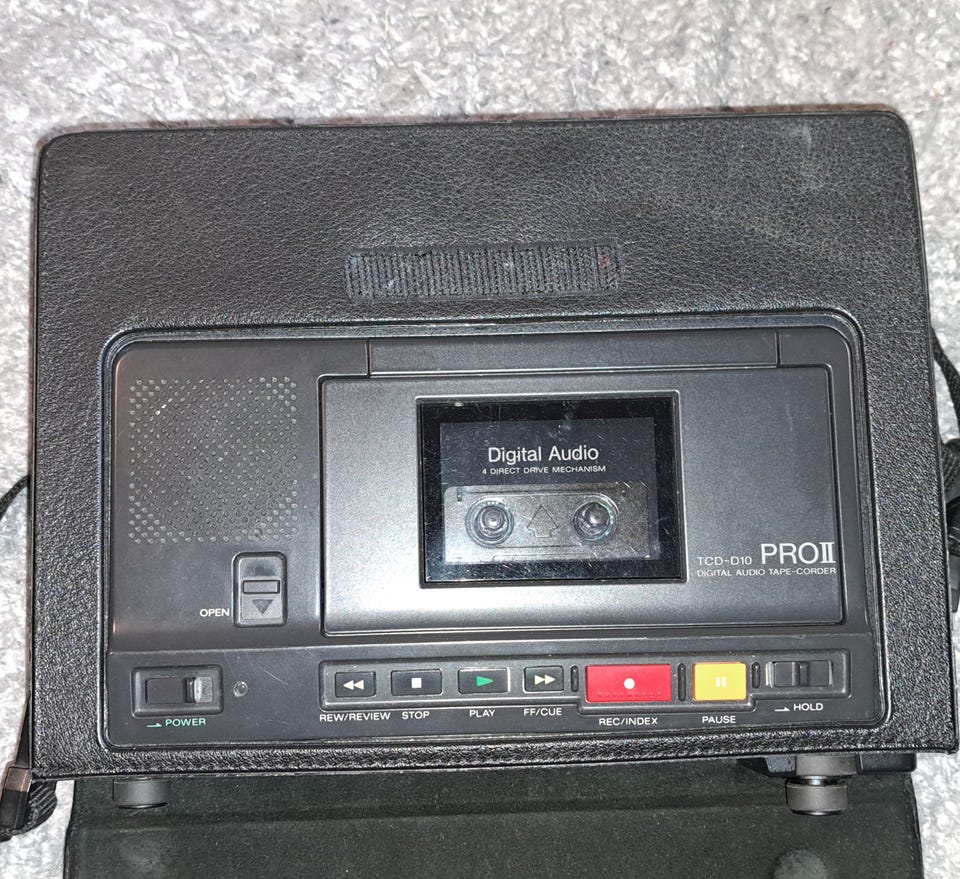

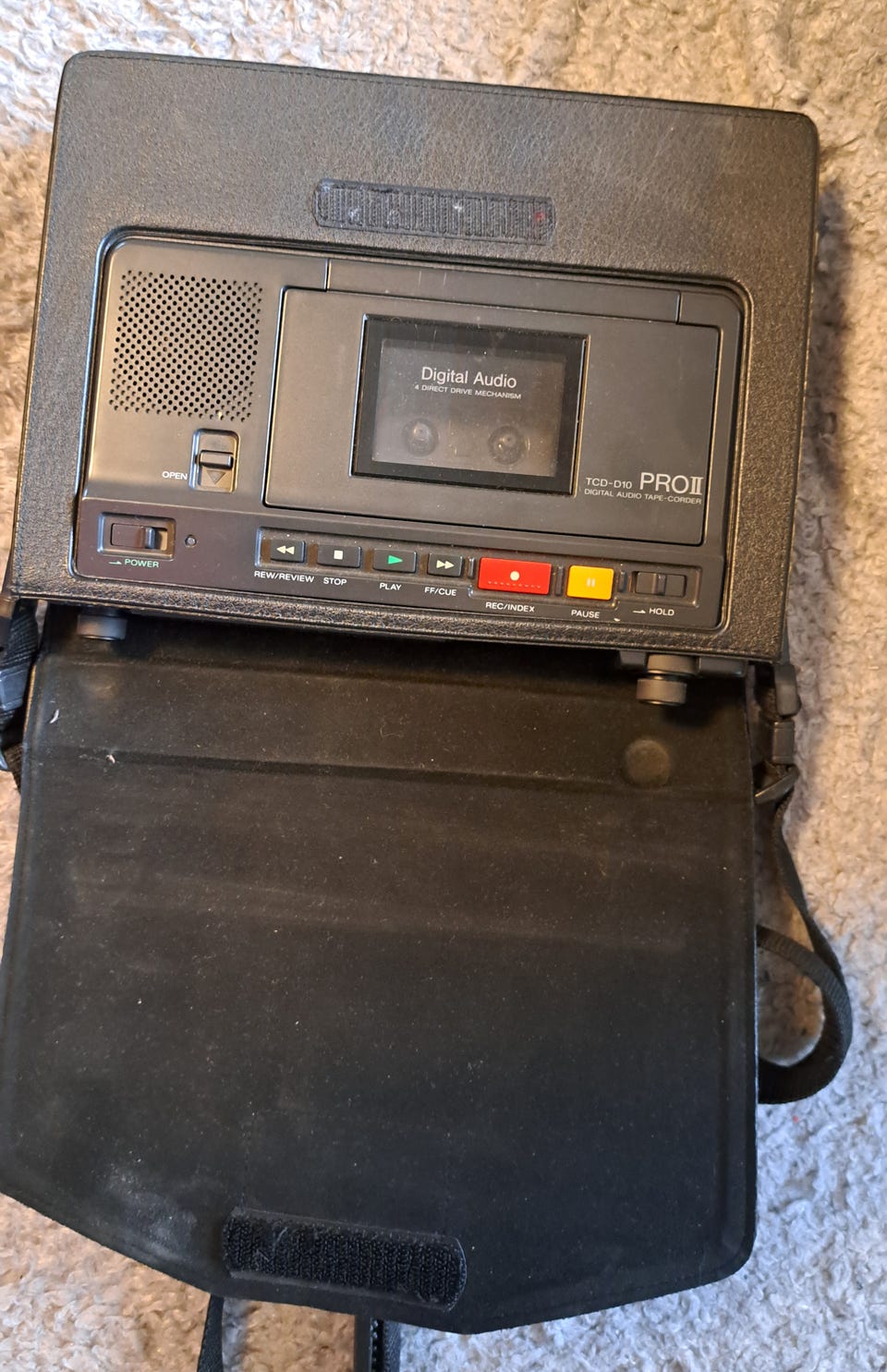

Carrying case.
Even in places where there is no home power supply, the attached rechargeable battery allows recording for about 2 hours continuously.
This rechargeable battery is fully charged in 1.5 hours using the included AC adapter and battery charge adapter.
With accessories sold separately, it can be driven by car battery.
Model Rating
Type DAT recorder
Number of channels 2-channel stereo
Sampling frequency 48 kHz (Recording / Playback)
44.1 kHz (Playback only)
32 kHz (Record / Play only Digital in)
Number of quantization bits 16-bit straight line
Error correction Double encoded reed solomon cord
Emphasis Pre-emphasis (for analog input during recording) is fixed to off
Automatic switching of de-emphasis (during playback) on/off
Modulation system 8-10 conversion
Frequency characteristic 20 Hz to 22 kHz ± 1 dB
Dynamic range 90 dB or more (emphasis off during recording)
Signal-to-noise ratio 85 dB or more (emphasis off during recording)
Total harmonic distortion factor Not more than 0.008%
Wow and flutter Measurement limit (± 0.001% W. Peak) or less

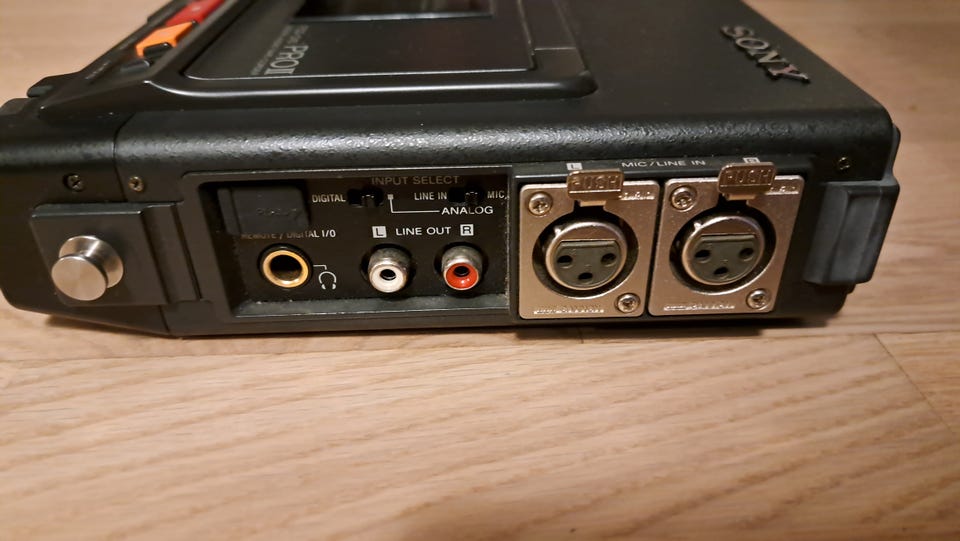

Interface Microphone input : standard jack
Analog Line in/out : Pin Jack
Pwer Included Rechargeable Battery : 6 VDC
Included AC Adapter Used : 100 VAC, 50Hz/60Hz
Battery life time 2 hours (continuous recording, full charge)
Power consumption 8.5W
External dimensions Width 253x Height 55x Depth 191 mm (Including Maximum Protrusion)
Weight Approx. 1.85 kg
Attachment One point Stereo Microphone ECM-959DT
Remote Commander RMT-D10
AC Adapter ACP-D10
Rechargeable Battery NP-22H
Battery Charge Adapter BC-D10
Carrying Case / Belt
DAT Tape DT-60
Connection code x2
