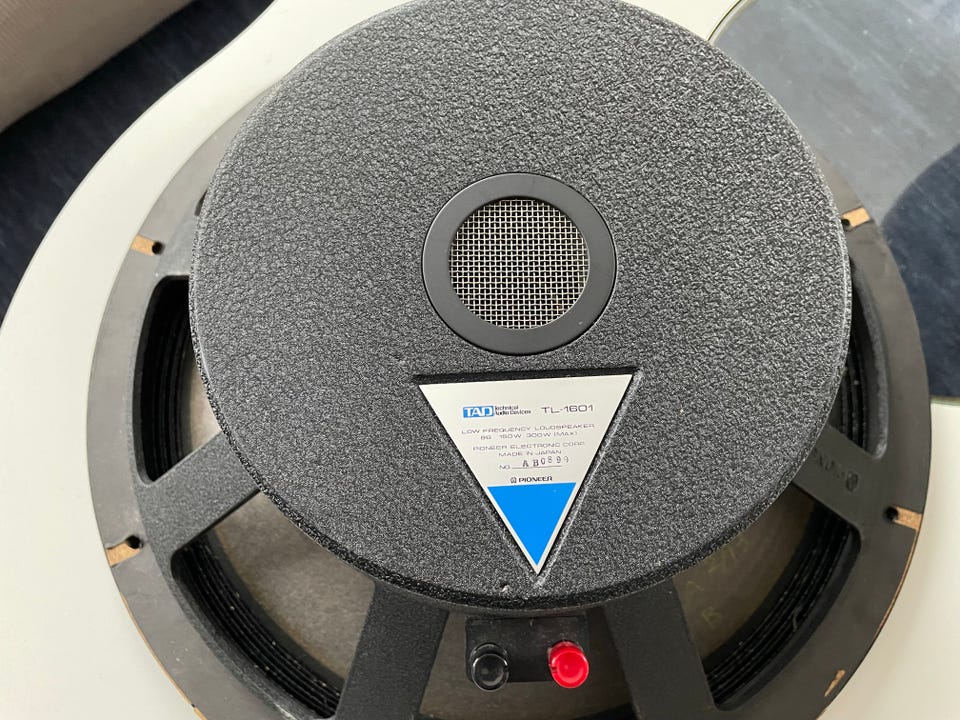

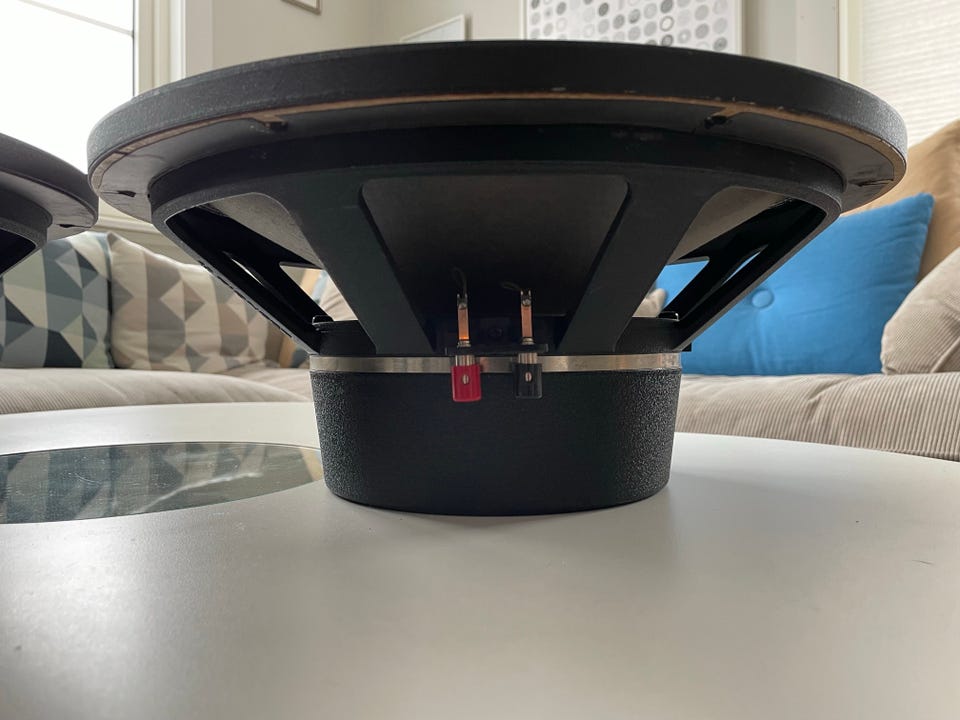

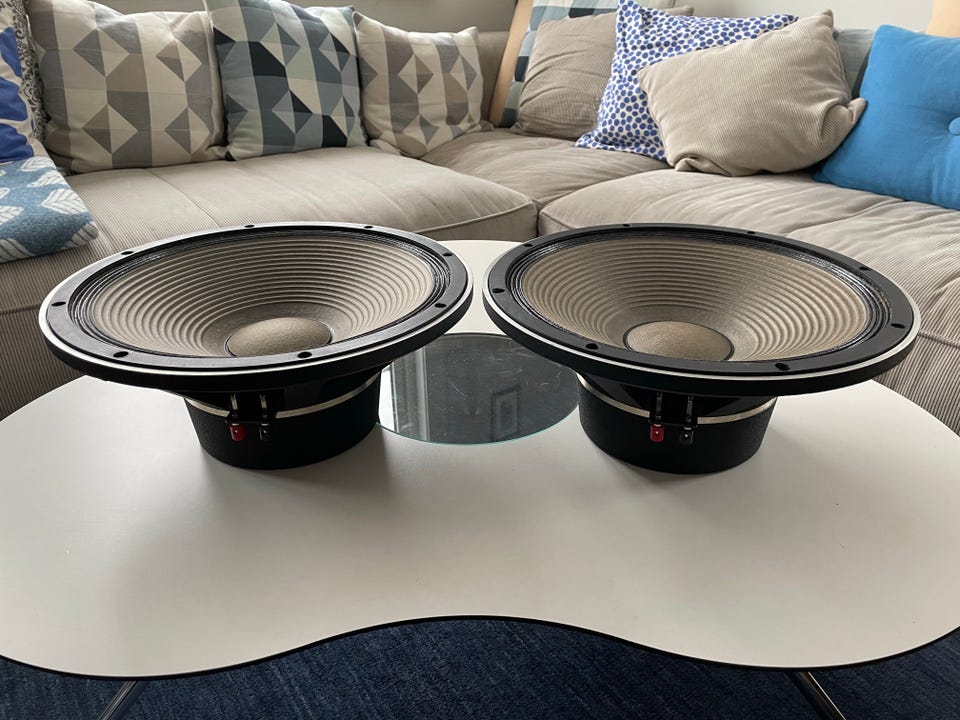

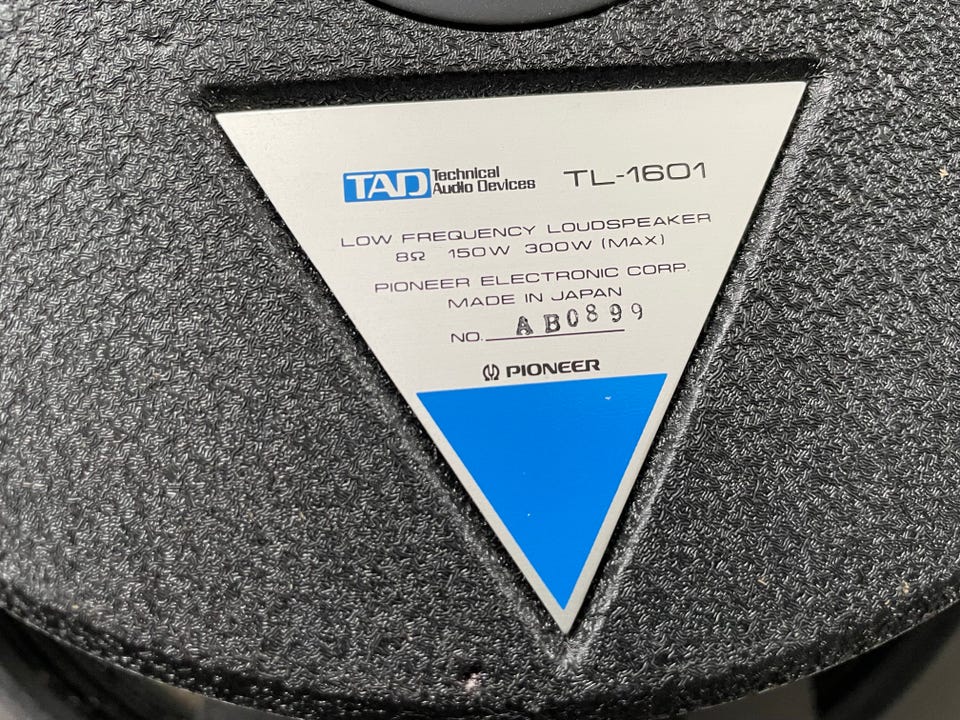

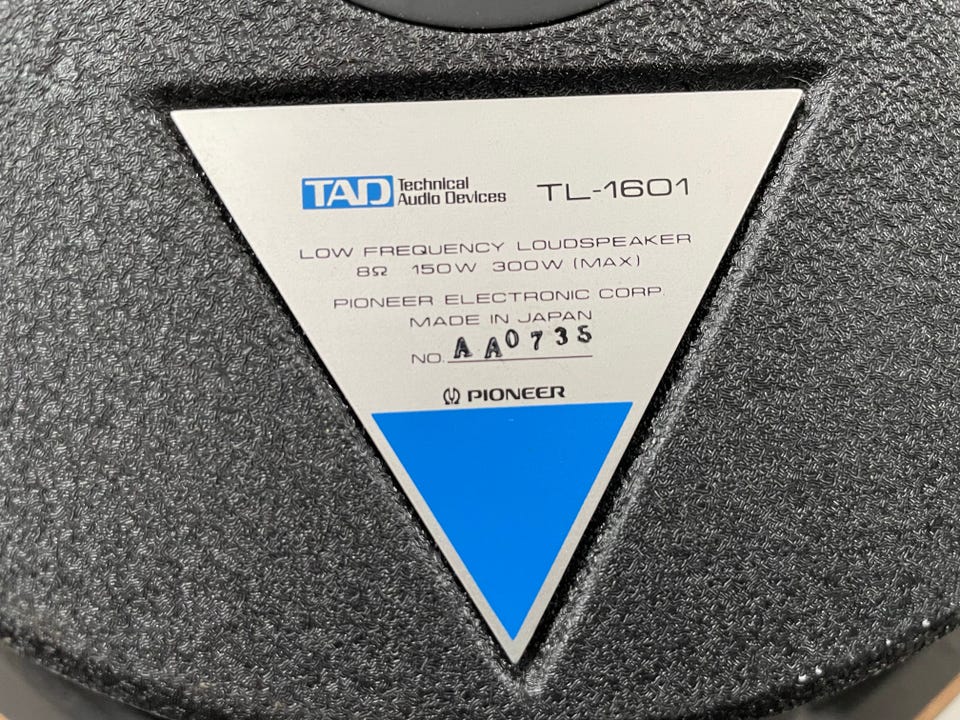

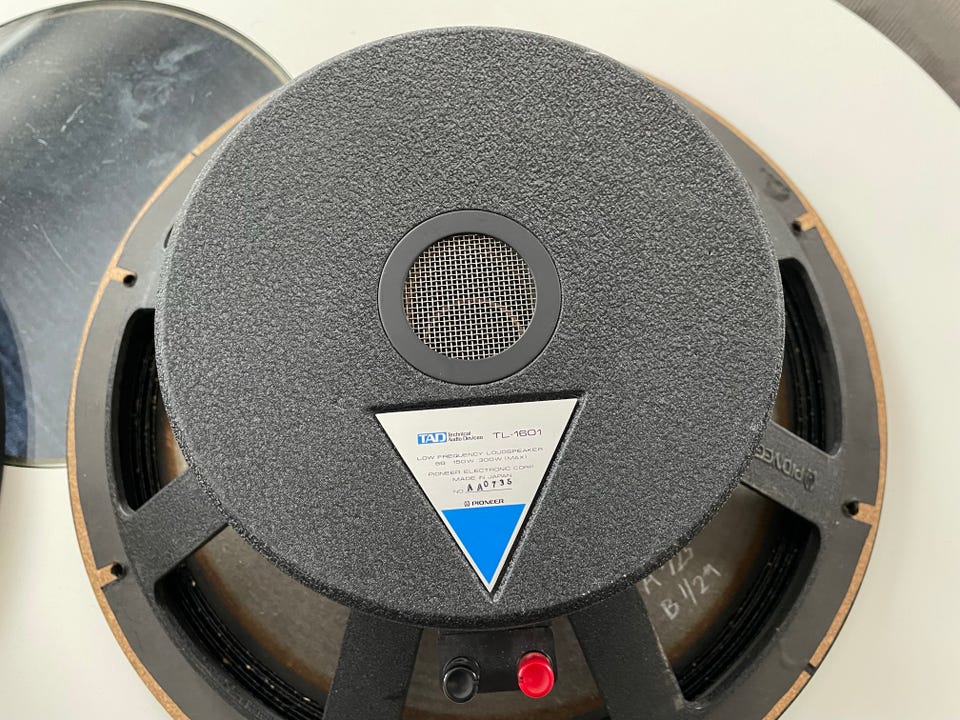

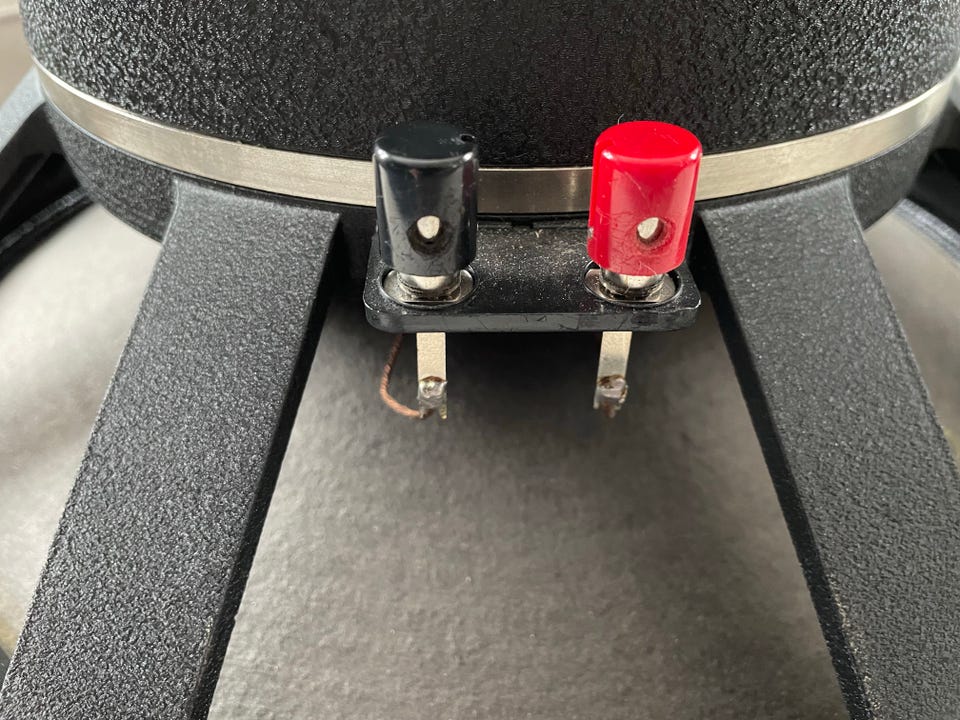

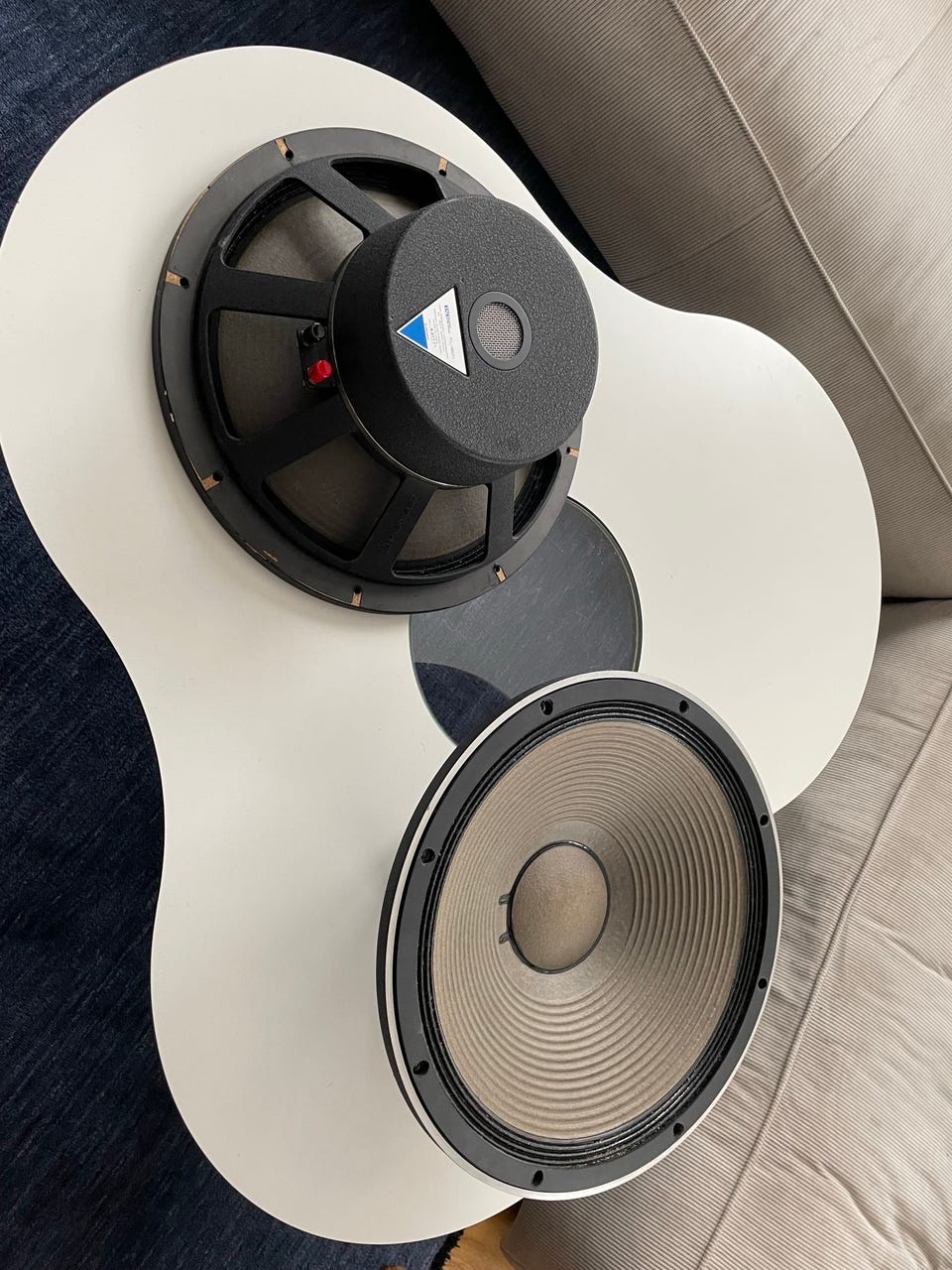

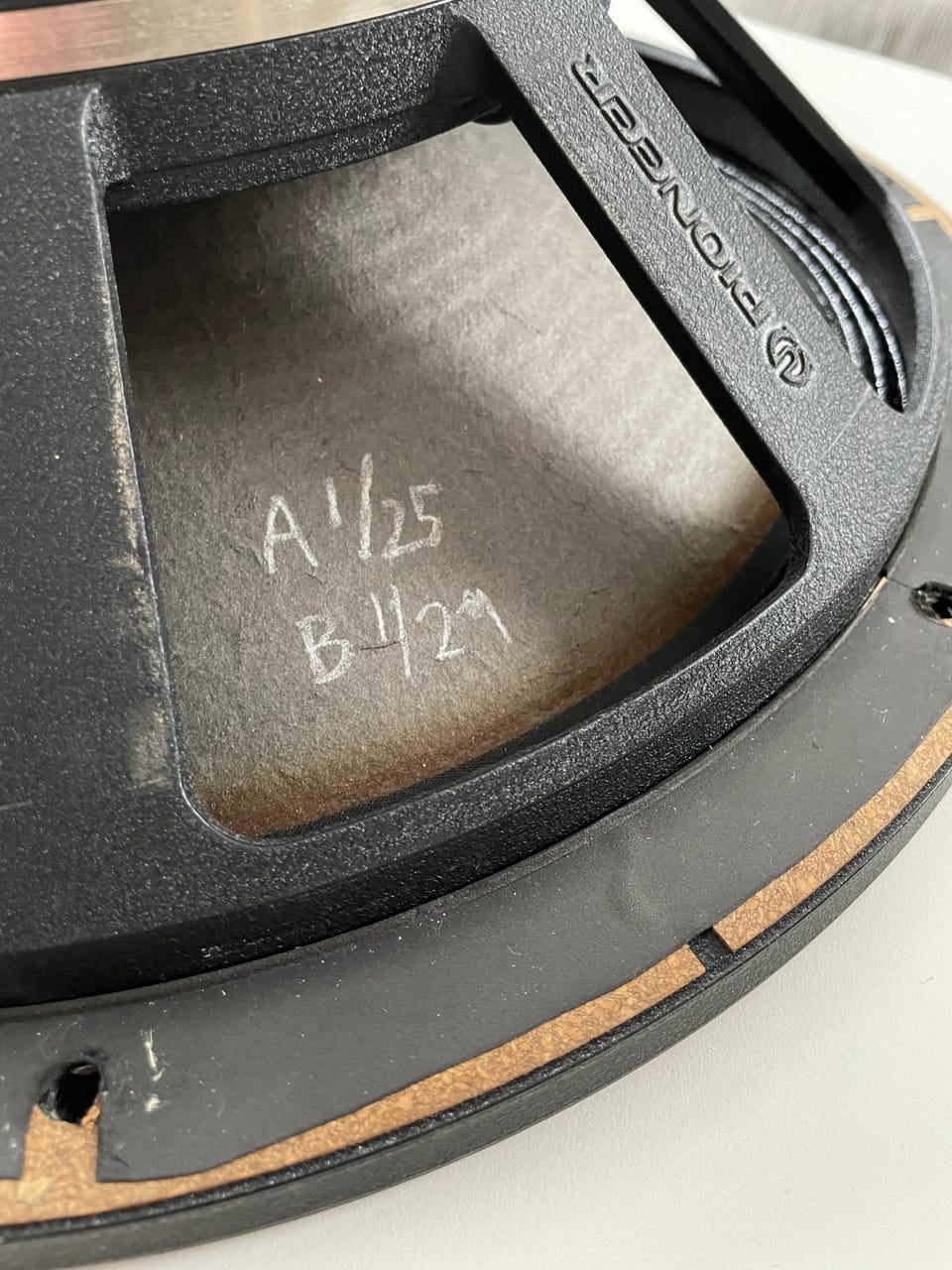

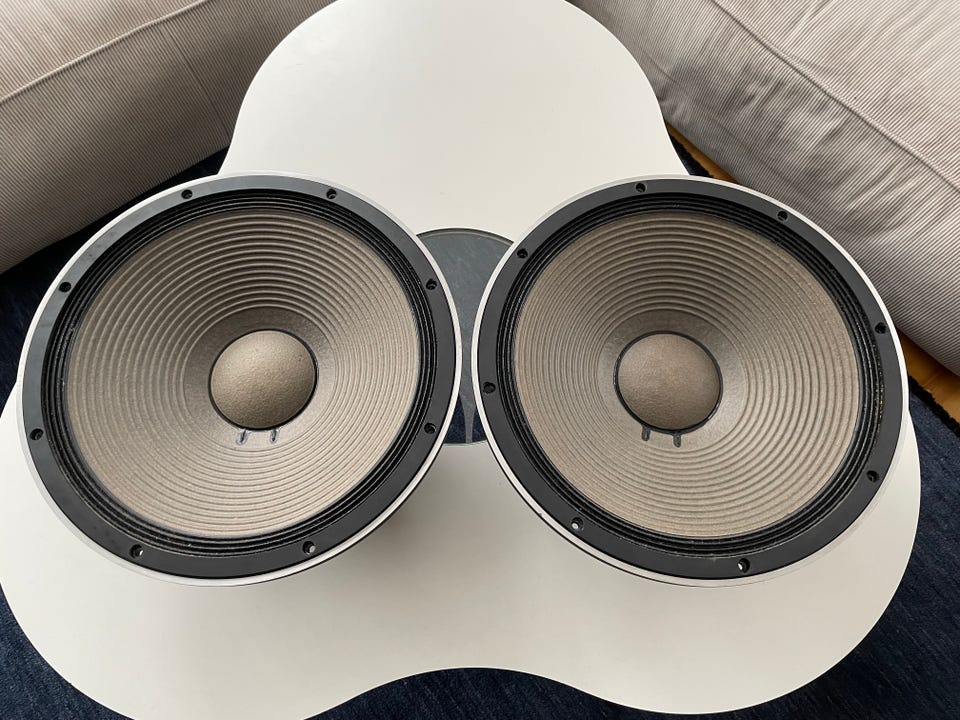

TAD 1601A 15’ basser- 1 par
Til salgs
Fiks ferdig
19 000 kr
Frakt fra 179 kr + Trygg betaling 270 kr
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Tilstand: Pent brukt - I god stand
Merke: Pioneer
Unike klassikere-Sjeldent tilgjengelig! Selges kun grunnet at jeg har gått en annen vei.
Om du får tak i nye koster de fort 30k stk.
Kjøpte de i 2019, jeg kom tilfeldigvis over dette settet og kastet meg på! Da lå de pent på en hylle i varmt mørkt rom, der hadde de ligget siden han hadde kjøpt de i Danmark på 80 tallet nye. Jeg har spilt på de siden, vanvittig artikulert, varm mellomtone og bassen❤️ den er deilig artikulert, microdynamikk til tusen og gå heeelt ned i riktig tunet kasse.
Disse er regnet blandt det absolutt beste av 15 elementer noensinne. De trenger minimum 100L kasse, tuning av port rundt 30hz. Perfekt i en toveis med horn. Bare å google om du ikke kjenner disse fra før.
Disse perlene sendes HELST ikke, de BØR hentes hos meg! Om disse sendes er dette fult og helt på kjøpers ansvar. PAKKER SVÆRT GODT!
Kun seriøse henvendelser. Oppgjør på Vips.
https://www.technicalaudiodevices.com/archived-product/archived-hf-lf/
Type 40 cm Cone Woofer
Voice coil impedance 8 Ω
Lowest resonance frequency 28Hz
Playback frequency band 28 Hz to 1 kHz
Rated input 150W
Max Input 300W
Output sound pressure level 97dB/W/m
Equivalent Mass (infinite baffle) 117gr
Qo 0.31
Total flux 260,000maxwell
Magnetic flux density 11,800gauss
Baffle opening 352mm
Mounting Dimensions 370 mm (8-hole Type)
External dimensions Diameter φ 400x Depth 167 mm
Weight 11kg
Attachment 8 mounting screws (M5x40)
Flathead x8
Nut x8
Grain Nut x8
Sealed Packing (1/4) x4
Sold Separately Repair Diaphragm Assay DP-1601a
(¥ 31,000 (around 05), ¥ 22,000 (around 1999))
TAD/Exclusive TL-1601a 40cm woofer x 2 * VG+++
TAD/Exclusive EL-1601a 40cm woofer unit x 2 * VG++
It was manufactured in 90s year and become Japanese honor, this is perfect for people who like to make horn system.
A typical 40cm cone woofer unit from TAD (Technical Audio Devices). It is also used in the model 2401twin and model 2402 released by Pioneer under the Exclusive brand.

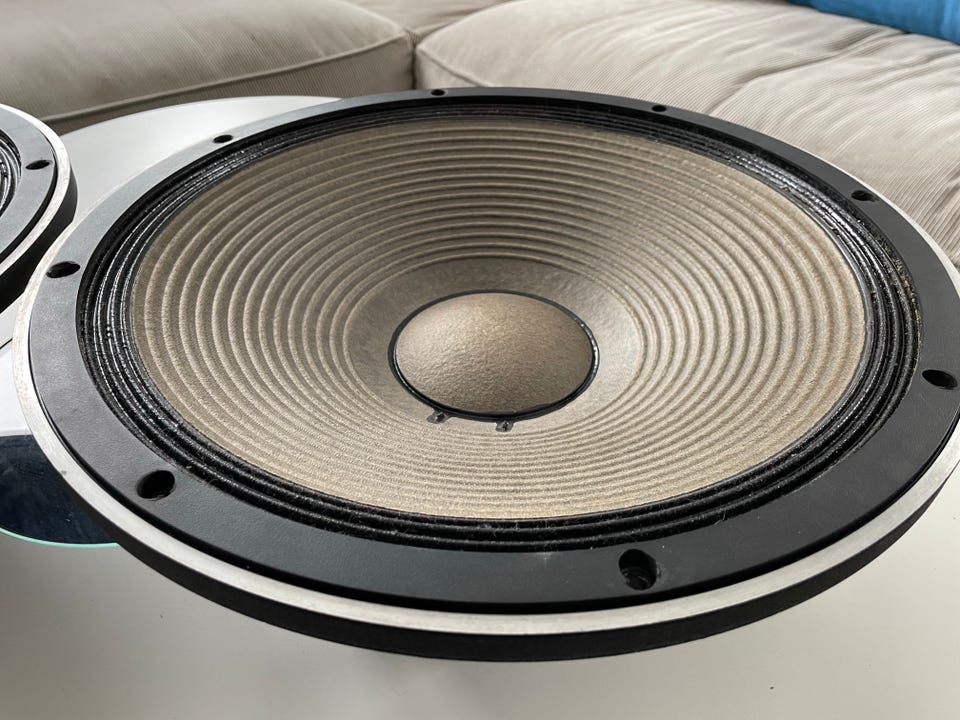

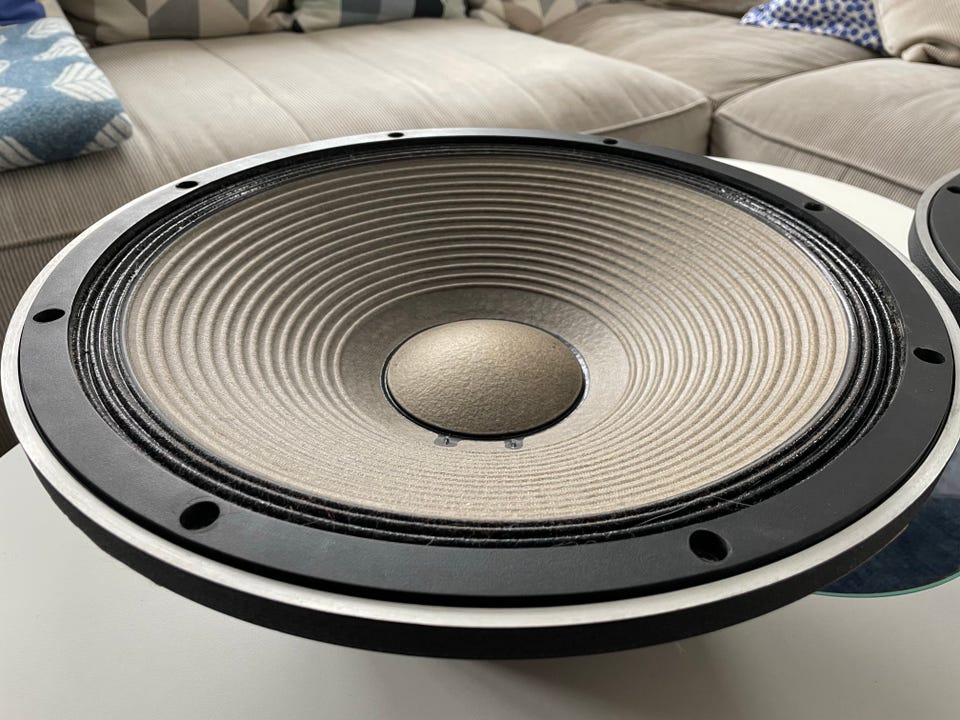

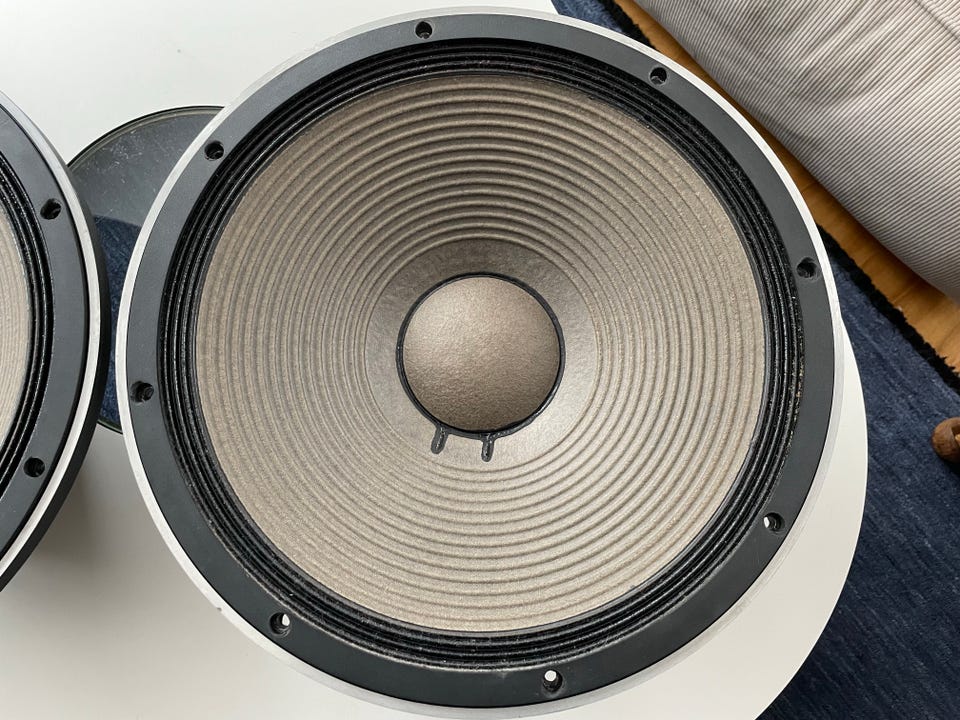

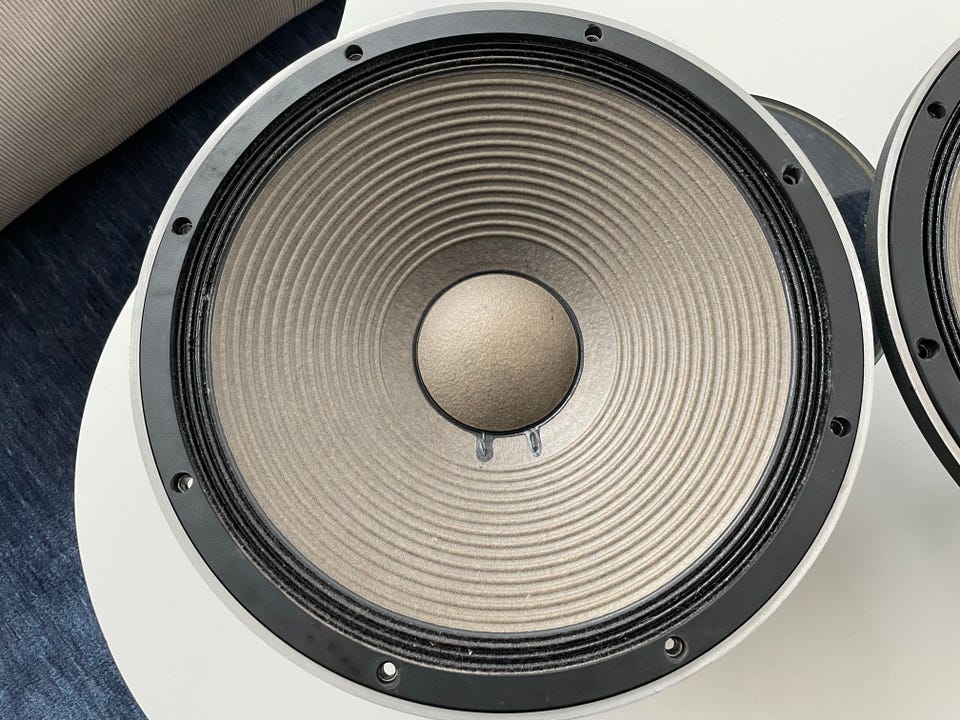

The diaphragm is made of wood pulp, which has a natural sound, and is subjected to a special aging process to make it strong and almost resistant to deterioration, and has the characteristic of not losing its strength due to large inputs. In order to obtain the durability essential for professional use, the DRS (Dynamic Response Suspension) concept is adhered to, and the crosstalk of the vibration support system is sufficiently set, while ensuring high stability against lateral vibration, etc. In addition, the vibration support system, which greatly affects the response and resolution of the reproduced sound, has been thoroughly examined, and the initial sensitivity and input-to-amplitude linearity have been greatly improved.

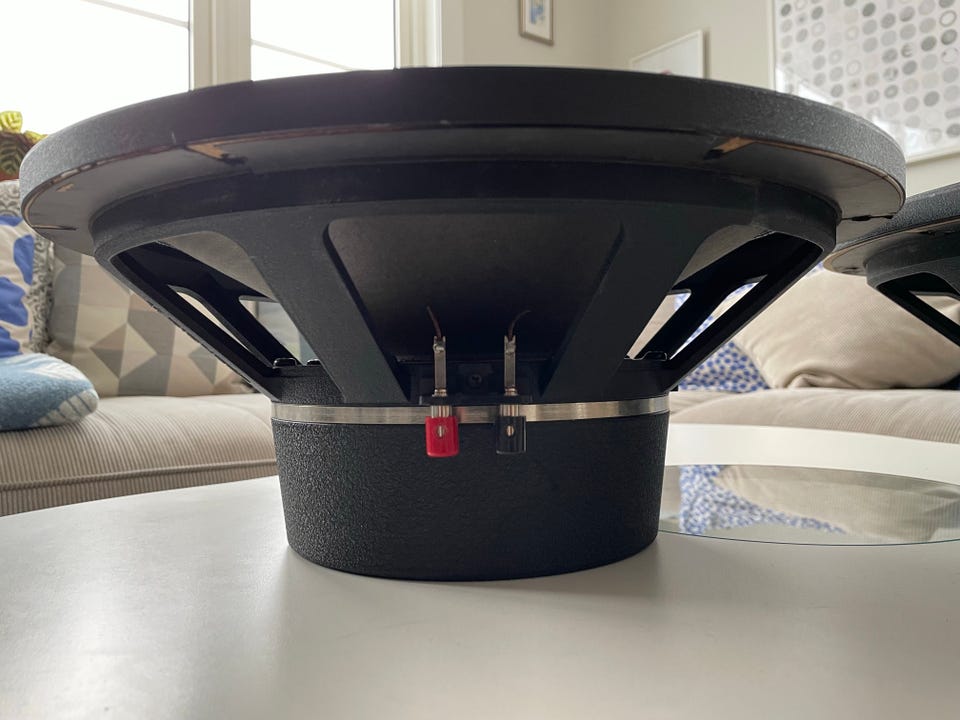

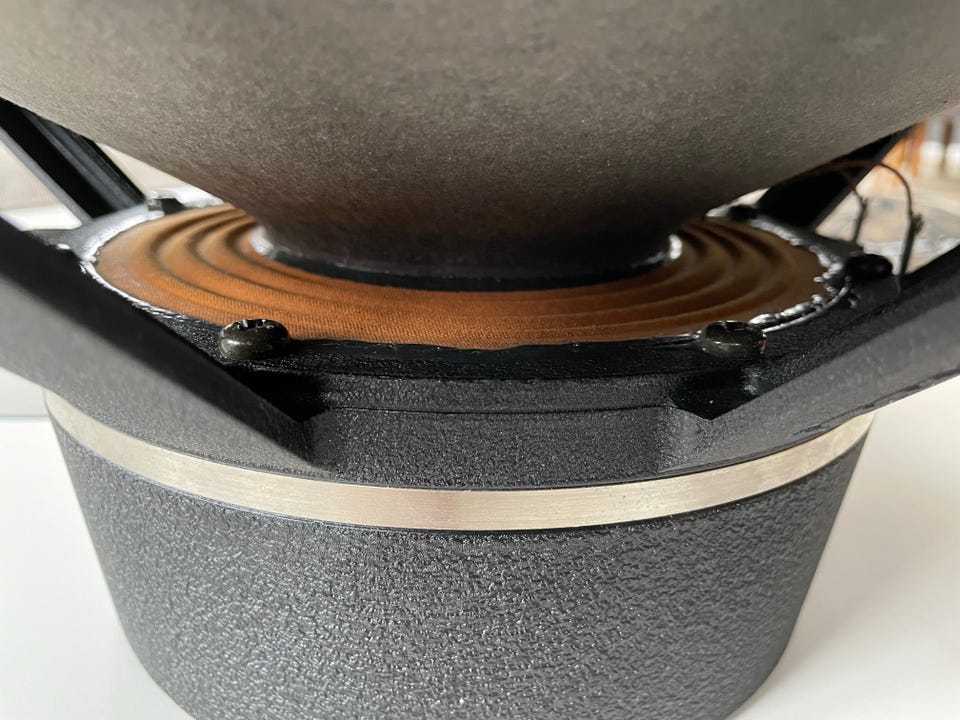

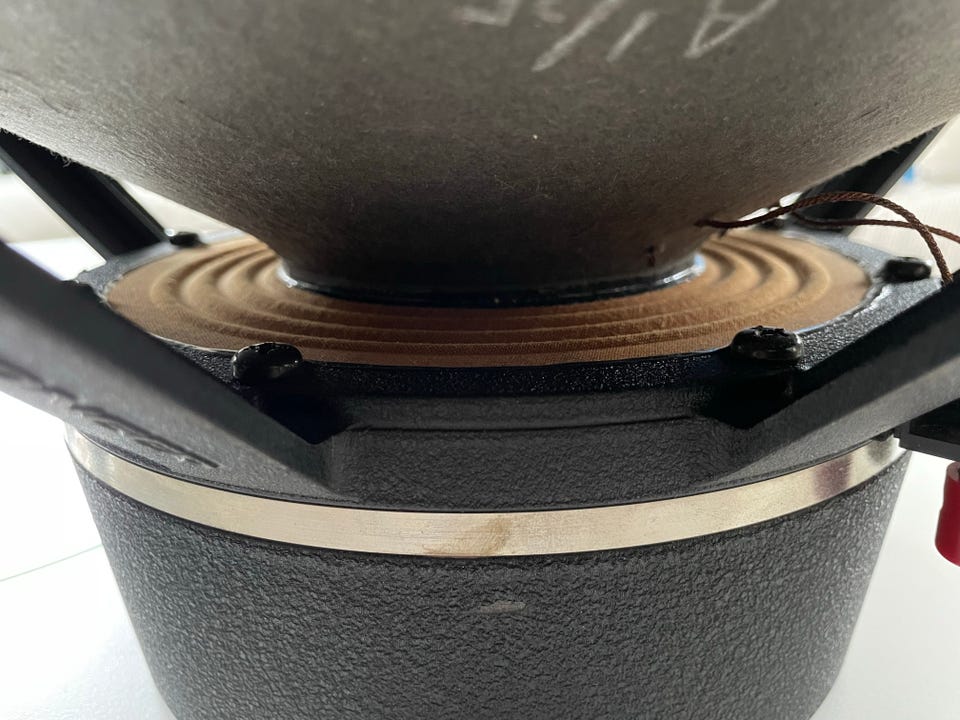

The magnetic circuit uses an alnico magnet, which keeps distortion across the entire frequency range at a low level. By adopting an edgewise voice coil and using the aluminum die-cast frame and magnetic circuit itself as a heat sink, it shows stable performance even for long periods of use.
Voice coil impedance 8Ω Minimum resonance frequency 28Hz Playback frequency range 28Hz～1kHz Rated input 150W Maximum input 300W Output sound pressure level 97dB/W/m Equivalent mass (infinite baffle) 117gr Qo 0.31 Total magnetic flux 260,000maxwell Magnetic flux density 11,800gauss Baffle opening 352mm Mounting dimensions 370mm (8-hole type) External dimensions Diameter φ400 x depth 167mm Weight 11kg Included Mounting screws (M5x40) x8 Flat washers x8 Nuts x8 Metal nuts x8 Sealing gaskets (1/4) x4
$1,800.00
