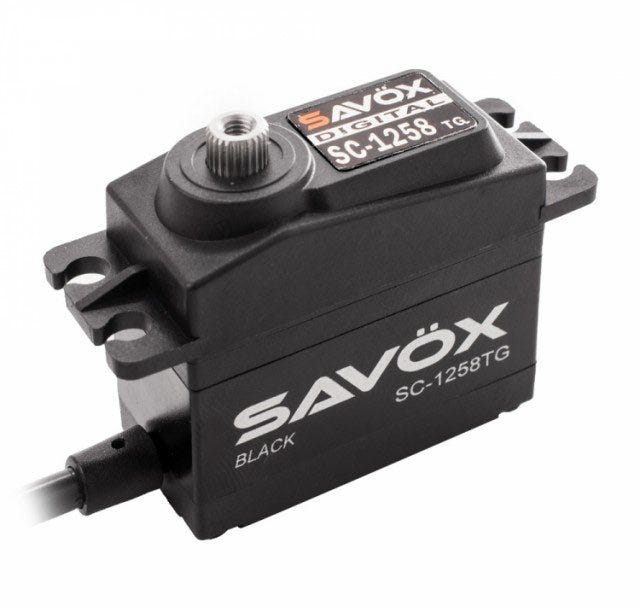

Savöx SC-1258TG servo
Til salgs
550 kr
Beskrivelse av varen
Tilstand: Helt ny - Uåpnet/med lapp
2 stk Savöx SC-1258TG servos selges..
Pris oppgitt pr stk. ikke alle!
Features:
Extremely strong titanium gears ensure long-life, durability and light weight
Sleek black design with laser etching and a shorter 200mm black lead wire
Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
Aluminum middle case allows for cooler operating temperatures
Specifications:
Torque @ 4.8V: 9.6kg/cm
Torque @ 6V: 12kg/cm
Speed @ 4.8V: 0.10 sec/60 deg
Speed @ 6V: 0.08 sec/60 deg
Dimensions L x W x H: 40.8 x 20.2 x 37.2mm
Weight: 64g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
