ELECRAFT K3S
Til salgs
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Tilstand: Pent brukt - I god stand
Vurderer om jeg skal selge eller eventuelt bytte min K3s i annen radio.
Litt om radioen

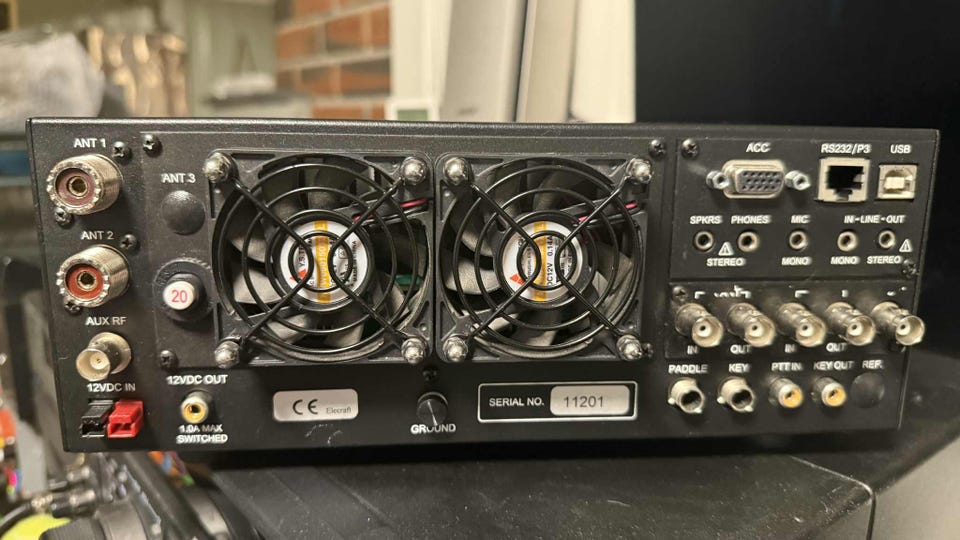

100W 160-6m, serienummer 11201
Det er mye options installert i denne og velger å ramse opp noe her:
KRX3A KRX3 Subreceiver
KSYN3A på begge mottakere
KBPF3A - General Coverage RX Band-pass Filters
KAT3 -100W ATU
KPA3A- 100W PA

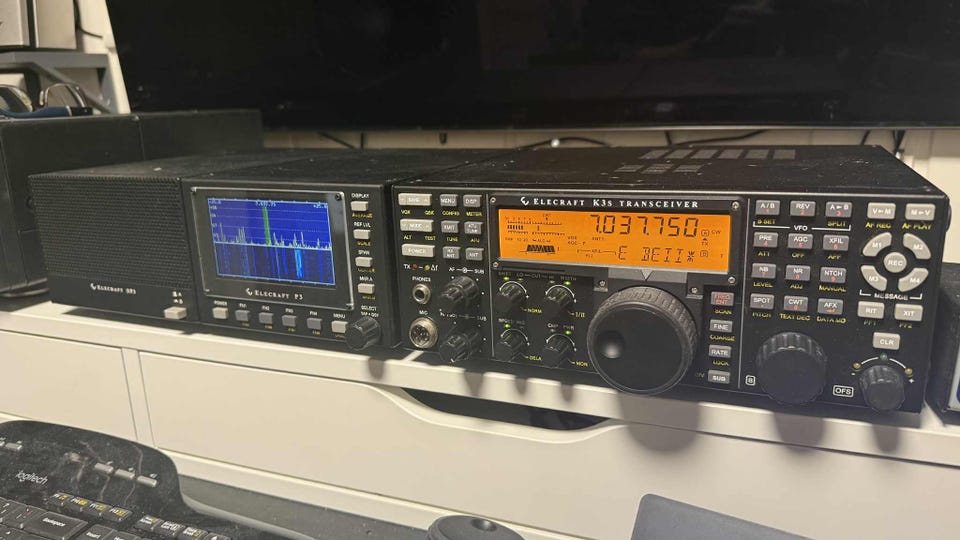

P3 Panadapter med P3SVGA installert
SP3 Speaker

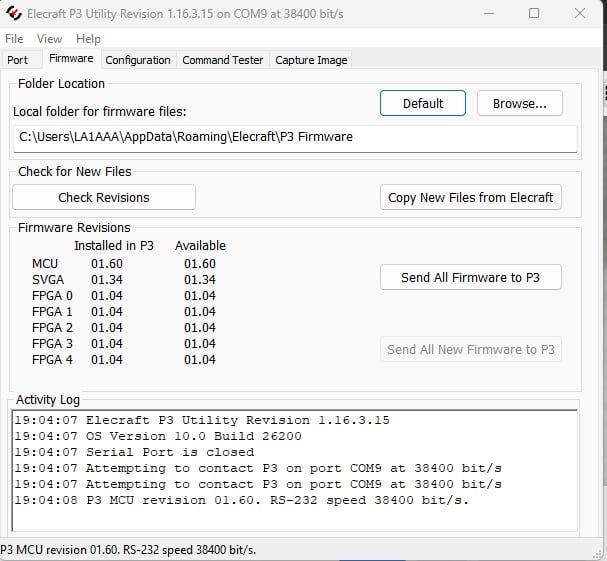

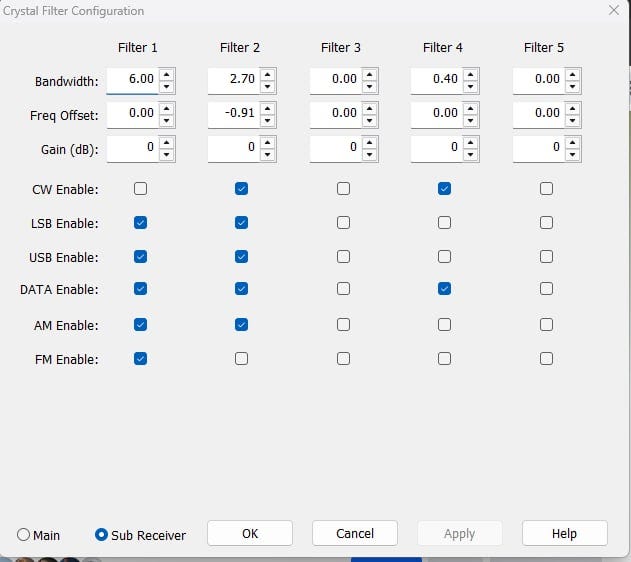

Når det gjeller installerte filter så har jeg tatt noen screenshots fra software som viser hva som er installert i hver mottaker del.
Medfølger strømkabel og noe dokumentasjon.
Mikrofon medfølger ikke
Det ble byttet utgangstransistorer på denne i høst.
OBS HØY PRISKLASSE, bud under 50000,- blir ikke besvart.
--------------------------------------------------------------------
Her er tekst fra produsenten sin hjemmeside elecraft.com-
STANDARD FEATURES
160-2 meter all-mode coverage (2 meters with K144XV option) (ikke installert)
Superhet/SDR architecture with narrow ham-band filtering
High-contrast, full-custom LCD with alphanumeric text display
100-W or 10-W (upgradeable) models
32-bit I.F. DSP (dual DSPs with sub receiver installed)
Built-in PSK/RTTY decode/display; send data using CW keyer paddle
High performance, low-noise synthesizer with 1-Hz tuning
All radio firmware may be updated with the K3 Utility software
-
RECEIVER
Optional sub receiver with performance identical to main receiver
2nd preamp for 12-6 m weak-signal work; 3 attenuator levels (5/10/15 dB)
RX ANT in/out jacks included
Optional general-coverage band-pass filters (KBPF3A); allows receive coverage down to 100 kHz, 0.5-mW transmit on 630-m band (472 kHz)
Optional crystal roofing filters as narrow as 200 Hz; DSP filters to 50 Hz
CW audio peaking filter (APF)
Synchronous AM receive or envelope detection
Easy-to-use Shift/Width/HiCut/LoCut w/ DSP passband display
Automatic and manual notch filtering; adjustable noise reduction
8-band graphic equalizer with separate CW/voice settings
Hardware and DSP noise blankers with individual level controls
Center tuning indicator for CW and data modes
-
TRANSMITTER
Adjustable output, 0.1 to 100 W+ (K3S/100) or up to 10 W+ (K3S/10)
Rugged, SWR-protected finals; dedicated PA circuit breaker
DSP I.F. speech processor with noise gate for maximum DX punch
Dual 4-speed fans in K3S/100
Fast, silent, PIN-diode T-R switching – no relays
8-band equalizer tailors mic audio to your voice and microphone
-
Additional Features
Includes both USB and RS232 ports; Using USB port eliminates need for PC sound card and line-level audio cables (line in/out jacks still included)
K144XV option adds 144-148 MHz, 10W, all-mode operation
Transverter in/out jacks included; 9 transverter band displays
Internal CW keyer with message buffers; voice messages with KDVR3
User ‘macros’ automate often used sequences, such as custom SPLITs
100 general-purpose VFO memories and 4 “quick memories” per band (plus a free memory editor utility for use on your computer)
--
OG tilslutt noen søkeord: Amatør radio, amatørradio, icom, yaesu, kenwood,flexradio,acom, palstar, spe, expert, tentec
