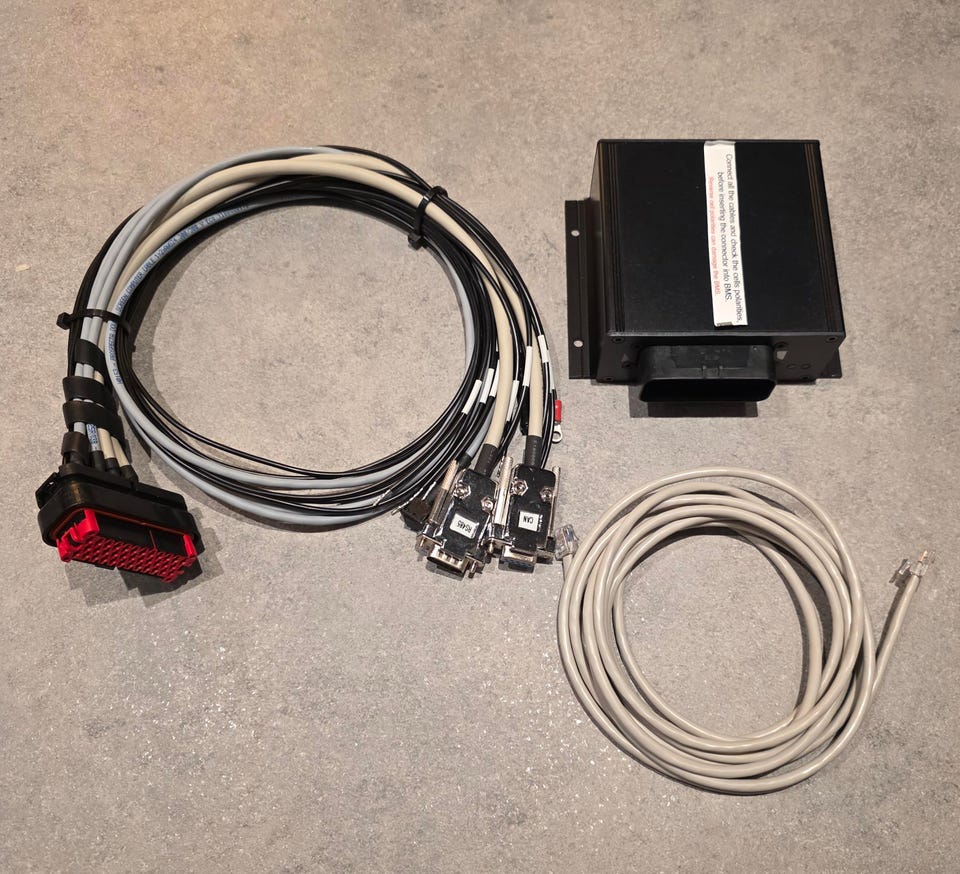

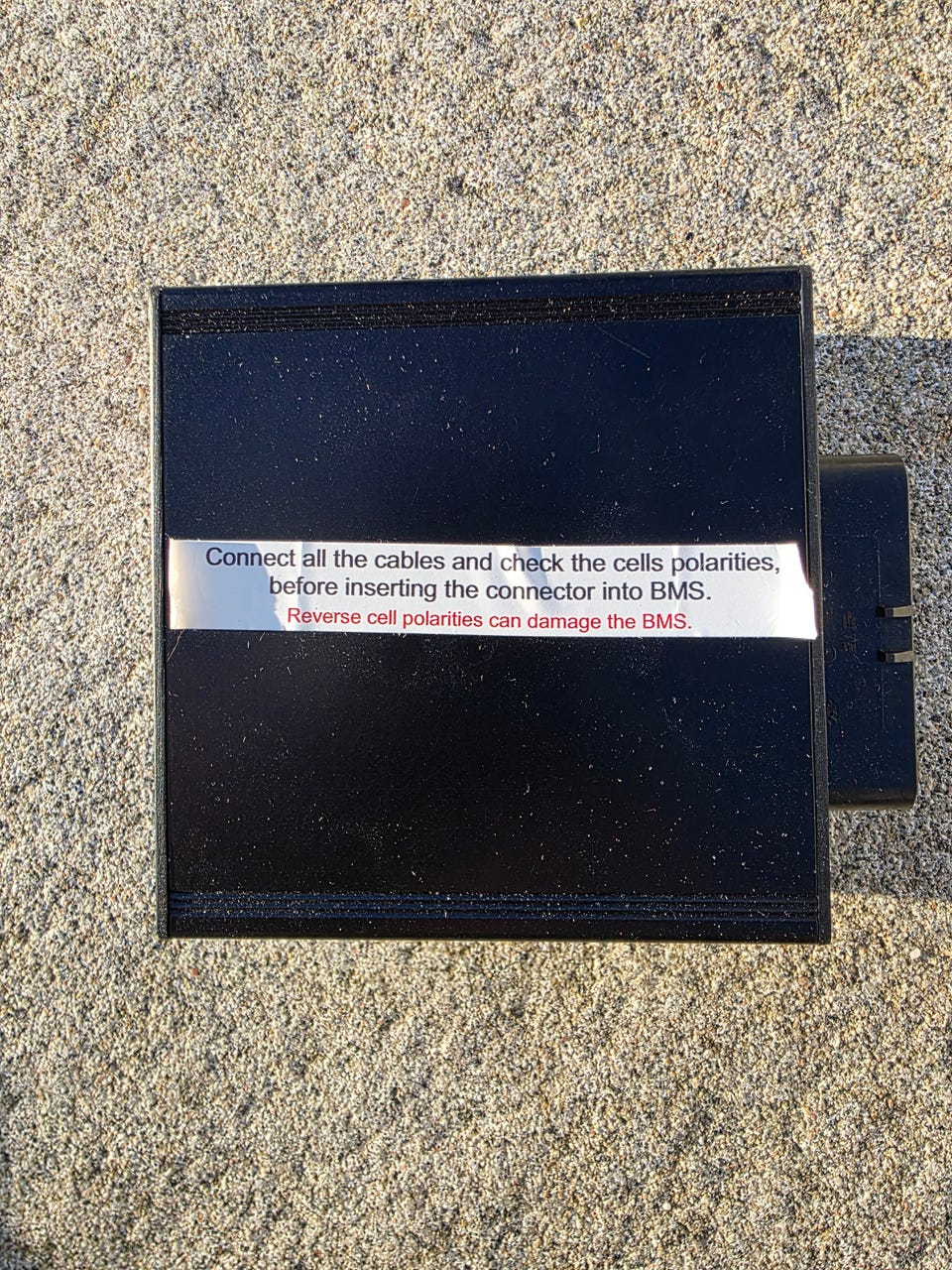

REC Aktiv 4S for 12V system. Victron inkl kabel
Til salgs
Frakt fra 39 kr + Trygg betaling 193 kr
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Tilstand: Som ny - Ikke synlig brukt
Nypris kr 4914,- Selges kr 3750,.
Aktiv BMS for 4 battericeller, Victron kompatibel
RECs aktive BMS for 4 celler koblet i serie, vil gi aktiv bi-directional balansering. Denne BMS-en er velprøvd, og vi på Farco har erfaring med bruk av den siden 2015. Dette betyr at den står i mange anlegg og er gjennomtestet. At den er aktiv gjør at den har stor kapasitet. Fra 2019 leverte vi denne i en utgave som er Victron kompatibel. Dette gjør at BMS styrer ladespenning og styrke, og fungerer meget godt med Victron produkter som kommuniserer via GX løsning med VE.BUS
Tekniske data:
Li-PO, LiFePO4, LiFeYPO4, LiCoO2, LiMnNiCo and LiMnO4 Lithium-Ion chemistry
4 series connected cells per unit
high efficiency 2 A bi-directional active balancing (pack to cell and cell to pack)

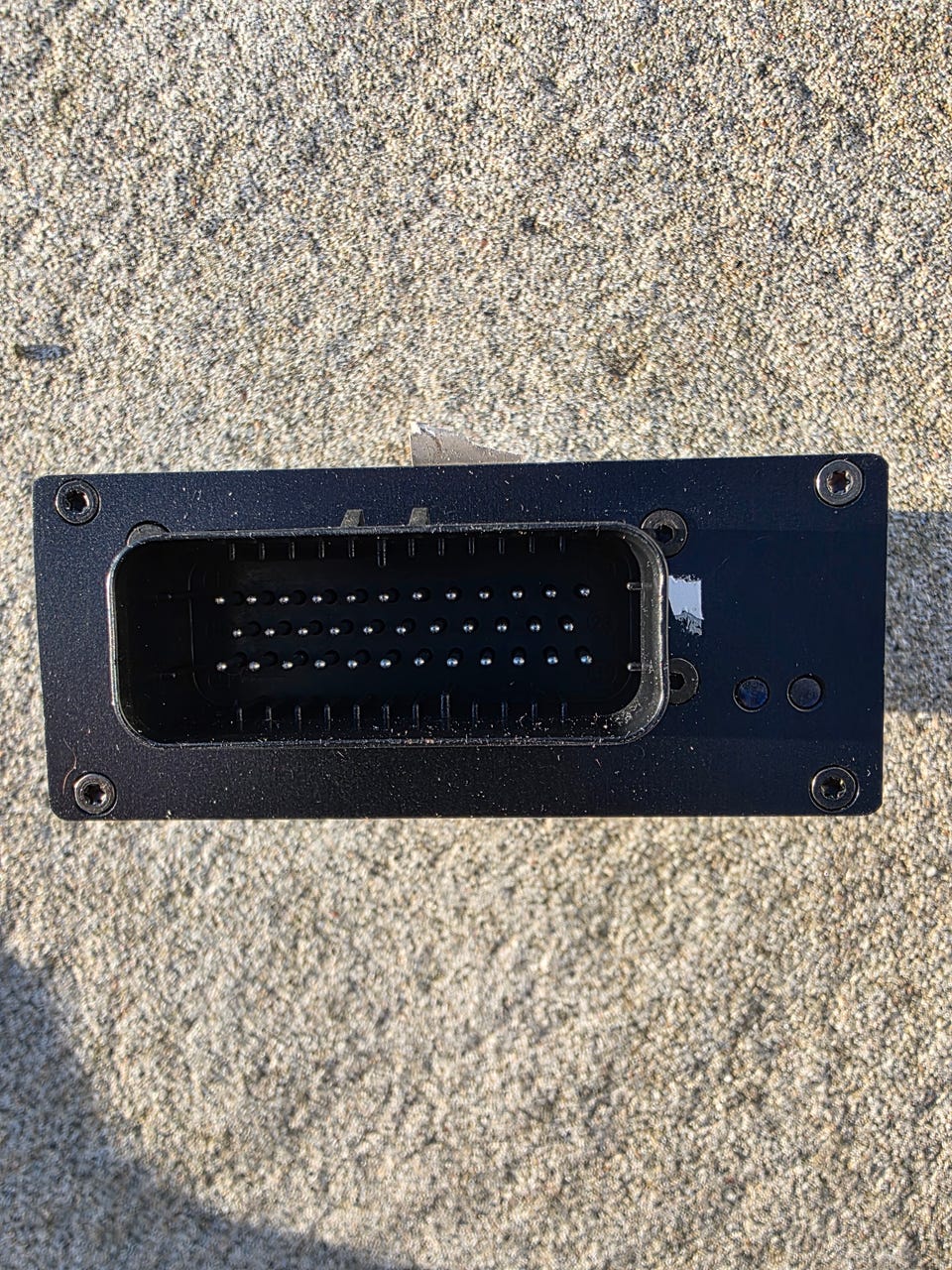

IP65 protection enclosure, AMP 35 pin water resistant connector
2 ? 5 V measuring range, 2 mV accuracy
up to 2 digital temperature sensors
shunt current measurement
robust and small design
galvanically isolated RS-485 and CAN communication protocol
two programmable fused relay output
two programmable fused digital output
ON/OFF switch
LED and buzzer status indication
bootloader
error LED + buzzer indicator
PC user interface for changing settings, data-logging and firmware update
compatible with REC LCD touch display for monitoring
also compatible with Victron inverters for solar applications
Microcontroller:
low power microcontroller RTC
custom made software with bootloader for remote firmware update
60 mW self power consumption with disabled CAN and all outputs
RS - 485 communication:
galvanically isolated RS-485 communication
Slave configuration
RS-485 driver primary side supply is activated with Master connection to save energy consumption
fully compatible with REC LCD touch display and PC user interface BMS Master control
Active Balancing:
2A cell equalizing with active balancing with synchronous flyback bi-directional energy transfer: cell to pack and pack to cell
top side and bottom side balancing prolong the cycle duration due to the weakest cell
Outputs:
two fused relay outputs with NO and NC pins
two fused galvanically isolated/non-isolated digital outputs with PWM option
Galvanically Isolated CAN:
galvanically isolated CAN
100, 125, 250, 500, 1 MHz bit-rate selection
message programming
disable option
Complete wiring of ABMS connector:
5 cells wires (l = 1m)
relays, digital output wires (l = 0.5m)
RS485 cable (l = 0.5m)
CAN cable (l = 0.5m)
remote ON/OFF switch (l = 1m)
ABMS connector
Dimensions:
width with mounting pads = 135 mm
width = 105 mm
length with connector = 111 mm
length = 104 mm
height = 44 mm
connector width = 59.5 mm
hole diameter = 4.5 mm
We suggest M4 screws for mounting.
