ASUS ROG STRIX Z790-E GAMING WIFI Hovedkort
Til salgs
Fiks ferdig
3 500 kr
Frakt fra 39 kr + Trygg betaling 192 kr
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Tilstand: Pent brukt - I god stand
Type: Hovedkort

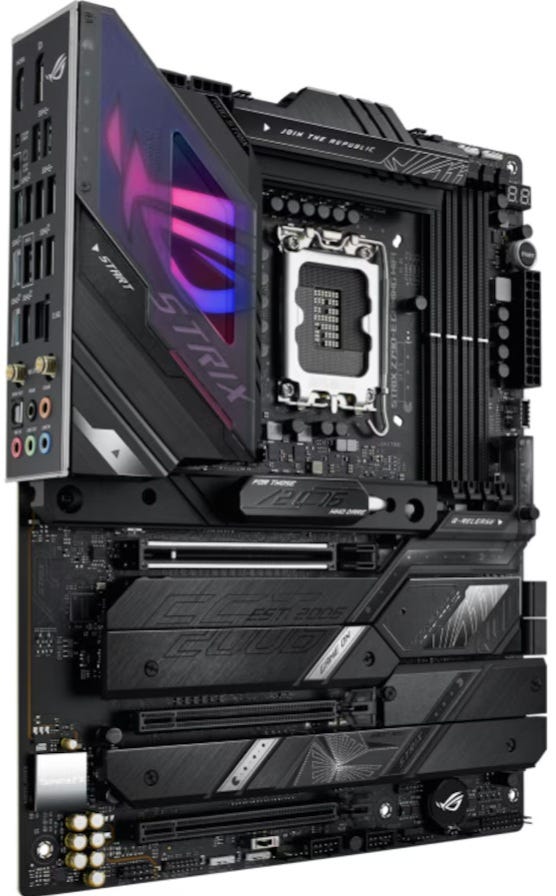

ASUS ROG Strix Z790-E GAMING WIFI
Kjøpt på Komplett i Januar 2024 (nypris 6990,-)
Spesifikasjoner:
Socket: LGA1700 (Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold)
Minnetype: DDR5 x 4 (Maksimalt 192GB)
Selger også en Intel i9-14900KS cpu (7000,- kr, ny i uåpnet eske), hvis begge ønskes kjøpt kan lavere samlet pris vurderes.
Utfyllende spesifikasjoner for hovedkortet:
========================
CPU
========================
- Intel® Socket LGA1700
Supports:
- Intel® Core™ 14th Gen
- Intel® Core™ 13th Gen
- Intel® Core™ 12th Gen
- Intel® Pentium® Gold
- Intel® Celeron®
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0**
* CPU support list: www.asus.com
** Turbo Boost Max 3.0 depends on CPU type
========================
CHIPSET
========================
- Intel® Z790 Chipset
========================
MEMORY
========================
- 4 x DIMM slots
- Max 192 GB
- DDR5 (Non-ECC, Unbuffered)
Supported speeds:
7800+(OC), 7600(OC), 7400(OC), 7200(OC), 7000(OC),
6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC),
5800(OC), 5600, 5400, 5200, 5000, 4800
- Dual Channel architecture
- Intel® XMP support
- OptiMem II
**** DDR5 supports On-Die ECC
========================
GRAPHICS
========================
- 1 x DisplayPort
- Max 8K @ 60 Hz (DP 1.4)
- 1 x HDMI®
- Max 4K @ 60 Hz (HDMI 2.1)
* Output depends on CPU graphics
========================
EXPANSION SLOTS
========================
CPU (12th/13th/14th Gen):
- 1 x PCIe 5.0 x16
Z790 Chipset:
- 2 x PCIe 4.0 x16 (x4 mode)
Notes:
- PCIe bifurcation table: asus.com/support
- Using M.2_1 reduces PCIe 5.0 x16 to x8
========================
STORAGE
========================
Total:
- 5 x M.2 slots
- 4 x SATA 6 Gb/s
CPU controlled:
- M.2_1 (PCIe 5.0 x4) 2242 / 2260 / 2280 / 22110
- M.2_2 (PCIe 4.0 x4) 2242 / 2260 / 2280
Chipset controlled:
- M.2_3 (PCIe 4.0 x4) 2242 / 2260 / 2280
- M.2_4 (PCIe 4.0 x4) 2242 / 2260 / 2280
- M.2_5 (PCIe 4.0 x4 + SATA) 2242 / 2260 / 2280
- 4 x SATA 6 Gb/s
- Intel® RST RAID support:
PCIe RAID 0/1/5/10
SATA RAID 0/1/5/10
========================
ETHERNET
========================
- Intel® 2.5 Gb Ethernet
- ASUS LANGuard
========================
WIRELESS & BLUETOOTH
========================
- Wi-Fi 6E (2x2, 802.11 a/b/g/n/ac/ax)
Bands: 2.4 / 5 / 6 GHz*
- Bluetooth® 5.3
* 6 GHz availability depends on region
========================
USB
========================
Rear (12 ports):
- 1 x USB 3.2 Gen 2x2 (USB-C)
- 7 x USB 3.2 Gen 2 (6 x Type-A, 1 x USB-C)
- 4 x USB 3.2 Gen 1 (Type-A)
Front (9 ports):
- 1 x USB 3.2 Gen 2x2 (USB-C, up to 30 W PD)
- 2 x USB 3.2 Gen 1 headers (4 ports)
- 2 x USB 2.0 headers (4 ports)
========================
AUDIO
========================
- ROG SupremeFX 7.1
- ALC4080 CODEC
- 120 dB SNR playback / 113 dB SNR recording
- Up to 32-bit / 384 kHz
- Savitech SV3H712 AMP
- Optical S/PDIF out
- Gold-plated jacks
- Audio shielding and capacitors
========================
BACK PANEL I/O
========================
- USB:
- 1 x USB 3.2 Gen 2x2 (USB-C)
- 7 x USB 3.2 Gen 2
- 4 x USB 3.2 Gen 1
- Video:
- 1 x HDMI
- 1 x DisplayPort
- Network:
- Wi-Fi module
- Intel® 2.5 Gb Ethernet
- Audio:
- 5 x audio jacks
- 1 x Optical S/PDIF
- Buttons:
- BIOS FlashBack
- Clear CMOS
========================
INTERNAL CONNECTORS
========================
Cooling:
- 1 x CPU Fan
- 1 x CPU OPT Fan
- 1 x AIO Pump
- 5 x Chassis Fan
Power:
- 1 x 24-pin ATX
- 2 x 8-pin CPU
USB:
- 1 x USB 3.2 Gen 2x2 (USB-C, 30 W PD)
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0 headers
Misc:
- 3 x Addressable Gen 2 RGB
- 1 x Aura RGB
- 1 x PCIe Mode Switch
- 1 x Start button
- 1 x Thunderbolt™ / USB4 header
- 1 x Thermal Sensor
- Front Panel Audio
- System Panel header
========================
SPECIAL FEATURES
========================
Power:
- Extreme Engine Digi+
- 5K Black Metallic capacitors
Q-Design:
- M.2 Q-Latch
- PCIe Q-Release
- Q-DIMM
- Q-LED
- Q-Slot
Thermal:
- VRM heatsinks
- M.2 heatsinks (front + backplate)
EZ DIY:
- BIOS FlashBack
- Clear CMOS
- Pre-mounted I/O shield
- ProCool II
- SafeSlot
- SafeDIMM
AURA Sync:
- RGB header
- Addressable Gen 2 headers
========================
FRONT USB-C FAST CHARGE
========================
- USB 3.2 Gen 2x2
- Up to 30 W PD
- 5V / 9V @ 3A
- 12V @ 2.5A
- PD 3.0 compatible
NB: Knappen for å vise hele beskrivelsen har kun en visuell effekt.
