AEON MIRA 7 Lasergraveringsmaskin
Til salgs
48 000 kr
Beskrivelse av varen
Tilstand: Som ny - Ikke synlig brukt

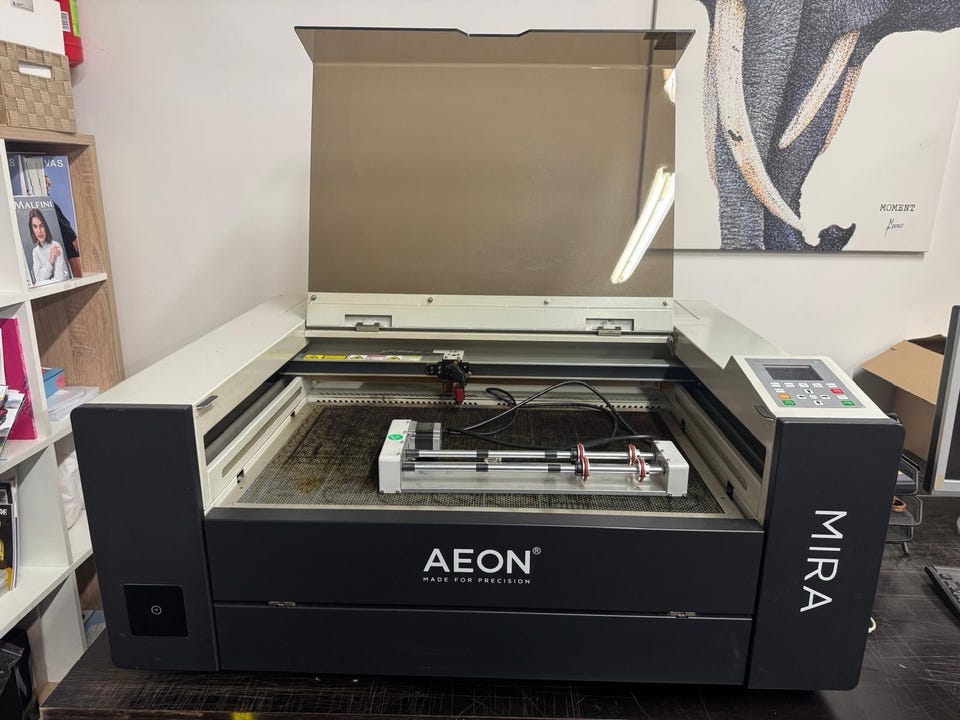

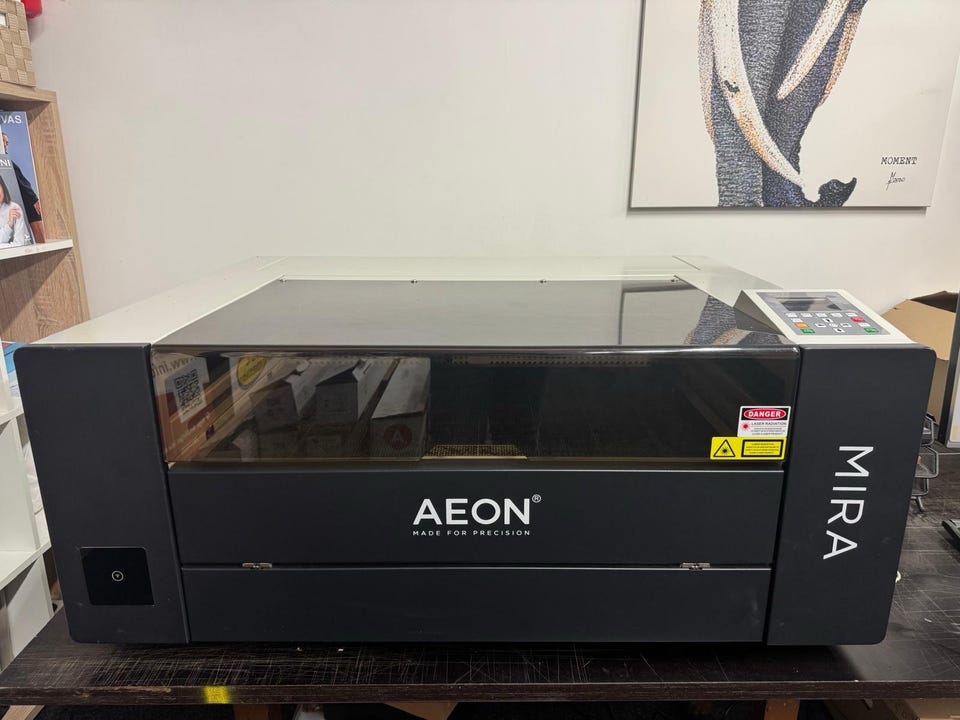

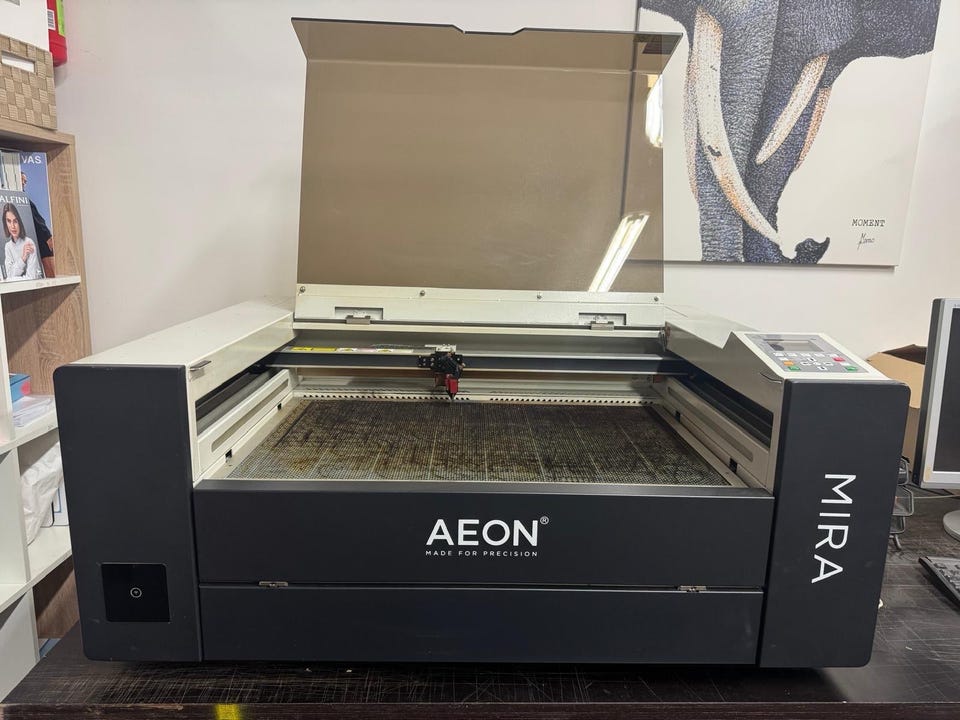

AEON MIRA lasergraveringsmaskin med glassdeksel og kontrollpanel. Egnet for gravering på ulike materialer med presisjon. Enheten har et arbeidsområde for detaljert gravering og justerbar laserstyrke.
Aeon Mira 7 60W CO2 Laser Engraver & Cutter
Who is this machine for?
The Aeon Mira 7 60W is perfect for:
The Aeon Mira 7 60W is a robust and reliable laser machine designed for small businesses, serious makers, and workshops requiring professional results without the footprint of an industrial machine. It balances power, precision, and a user-friendly design.
· Advertising industry for the production of signs and awards, engraving.
· Makerspaces and schools, startups businesses.
· Woodworkers, artists, and crafters creating detailed work.
· Small-scale industrial prototyping and part manufacturing from non-metallic materials.
Technical Parameters & Specifications
Category Specification
Laser Source CO2 Glass Tube
Laser Power 60 Watts (Standard)
Work Area (Engraving/Cutting) 700x450mm
Machine Dimensions (WxDxH) Approx. 1880mm x 1040mm x 840mm
Beam Delivery System Fully Sealed Light Path (glass tubes and mirrors)
Motion System Precision Stepper Motors on X and Y axes
Positioning Accuracy ±0.1 mm
Maximum Engraving Speed 600 mm/s
Maximum Cutting Speed 400 mm/s
Minimum Line Width 0.1 mm
Repeat Accuracy ±0.05 mm
Cooling System Closed-Loop Water Cooling (Water pump included; chiller recommended)
Air Assist Integrated Air Pump (included) for cleaner cuts
Control System Ruida RDC6442G / RDC6445S Digital Controller
Software Compatibility RDWorks, LightBurn (highly recommended), CorelDraw via driver
Supported File Formats AI, DXF, PLT, BMP, JPG, JPEG, PNG, DST, etc.
Power Requirements 110V-120V / 220V-240V, 50/60Hz, ~1500W (varies by region)
Weight (Net) Approx. 330 lbs (150 kg)
---
Key Features & Description
1. 60W Laser Power:
· Versatile Performance: The 60W tube provides an excellent balance for both detailed engraving and effective cutting. It can effortlessly engrave wood, acrylic, glass, anodized aluminum, leather, and more. It cuts through materials like 3/8" (10mm) acrylic, 1/4" (6mm) MDF, and 1/4" (6mm).
2. Large 700x450mm Work Bed:
· This generous bed size allows you to process large sheets of material or efficiently batch-process multiple smaller items, significantly boosting productivity for sign-making, personalized gifts, or custom parts.
3. Ruida Digital Controller:
· The heart of the machine. The Ruida controller features a touchscreen for easy operation. Key benefits include:
· User-Friendly Interface: Intuitive menus for setting power, speed, and frequency.
· Job Preview: A "Frame" function outlines your design on the material before starting, preventing misplacement.
· Red Dot Pointer: Precisely shows where the laser will fire.
· Connectivity: Features both USB and Ethernet ports for flexible computer connection.
4. Industrial Construction:
· Built on a welded steel frame, the Mira 7 is stable and minimizes vibration during high-speed operation, which is critical for achieving crisp, clean details. The fully enclosed design with a viewing window and safety interlock switch protects the operator.
5. Superior Software: LightBurn Compatible:
· While it includes RDWorks, the Mira 7 is fully compatible with LightBurn software. LightBurn is considered the industry standard for hobbyists and professionals due to its powerful layout, editing, and control features, making the workflow much more efficient.
6. Comprehensive Safety & Support Systems:
· Air Assist: The included pump blows air directly at the cutting point, reducing flare-ups, preventing flame marks, and resulting in cleaner, sharper edges.
· Water Cooling: A closed-loop system is crucial for maintaining the optimal temperature of the CO2 laser tube, ensuring consistent performance and extending its lifespan. (A dedicated chiller is a highly recommended upgrade for intensive use).
What's Typically Included:
· Aeon Mira 7 60W Laser Machine
· Ruida Control Panel
· 60W CO2 Laser Tube (installed)
· Water Cooling Pump
· Air Assist Pump
· Basic Exhaust Fan (for fume extraction)
· Full Set of Tools and Spare Parts (mirrors, lenses)
· Roller rotary unit
