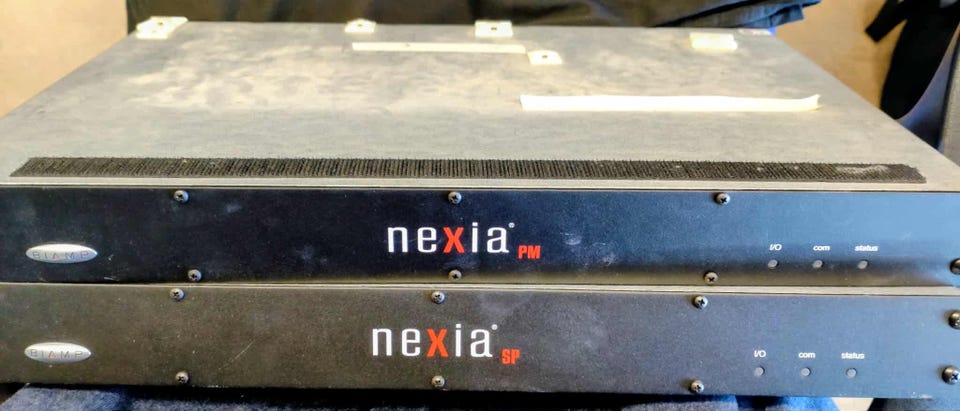

Nexia PM og SP BiAmp Ethernet system
Til salgs
Fiks ferdig
2 490 kr
Frakt fra 99 kr + Trygg betaling 161 kr
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Tilstand: Pent brukt - I god stand

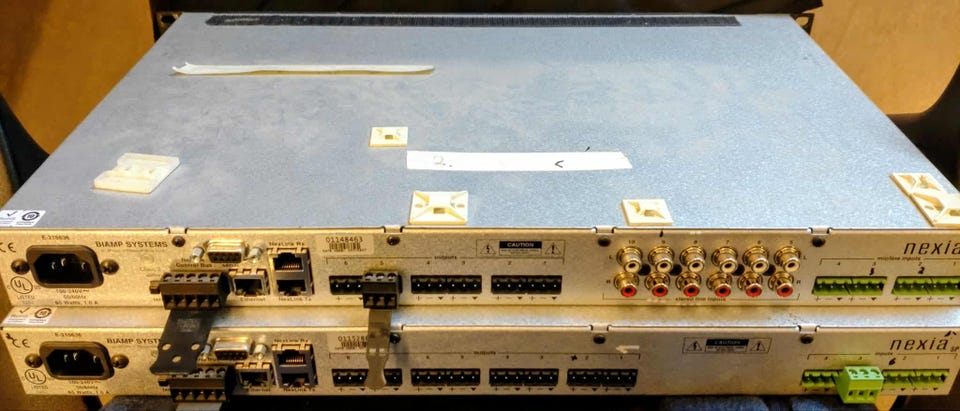

PM Hardware

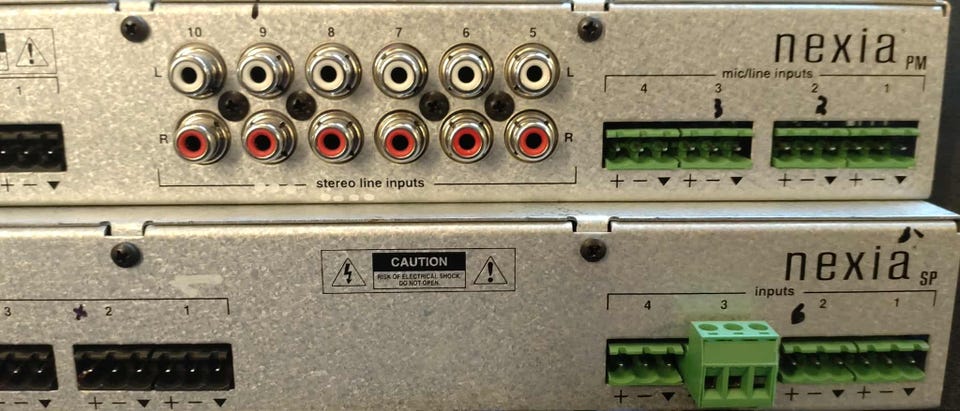

Mic/Line Inputs: These four plug-in barrier strip connectors provide balanced input for microphone or line level signals. For unbalanced input, wire high to (+) and ground to both (image\Ground.gif) & (-). Settings for these inputs are accessed by double-clicking the PM Input 4 Channel block in the Layout.
Stereo Line Inputs: These six RCA jack pairs provide unbalanced input for stereo line level signals. Settings for these inputs are accessed by double-clicking the PM Input (Stereo) 12 Channel block in the Layout.
Outputs: These six plug-in barrier strip connectors provide balanced output of line level signals. For unbalanced output, wire high to (+) and ground to (image\Ground.gif), leaving (-) un-connected. Settings for these outputs are accessed by double-clicking the PM Output (Stereo) 6 Channel block in the Layout.
NexLink: These two RJ45 jacks provide the NexLink Tx (transmit) and Rx (receive) connections. Up to four NEXIA devices may be linked together to share digital audio signals. Tx on one NEXIA device is connected to RX on the next device. NexLink utilizes straight through shielded CAT5 cabling, with a maximum recommended length of 5 meters per cable. When multiple NEXIA devices are placed in the Layout, NexLink blocks allow routing of digital audio between linked devices.
Ethernet: All NEXIA devices use Ethernet, both for system programming and control. Programming is accomplished using the NEXIA software provided with each unit. NEXIA software is for PC computers, with Windows® XP Professiona/Vistal operating system required. The PC computer must have a network card installed, which supports 10/100BaseT Ethernet. A 10/100BaseT Ethernet switch (not hub) is required when networking multiple units (see System Network Considerations). Ethernet utilizes standard CAT5 cabling, which has a specified maximum length of 100 meters. However, Ethernet switches which provide fiber-optic interface can be used to extend the physical distance between units within a network.
Serial Control Port: After initial programming and configuration, NEXIA systems may be controlled by RS-232 or Telnet communications from third-party control systems such as AMX® or Crestron®, using the Serial Control Port. Also, external devices may be controlled via the Serial Control Port, by utilizing Command String blocks within the NEXIA system design.
Remote Control Bus: The Remote Control Bus provides connection for Volume 8, Select 8, Volume/Select 8, Voltage Control Box, and Logic Box external control devices (see Remote Control Bus for more information).
SP Hardware
Inputs: These four plug-in barrier strip connectors provide balanced input for line level signals. For unbalanced input, wire high to (+) and ground to both (image\Ground.gif) & (-). Settings for these inputs are accessed by double-clicking the SP Input 4 Channel block in the Layout.
Outputs: These eight plug-in barrier strip connectors provide balanced output of line level signals. For unbalanced output, wire high to (+) and ground to (image\Ground.gif), leaving (-) un-connected. Settings for these outputs are accessed by double-clicking the SP Output 8 Channel block in the Layout.
NexLink: These two RJ45 jacks provide the NexLink Tx (transmit) and Rx (receive) connections. Up to four NEXIA devices may be linked together to share digital audio signals. Tx on one NEXIA device is connected to RX on the next device. NexLink utilizes straight through shielded CAT5 cabling, with a maximum recommended length of 5 meters per cable. When multiple NEXIA devices are placed in the Layout, NexLink blocks allow routing of digital audio between linked devices.
Ethernet: All NEXIA devices use Ethernet, both for system programming and control. Programming is accomplished using the NEXIA software provided with each unit. NEXIA software is for PC computers, with Windows® XP Professiona/Vista operating system required. The PC computer must have a network card installed, which supports 10/100BaseT Ethernet. A 10/100BaseT Ethernet switch (not hub) is required when networking multiple units (see System Network Considerations). Ethernet utilizes standard CAT5 cabling, which has a specified maximum length of 100 meters. However, Ethernet switches which provide fiber-optic interface can be used to extend the physical distance between units within a network.
Serial Control Port: After initial programming and configuration, NEXIA systems may be controlled by RS-232 or Telnet communications from third-party control systems such as AMX® or Crestron®, using the Serial Control Port. Also, external devices may be controlled via the Serial Control Port, by utilizing Command String blocks within the NEXIA system design.
Remote Control Bus: The Remote Control Bus provides connection for Volume 8, Select 8, Volume/Select 8, Voltage Control Box, and Logic Box external control devices (see Remote Control Bus for more information).
Kr 1000 pr stk
Eller kr 1800 for PM + SP

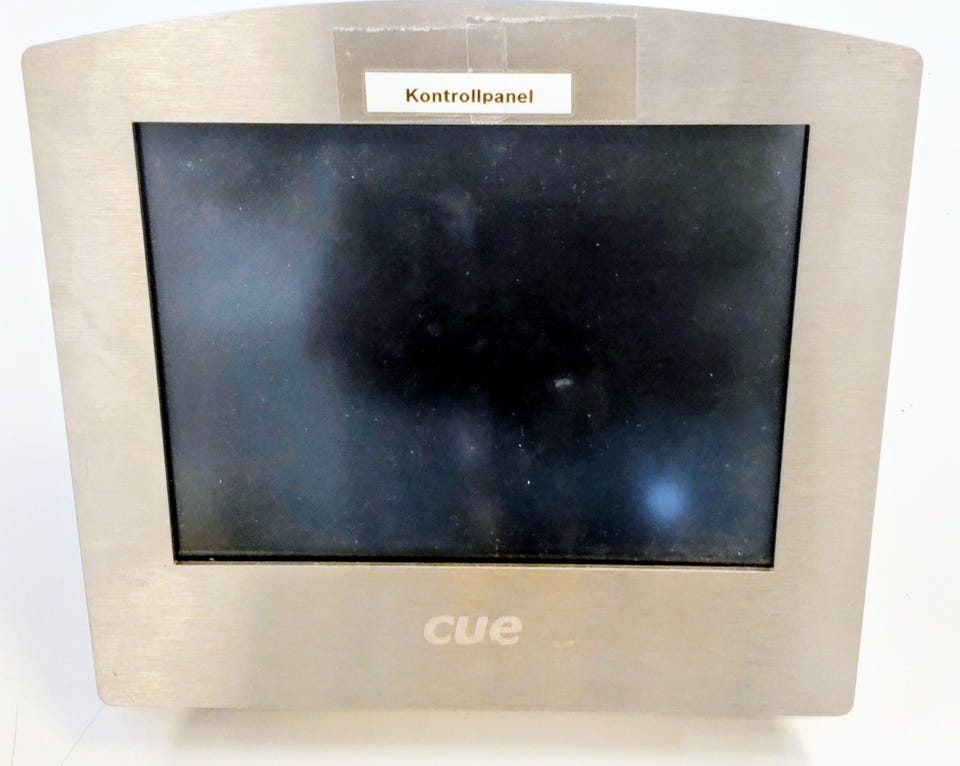

Passende Kontroller; WWW.Cuesystem.com
touchCUE-M. 24VDC
Kr 1500.-
Samlet kr 2500.- for alle 3.
Gi Bud ℹ️🙂
