ARM2SID - Commodore 64

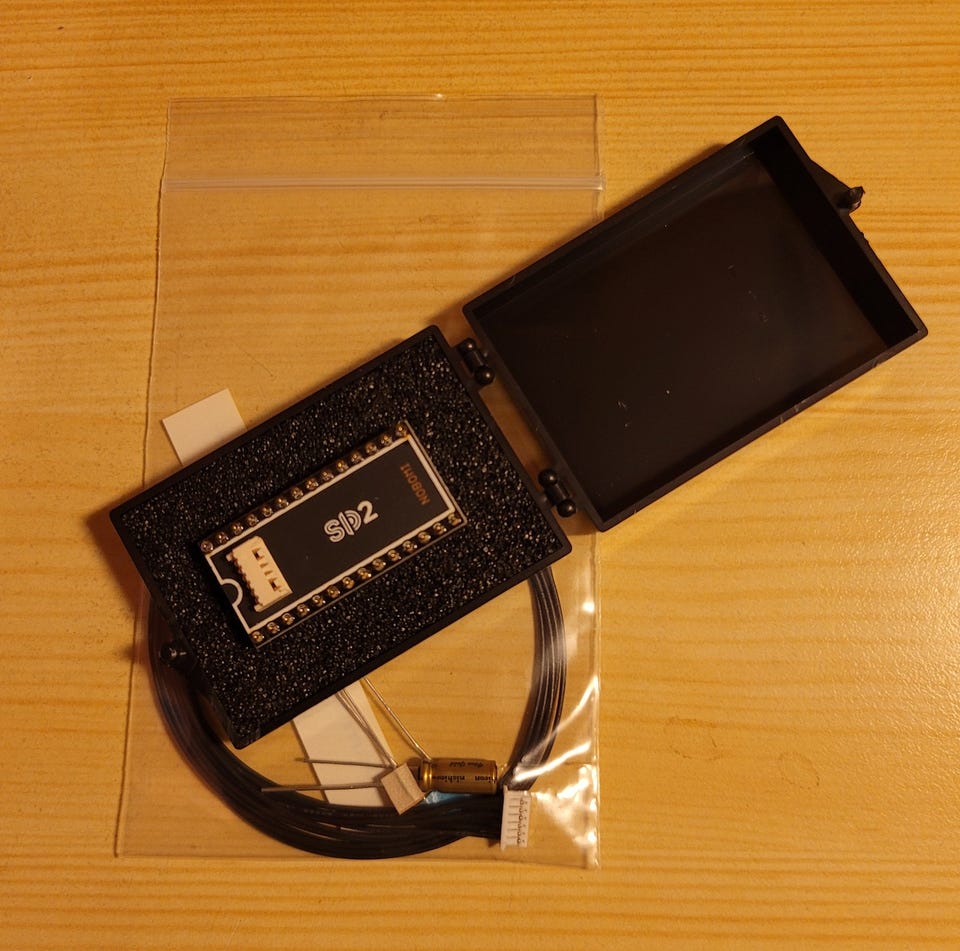

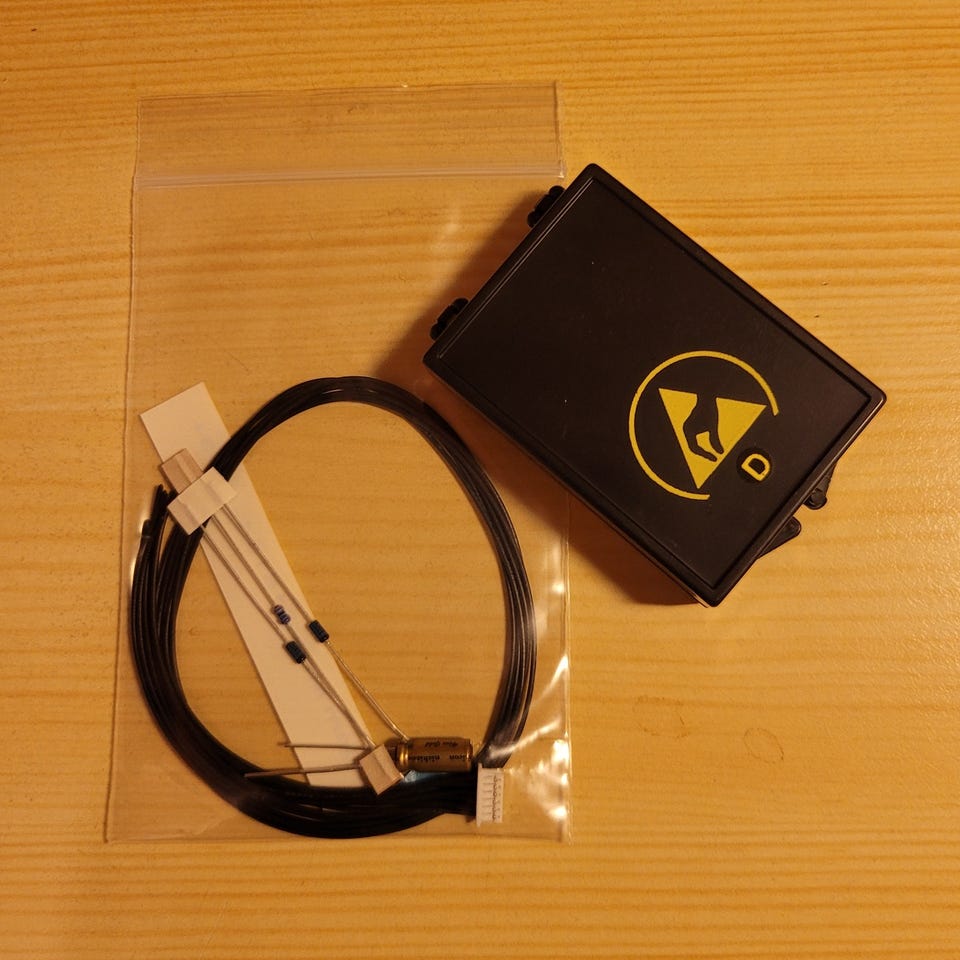

👉 ARM2SID without the second socket, with a 30 cm connector cable + 2 Schottky diodes + pullup resistor. This is the most powerful option that allows you to use all ARM2SID features – 2 SID stereo, 3 SID, SFX, SID + SFX.
👉 You must solder or use another way to connect wires to your computer. It is not difficult, but you need some experience or ask your friend to do it.
Attention. No stereo expansion board is a part of the product. Just the ARM2SID + optional 2nd socket + cable (depends on chosen variant).
ARM2SID +FM
Would you like 2 SID stereo or 3 SIDs? Or FM synthesis?
ARM2SID is a new TWO or THREE SIDs and SFX Sound Expander (OPL FM synthesis) emulator in one DIP28 socket size! You can add the second socket as the second SID if you have stereo adapter or connect wires directly to your Commodore computer.
- up to 12 channels music (two or three SIDs or FM or one SID and FM)!
- for all C64 and C128 boards (please read manual)
- stereo in any combination of SID 6581 or 8580 models
- automatic fall-back to dual mono if second SID is not used
- configuration and upgrades by software utility in C64/C128
What is it ?:
👉 A new replacement of the MOS6581 and MOS8580 used in the Commodore C64. It is minimalistic (in simplicity of circuit and use, not in function and power).
👉 Real "plug & play" solution. Just insert instead of the original SID into the slot and it's done.
👉 It determines (through supply voltages) which chip it replaces and starts the appropriate emulation (it can be changed later in software).
👉 No need to switch the PAL / NTSC version, the circuit uses directly the clock from the computer bus, always synchronous with the C64.
👉 It also emulates analog inputs (joysticks, mouse, etc. - POTX and POTY inputs)
👉 Analog output is sufficiently buffered, it is not necessary to change anything on the computer board for proper operation.
👉 Output sampling frequency is 1/16th bus clock of C64 (approx. 62kHz), real 12bit D/A converter, no pwm.
👉 Filters completely transferred to digital form, emulated by float point arithmetic.
👉 Significantly lower noise level and less interference from the power supply than the original :)
👉 Lower power consumption than the original, but also than all other modern substitutes.
👉 Firmware update possible inside the C64.
👉 A next logical step after succesful ARMSID. ARM2SID is based on the same blocks as ARMSID but one step more advanced blocks.
👉 Thanks to them, it added the possibility of emulating up to two additional chips and / or FM synthesis with OPL2.
👉 Like ARMSID, ARM2SID is a replacement for the MOS6581 and MOS8580 circuits used in Commodore C64/C128. It comes again in a minimalist form, but it can do a lot more.
👉 It can replace up to 3 chips at the same time, it can also emulate SFX sound expander as well as the newer FM-YAM clone.
👉 SIDs emulation itself is the same as with ARMSID, so emulation features can be read on its page.
👉 Firmware update possible inside the C64/C128.
MOS SID Wiki : https://www.c64-wiki.com/wiki/SID
https://en.wikipedia.org/wiki/MOS_Technology_6581
FPGA SID : https://www.fpgasid.de/
SidFX : https://www.sidfx.dk/
SwinSID : https://www.c64-wiki.com/wiki/SwinSID
SIDKick pico : https://github.com/frntc/SIDKick-pico
SIDKick : https://github.com/frntc/SIDKick
👉 Manual (oppdatert) og ARM2SID konfigurasjons programmet hentes her : https://www.tinyurl.com/crb-soft
- Itillegg kan du kan også laste ned mine personlige: 'SID Test Musikk filer' (Collection)
for bl.a 2 SID stereo, 3 SID, SFX, SID + SFX samt ulike nyttige SID verktøy m.m.
CrB Retro Archive : www.tinyurl.com/Cryptoburners
👉 You will find frequent updates of new releases here: https://www.tinyurl.com/crb-soft
