Electric Enduro Bike - Kona Stinky Fulldemper + 3000W Motor + 67V 24Ah Battery
Til salgs
25 999 kr
Beskrivelse av varen
Tilstand: Som ny - Ikke synlig brukt
Merke: Kona
Sykkeltype: Fulldemper
Kjønn: Herre

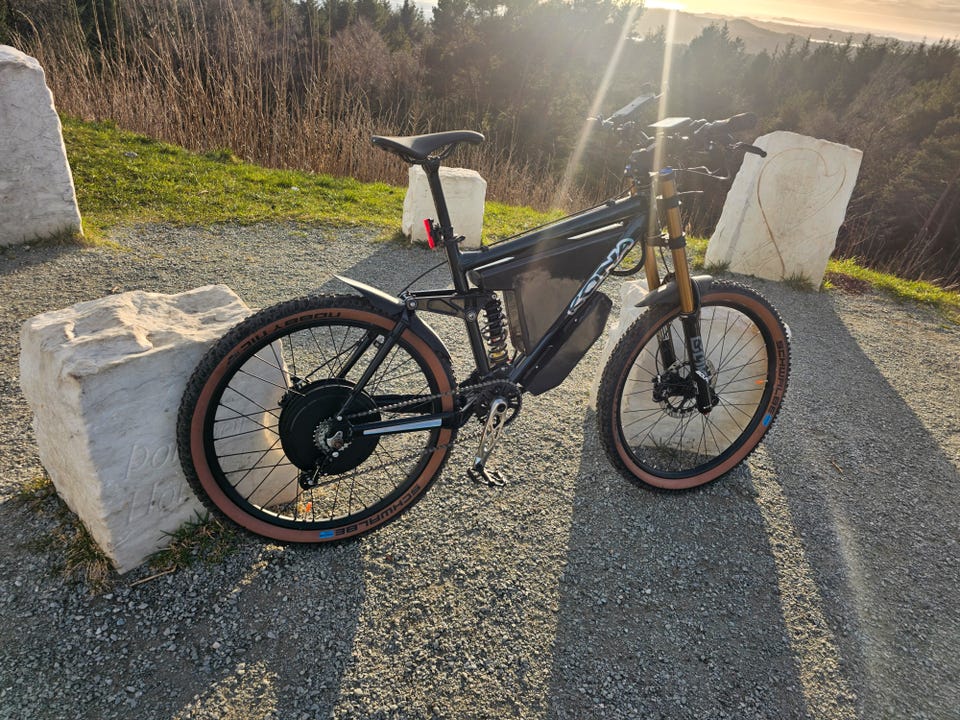

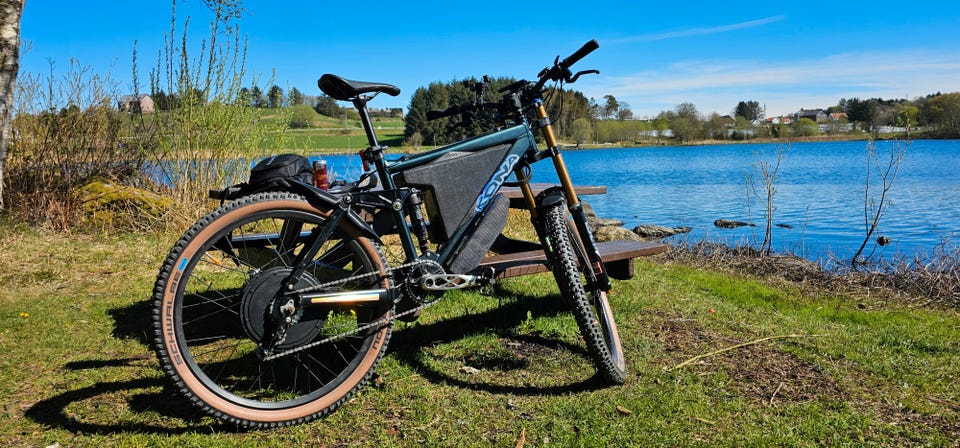

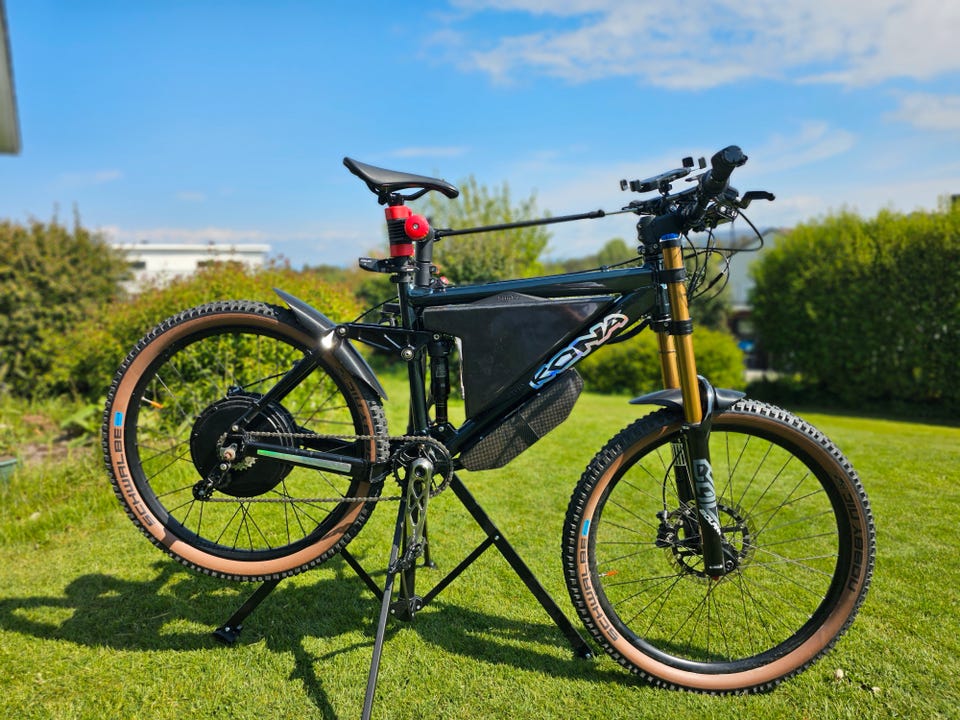

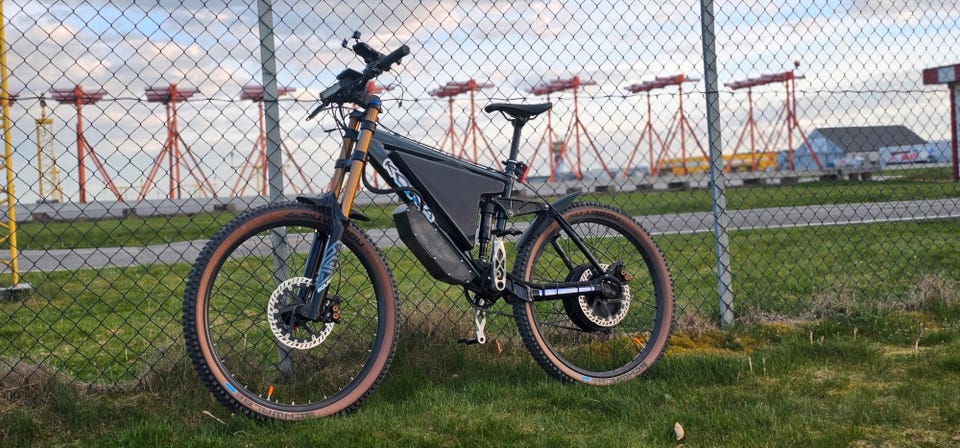

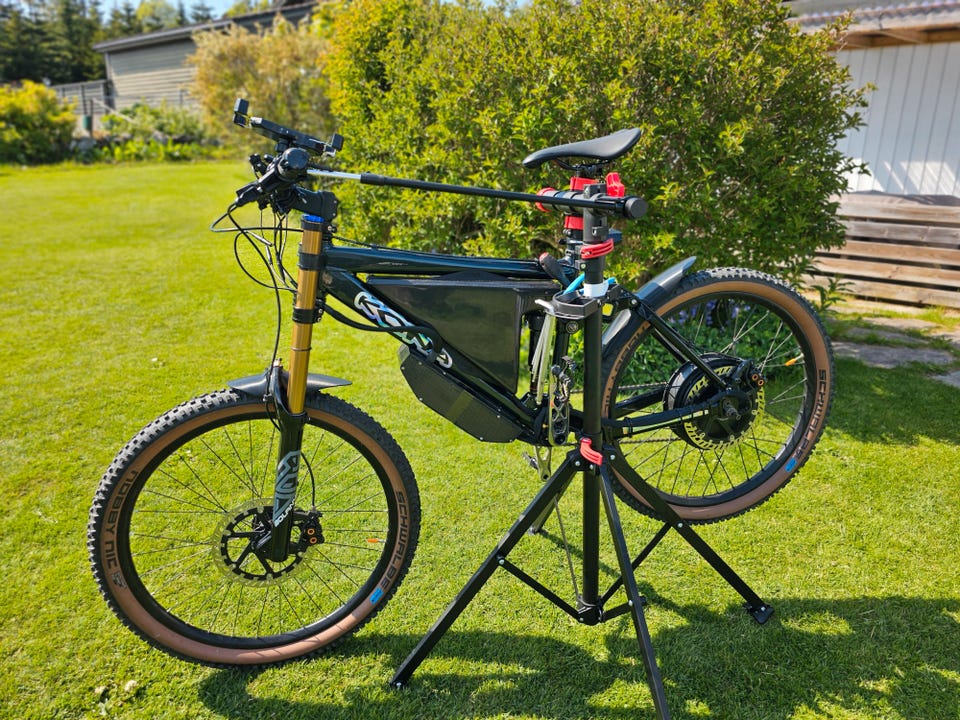

Electric Enduro Bike – Kona Stinky Frame + 3000W Motor + 67V 24Ah Battery + Sabvoton Controller
For sale: a unique, high-performance electric mountain bike based on a Kona Stinky full-suspension frame, completely rebuilt and upgraded into a powerful and reliable e-bike for off-road and urban use. This is a full-damper build with quality components, tuned for downhill, enduro, and pure fun with serious torque.
🔧 Technical Specifications:

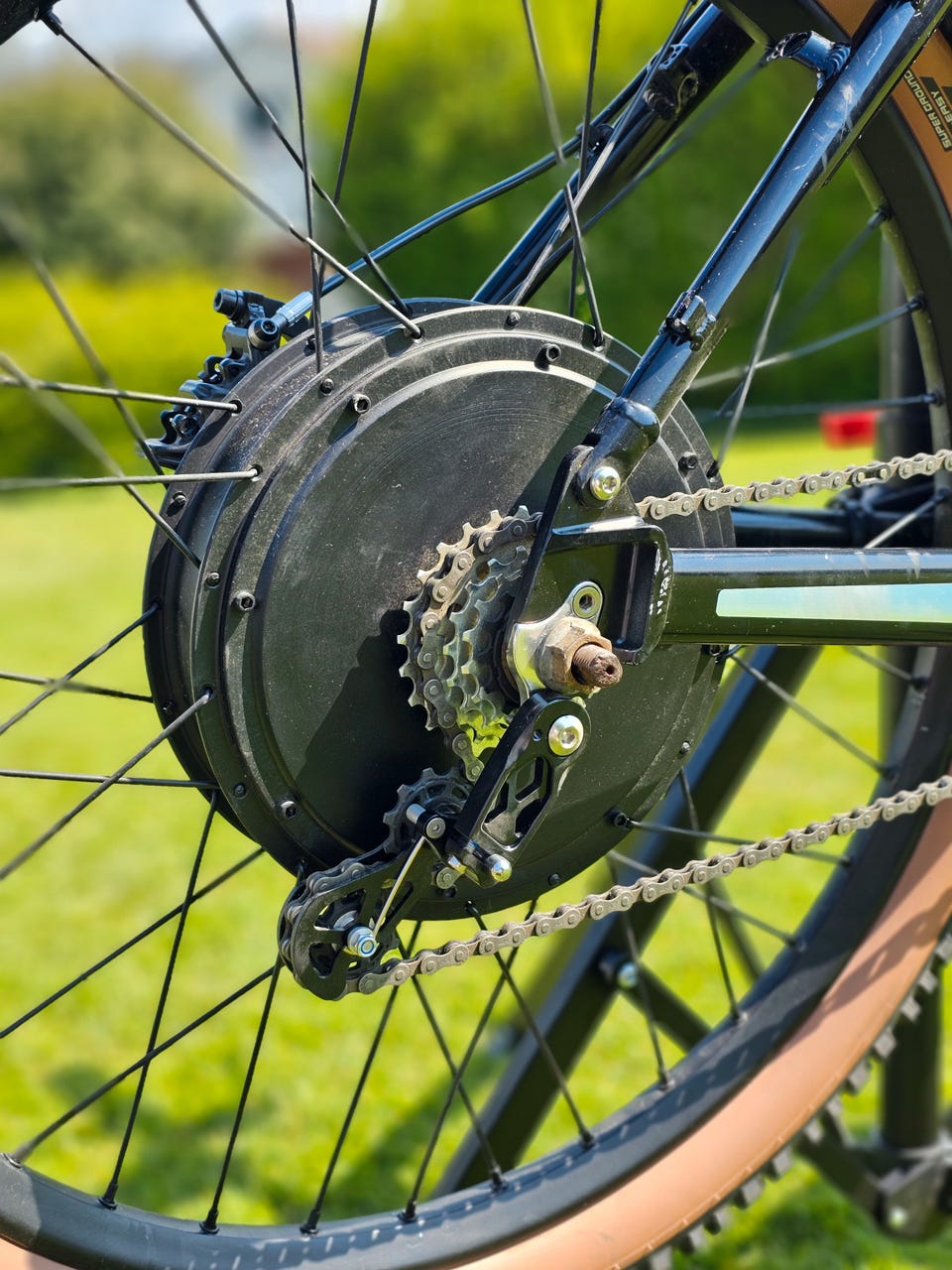

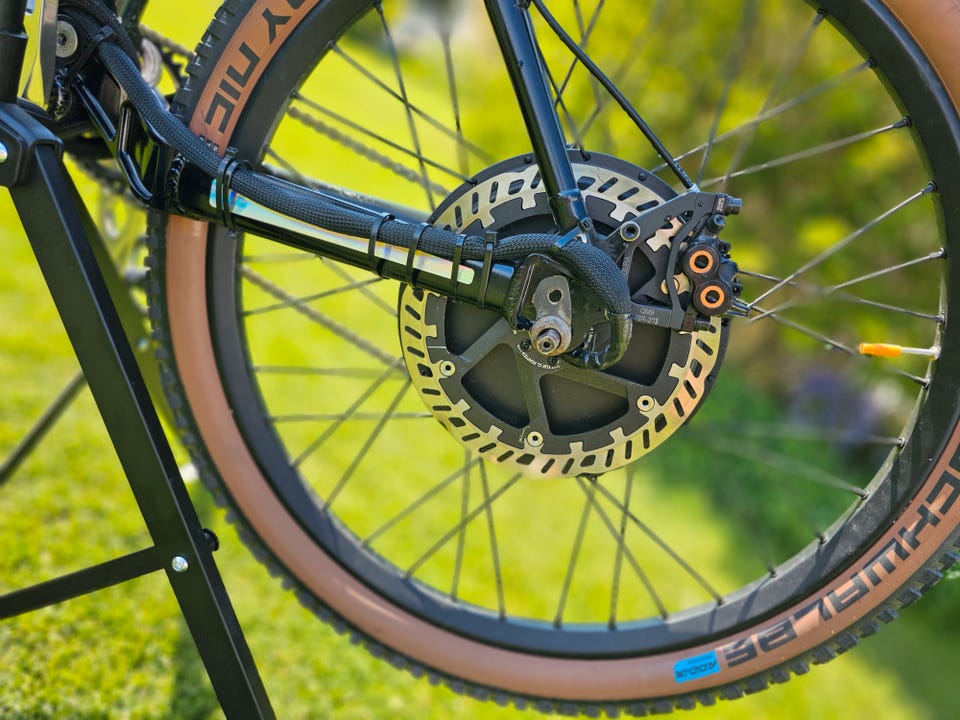

Motor: 3000W brushless hub motor (48V–72V compatible), similar to the MXUS 3K – massive torque and climbing power, great for hills and trails.

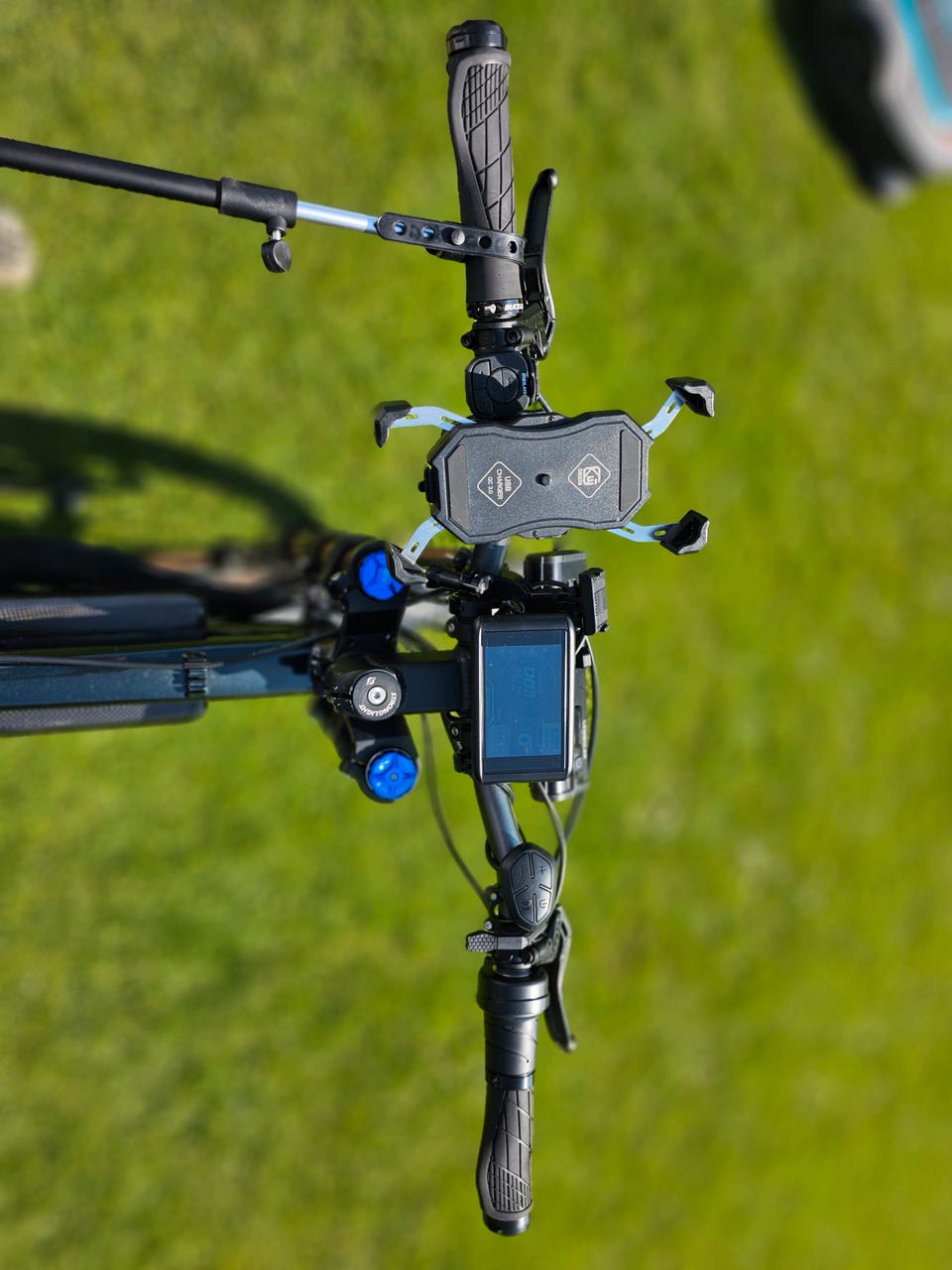

Controller: Sabvoton MQCON SVMC7245 – a powerful and highly configurable controller, Bluetooth-programmable via MQCON BT app, with UKC1 display.
A top-tier choice for performance builds – offers smooth, linear acceleration and consistent power delivery regardless of battery charge level. Thanks to advanced current regulation, the bike accelerates just as hard at 67V as it does at 60V. Pure efficiency and power control.
Battery: 67V (16S) 24Ah made from genuine Samsung ICR18650-26FM cells – long-lasting and high-capacity pack. Nominal voltage: ~59.2V / Max charge: 67.2V.
BMS: JK-BD6A24S6P Smart BMS (8S–24S, 60A) with Bluetooth – real-time monitoring, balancing, and full protection.
Range: 40–80 km depending on riding style.
Top speed: ~75 km/h (adjustable in the app).

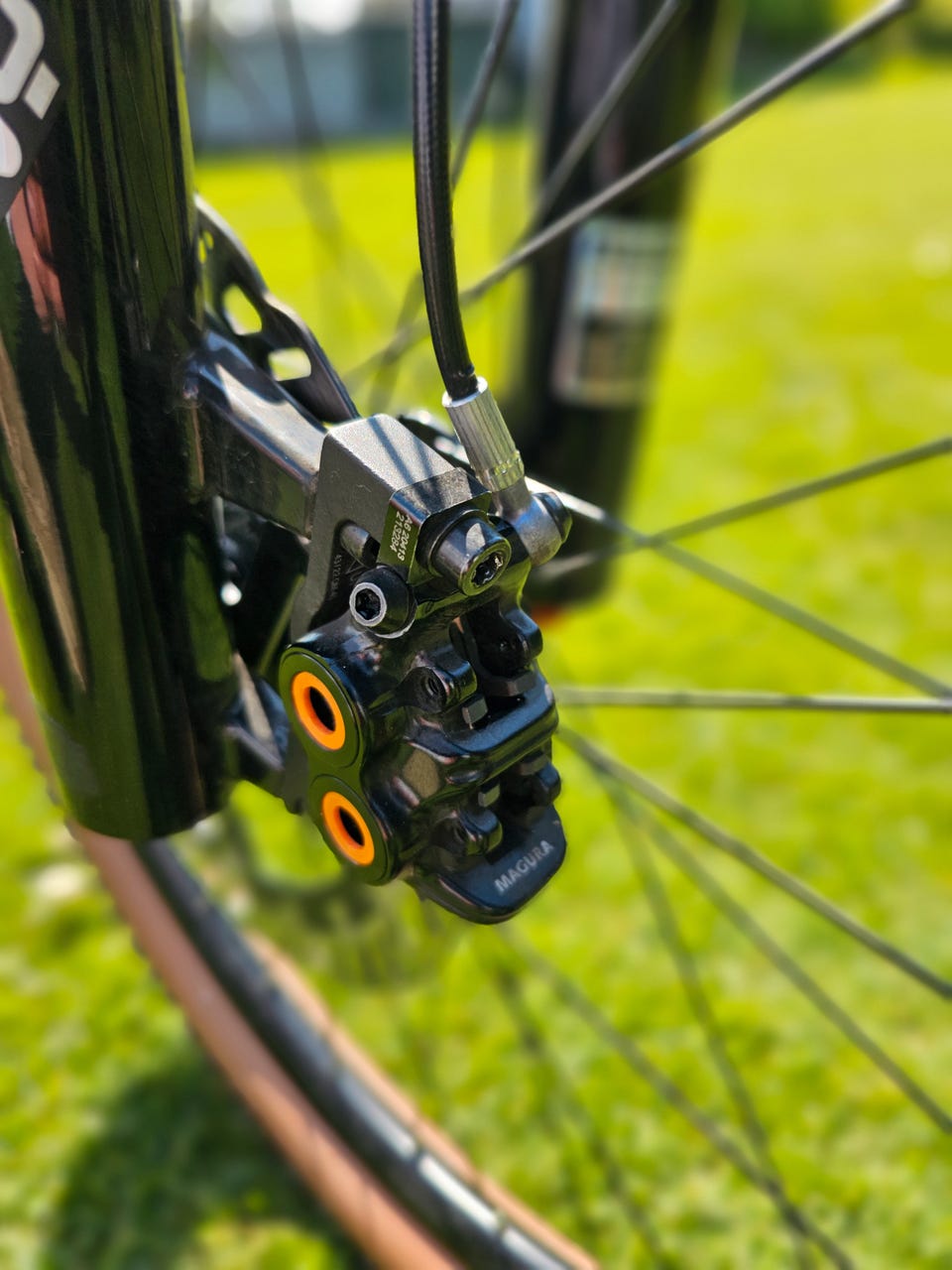

Brakes: Magura MT5e hydraulic disc brakes with motor cut-off sensors.
Brake rotors: MAGURA eSTOP 220mm front and rear – no matter the speed, the bike responds instantly to the hydraulic brake lever, delivering powerful and consistent stopping force.

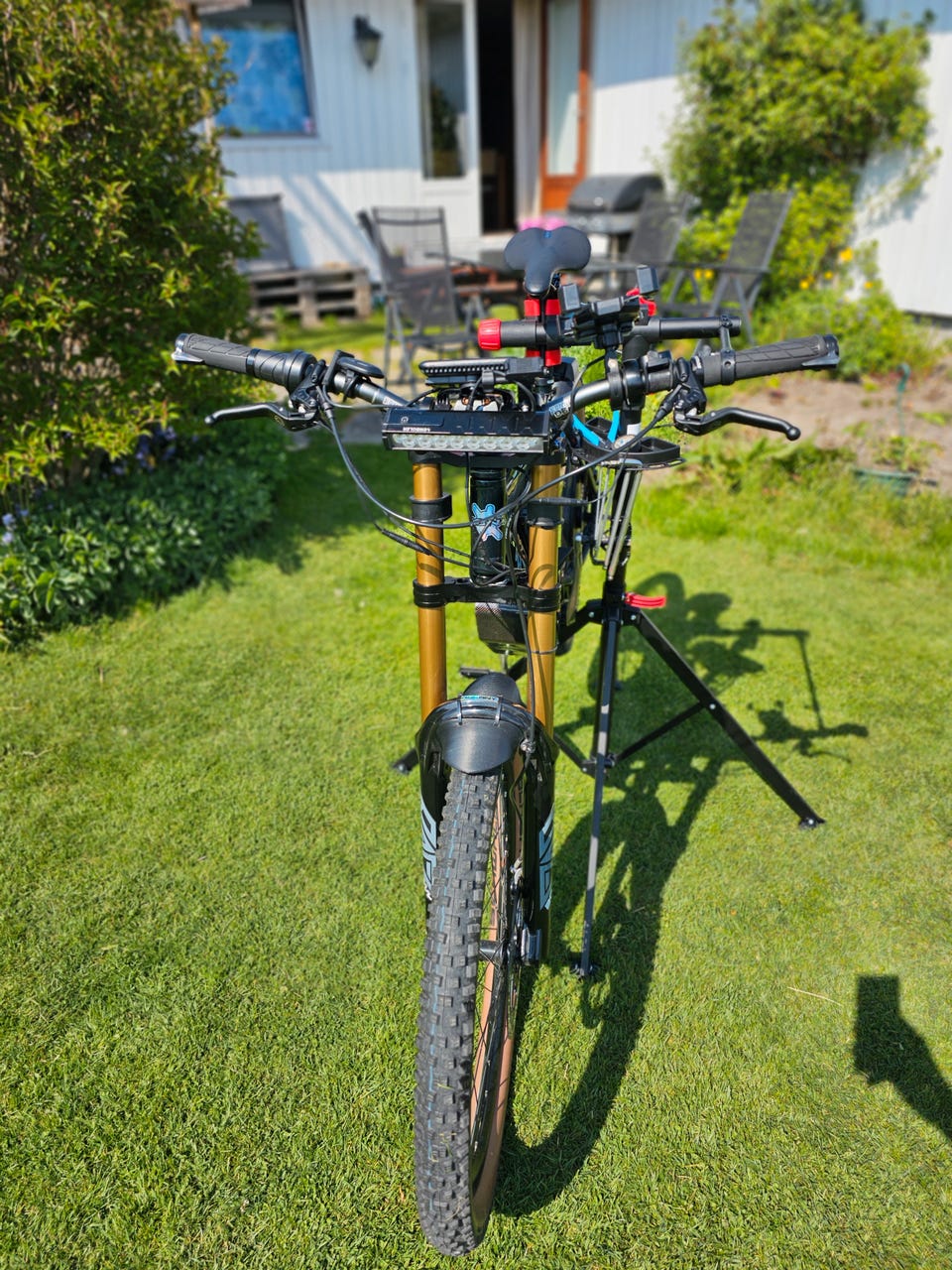

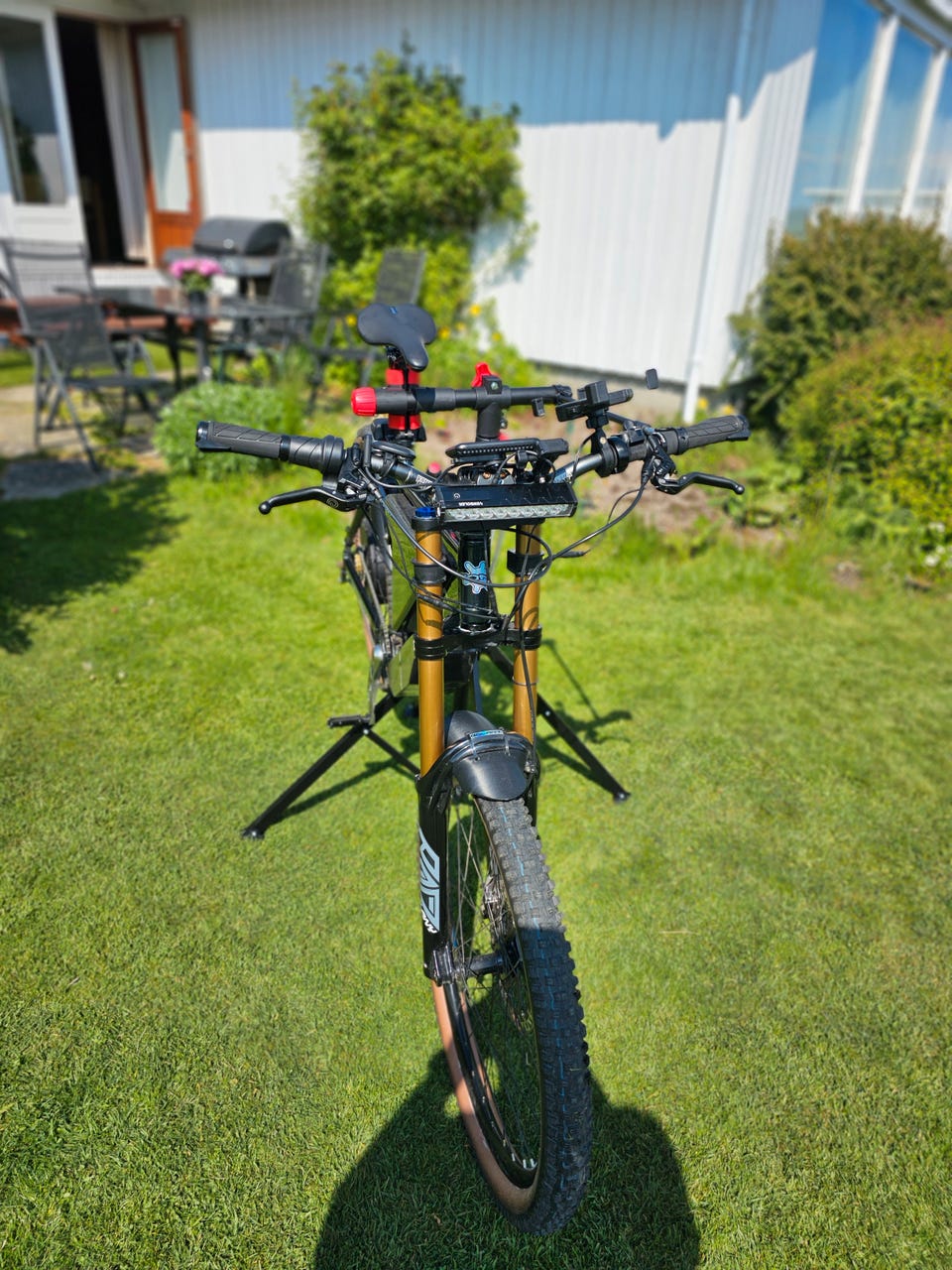

Front suspension: Boost MTB 36 mm air-oil suspension fork, 180 mm stanchions, dual crown, 29” compatible – stiff, responsive, and downhill-ready.
Rear suspension: RockShox Deluxe Select+ – high-end rear shock with excellent damping and adjustability.
🚴 Drivetrain:
Single-speed setup – minimal maintenance and super reliable.
Chain tensioner / derailleur-style stabilizer – aluminum MTB chain guide, keeps tension even during aggressive riding.
🔋 Battery Case and Build:

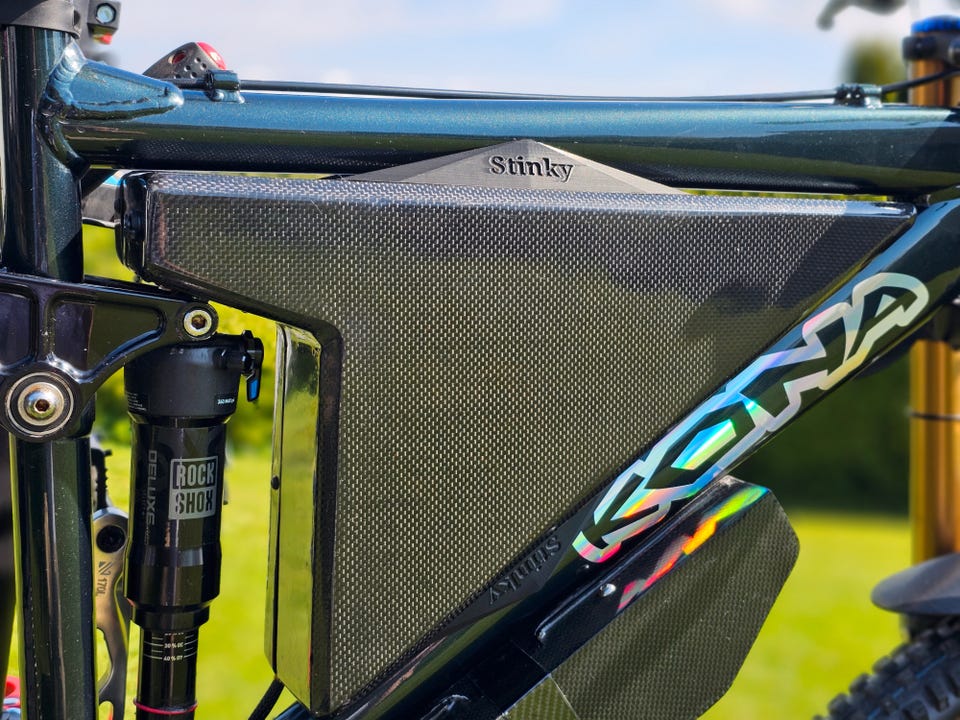

Hand-built battery case made of epoxy coated with carbon fiber, mounted directly to the frame – strong, durable, and visually clean.
Controller mounted under the frame – well protected and ventilated.
Frame color: Tesla Model S Sequoia Green (G100E) – deep, premium metallic green with a unique, high-end appearance.
🛞 Wheels:
Front wheel: 27.5” – better obstacle rollover and stability.
Rear wheel: 26” – more traction and torque response.
💡 Extras:
Front LED light

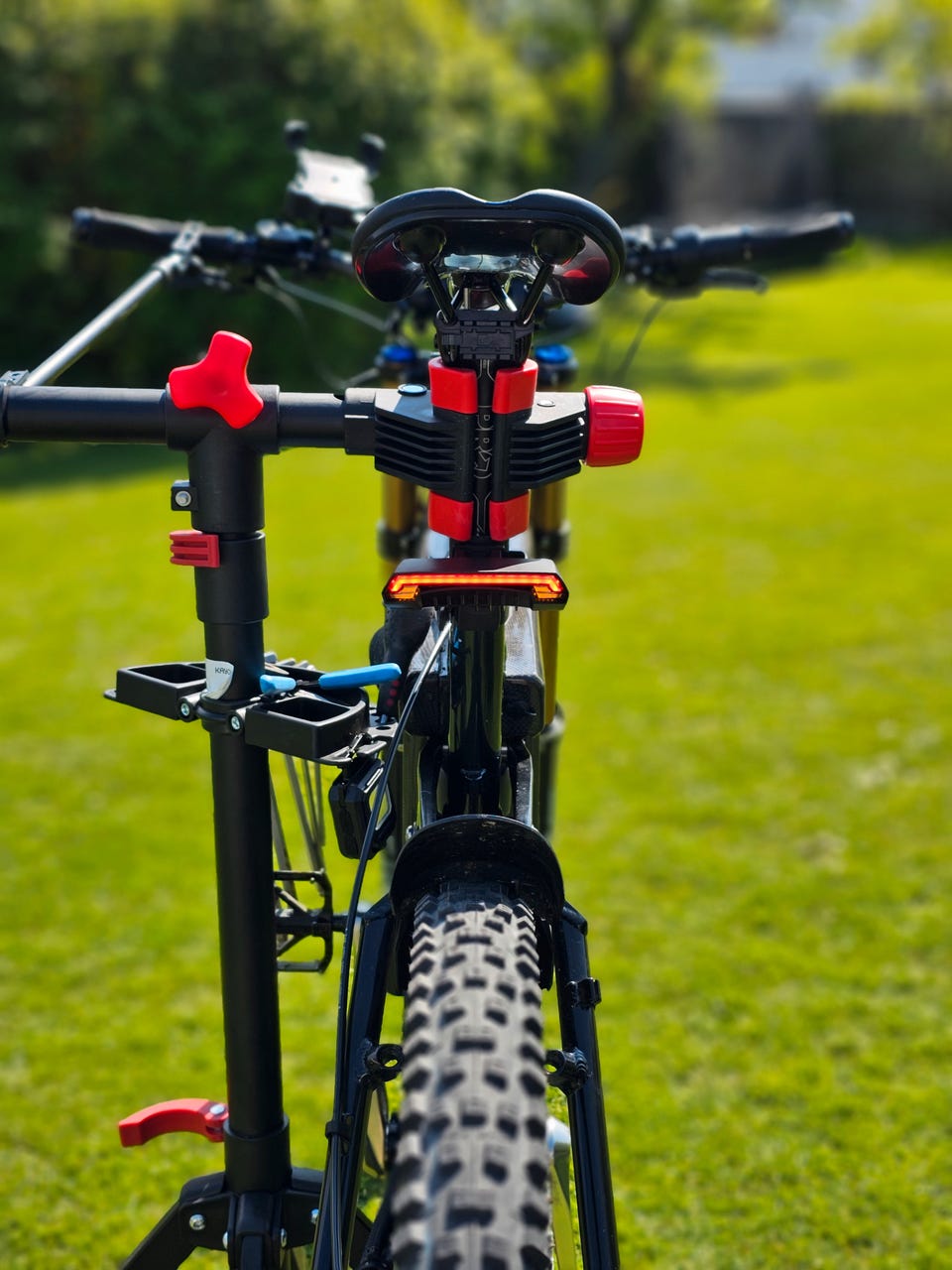

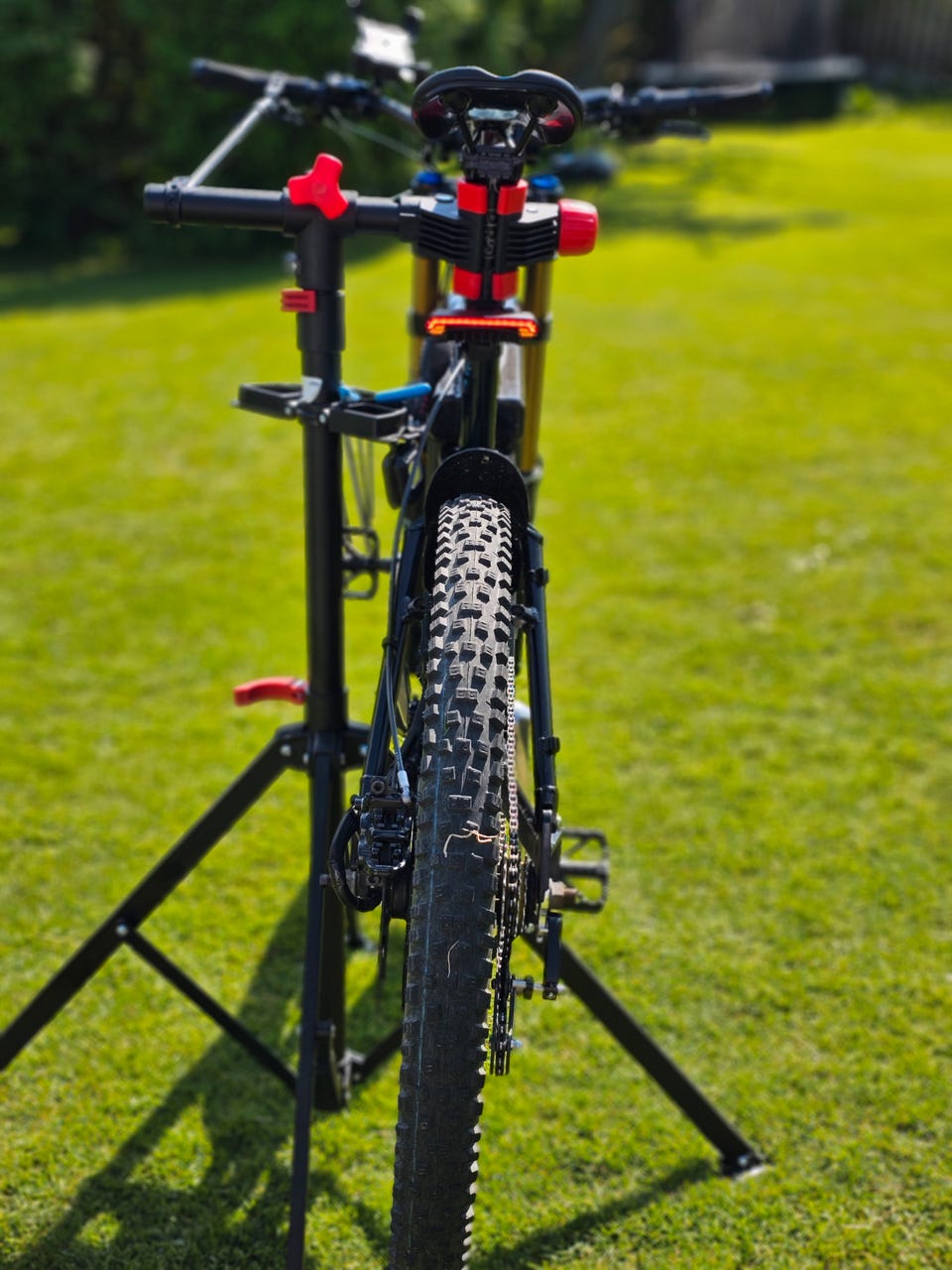

Rear light: Meilan X5 Wireless Brake & Turn Signal Tail Light – smart brake sensor, turn signals, laser lane markers, remote control, USB rechargeable.
Brake levers with motor cut-off.
XT60 charging port.
Demo of BMS and controller app available during viewing.
📏 Fit & Rider Info:
I’m 185 cm tall and weigh 97 kg – the bike is set up and tuned for this size.
Recommended rider height: up to 185 cm – taller riders may find the frame a bit compact.
🛠️ Build History & Notes:
This bike was built entirely from scratch as a custom project.
It has about 250 km of use without any issues – runs smooth and solid.
That said, as with any custom-built project, it’s still a platform that can benefit from ongoing observation and refinement.
And honestly – there are probably lots of small details and upgrades I didn’t even include in this listing… there was simply too much going into a project of this scale!
⚠️ Important Note:
This e-bike is not street legal under Norwegian law – it exceeds the legal limits in both power and speed.
Best suited for private land, forest trails, off-road rides, or for enthusiasts who know exactly what they’re getting into.
Totally worth the sin – a beast of a machine, full of power, precision, and insane fun.
