Variatorer Arctic Cat F/M/CF XF 6/700/800 2003-2022
Til salgs
1 500 kr
Beskrivelse av varen

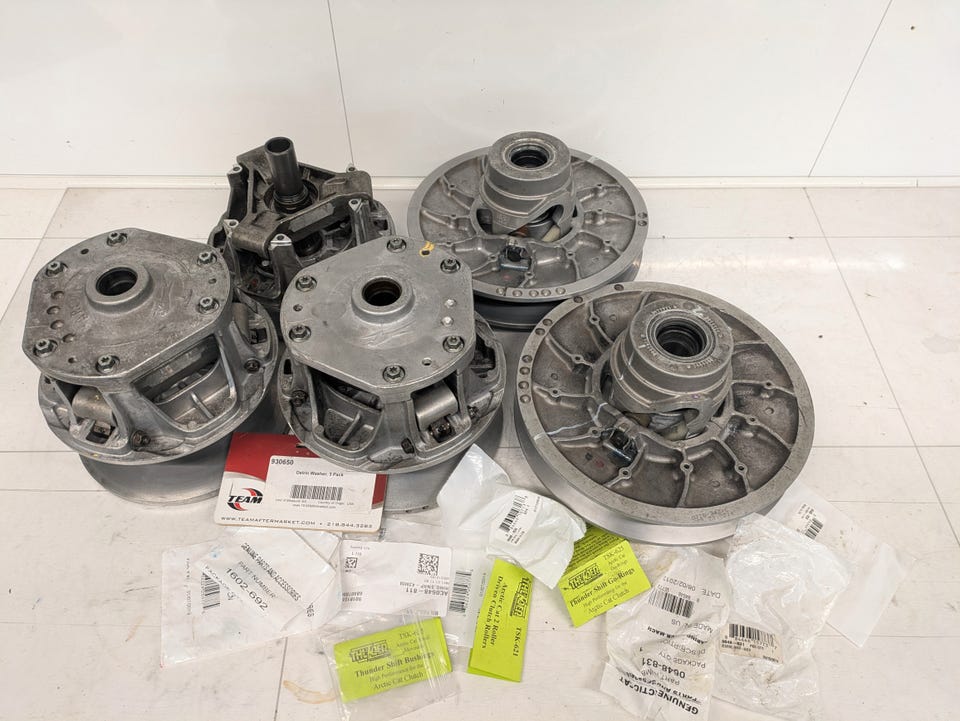

Variatorer Arctic Cat
Passer mange
Har stått på m800 / m8 / m8000 proclimb .
1. SOLGT
Primær variator komplett
6 Tower Big Pin Metric Drive Clutch - 8.25 inch 33mm
Kr.: SOLG,-
2. SOLGT

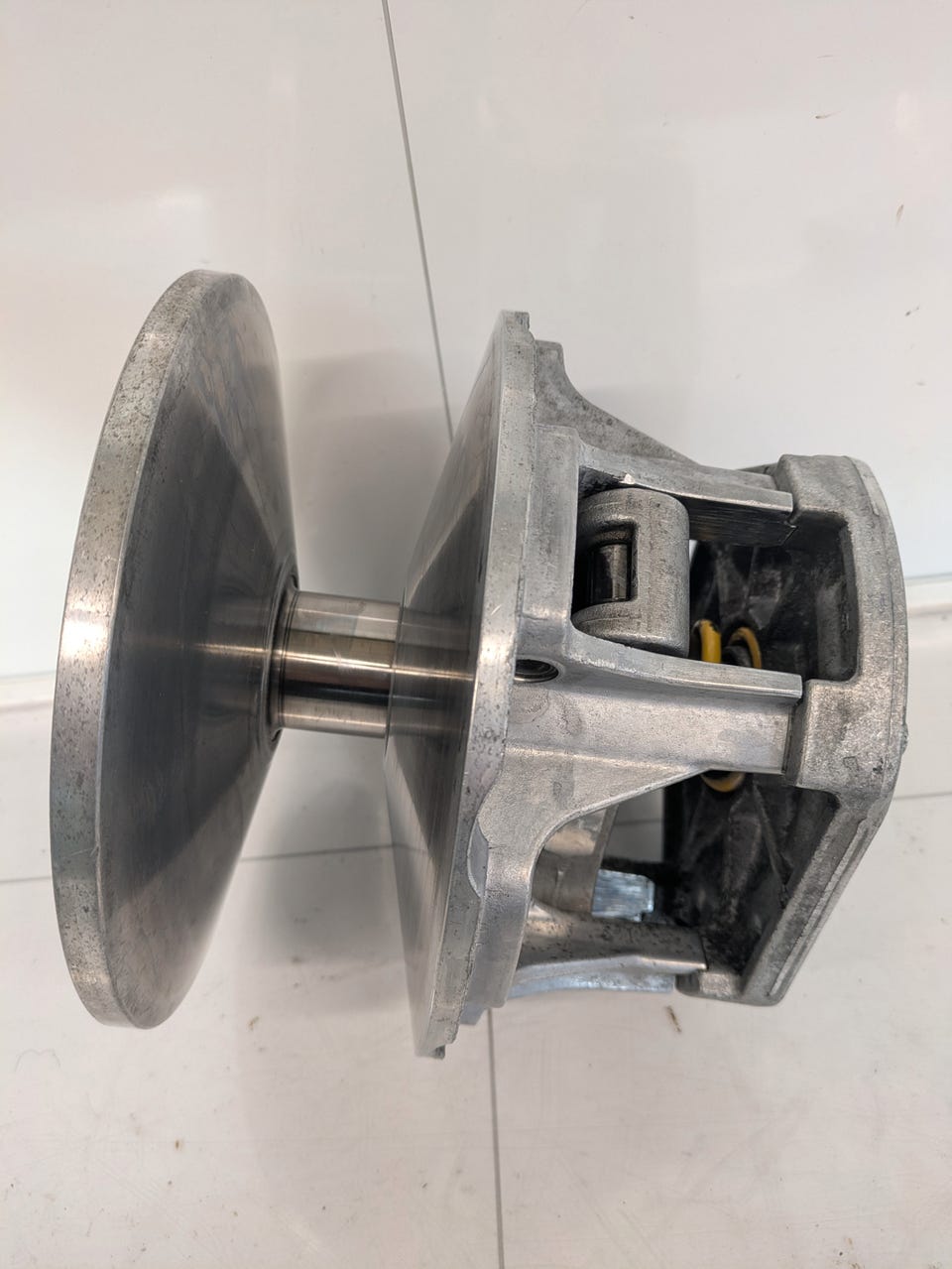

Primær variator ikke komplett
6 Tower Big Pin Metric Drive Clutch - 8.25 inch 33mm

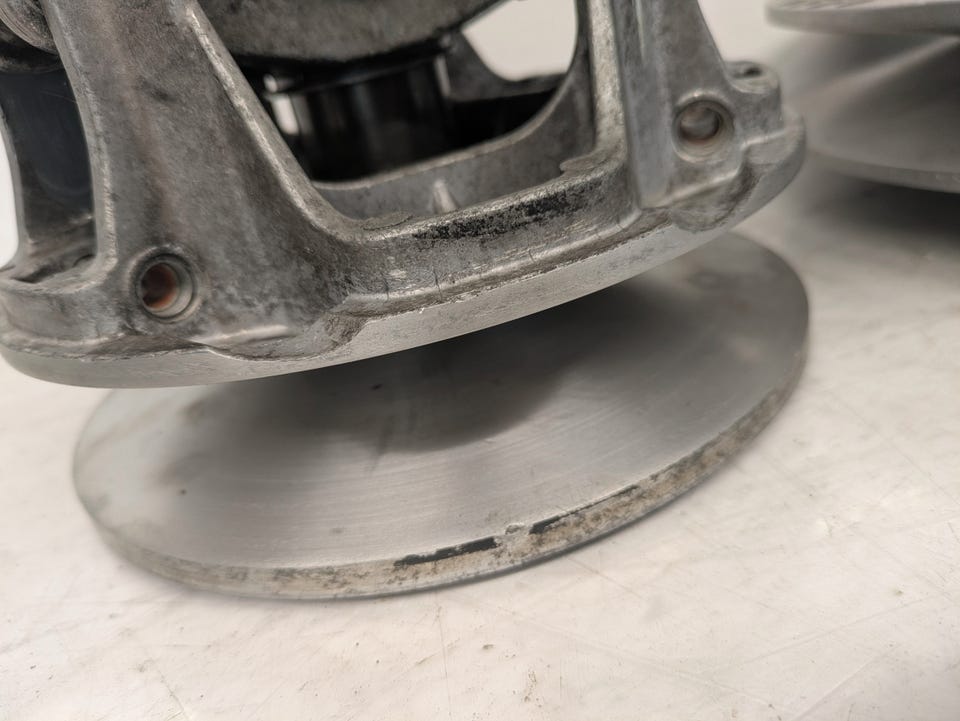

Uten vekter ,u/ fjær, u/lokk med maskinerte overflater.

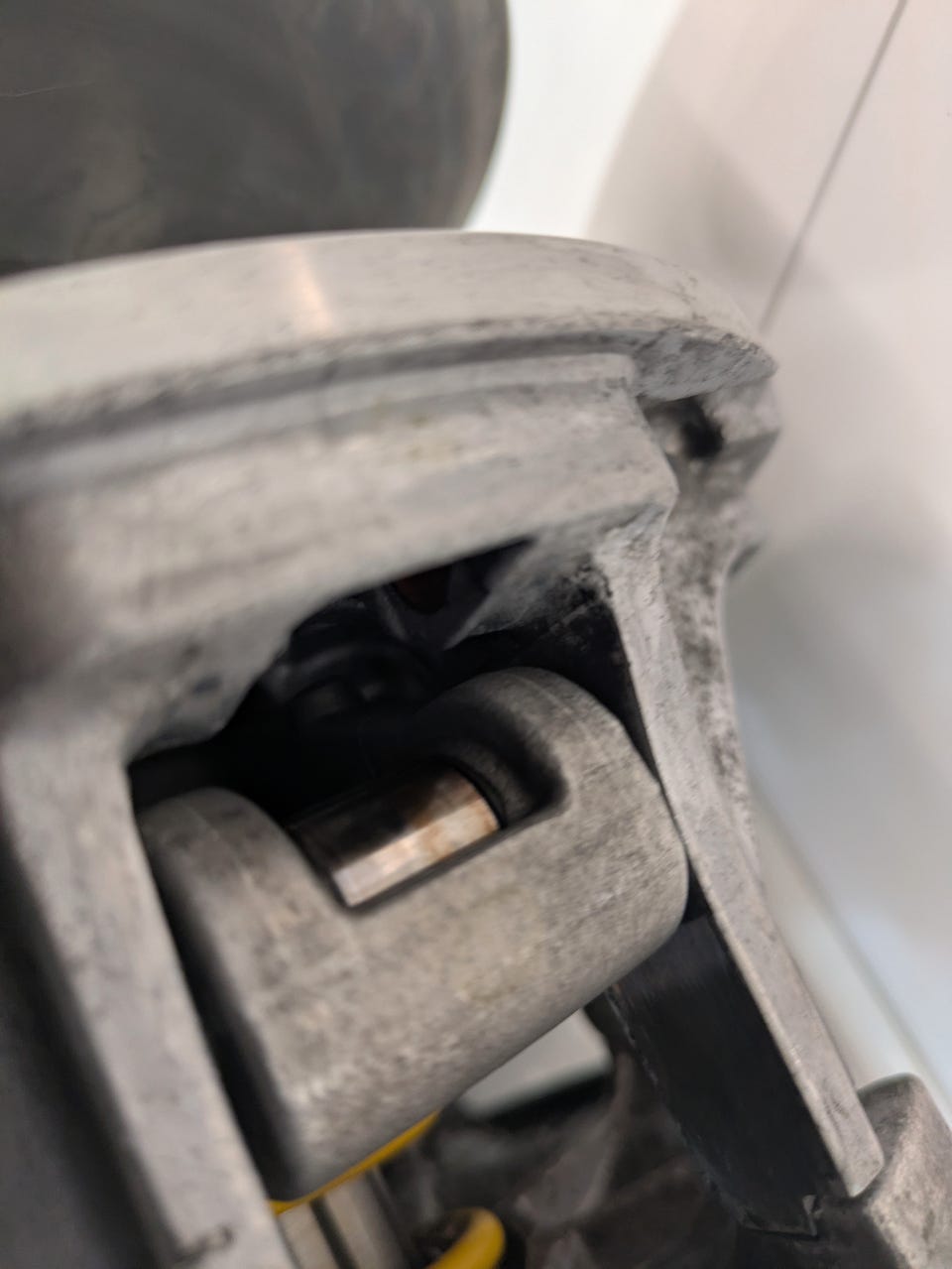

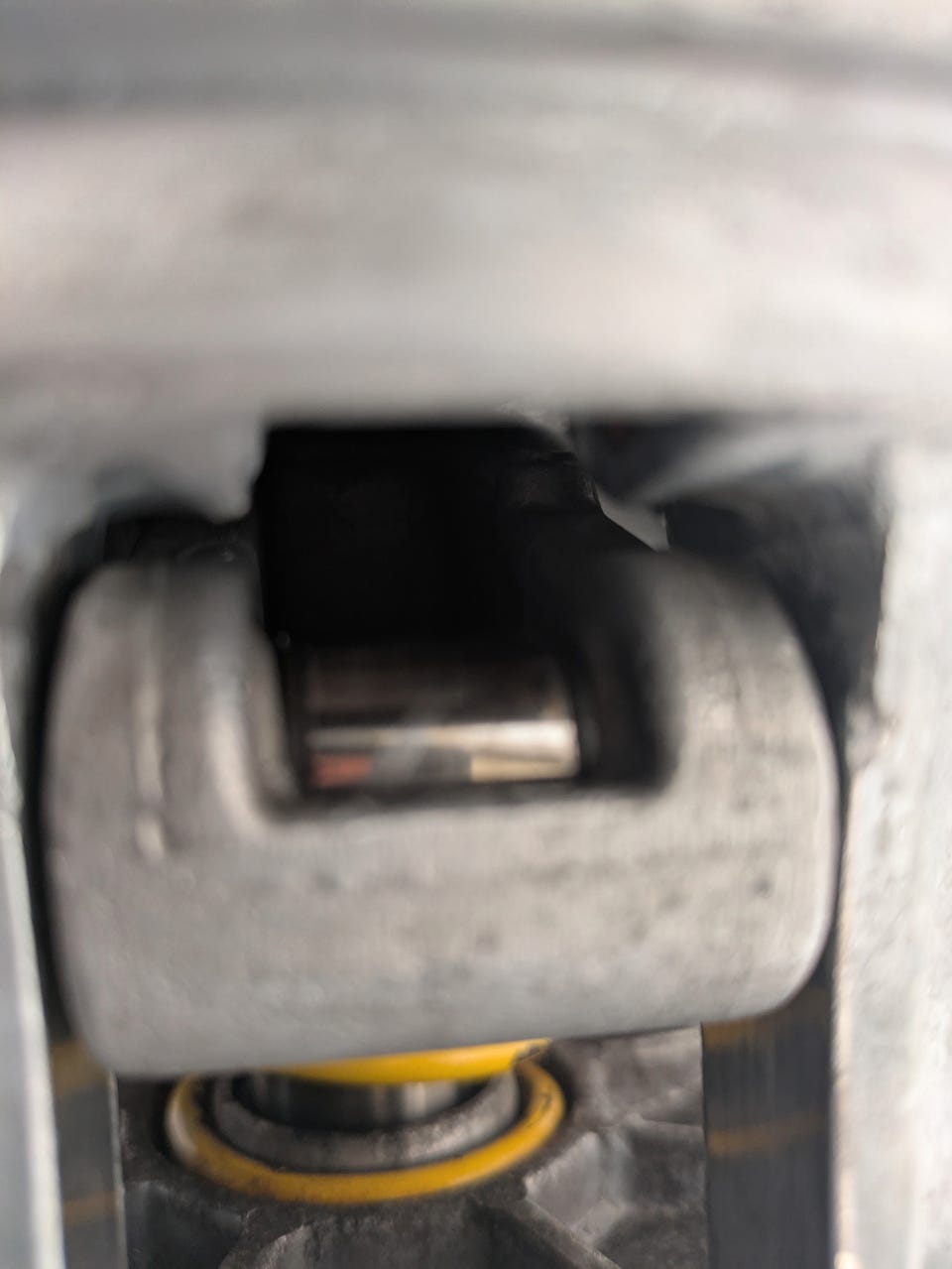

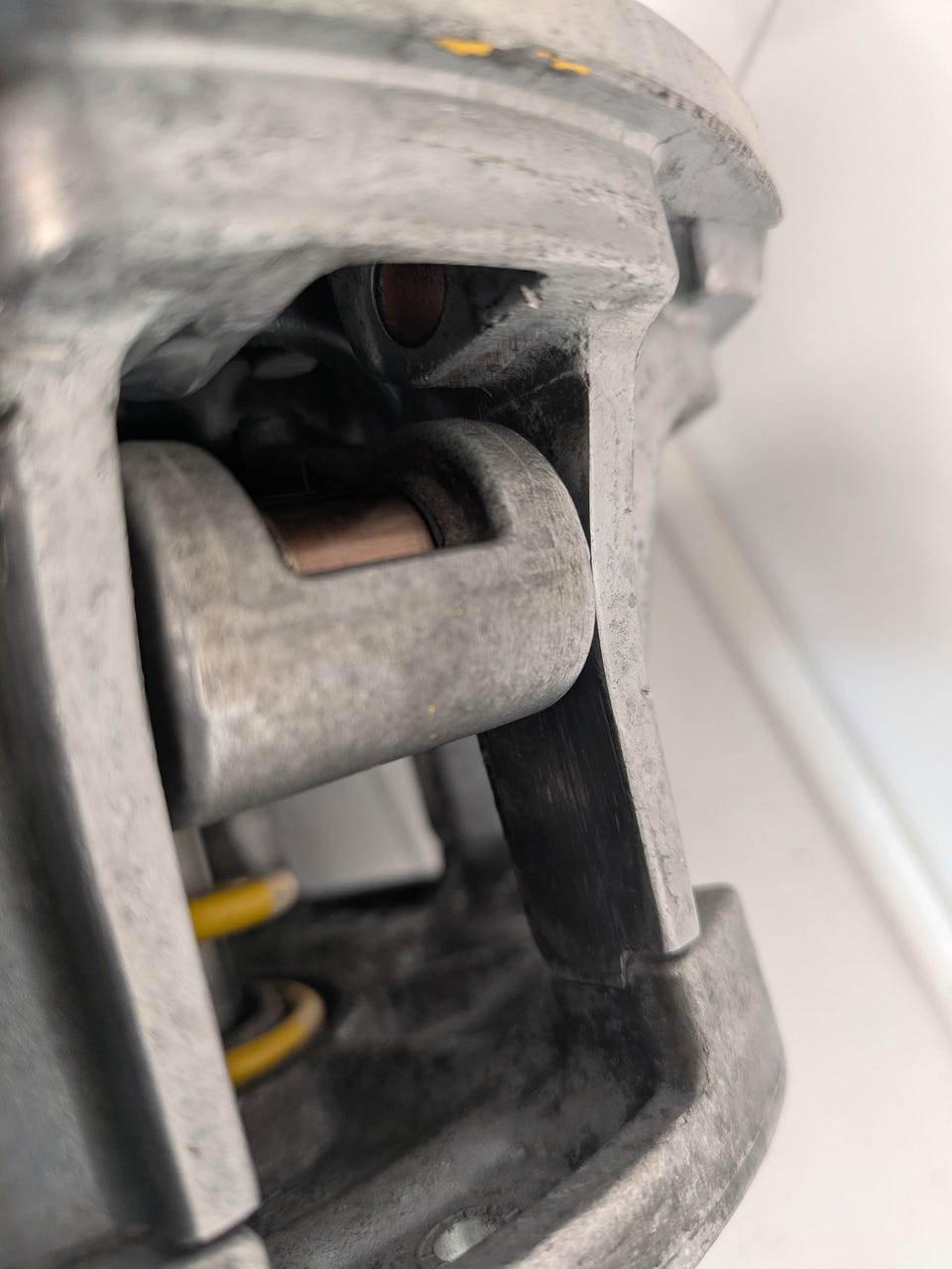

Fin spider og gode ruller
Kr.: -SOLGT
3. SOLGT
Sekundær "big fin" 2014 komplett
Billig løsning. Med maskinerte skive overflater
Kr.: SOLGT,-
4.

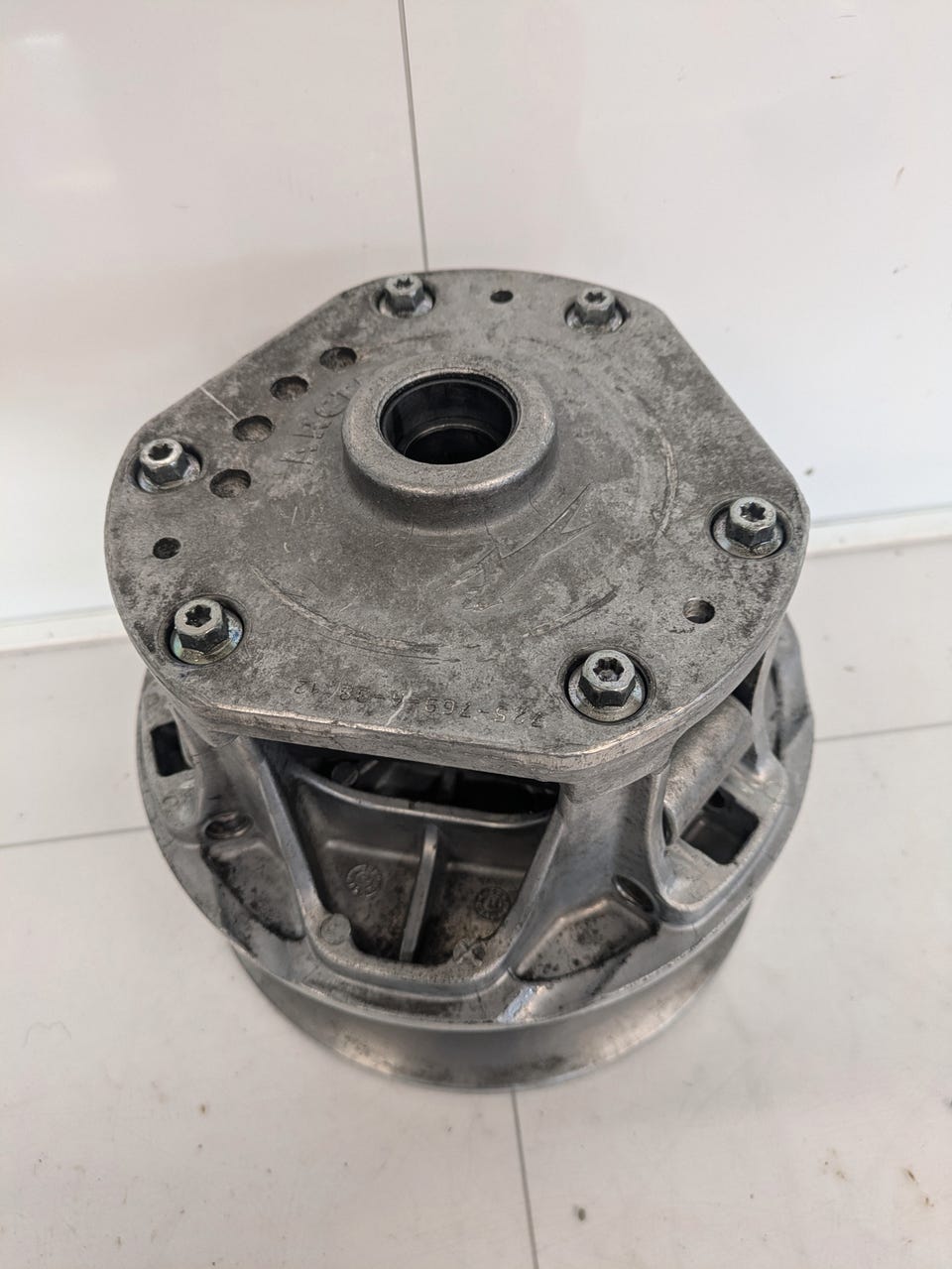

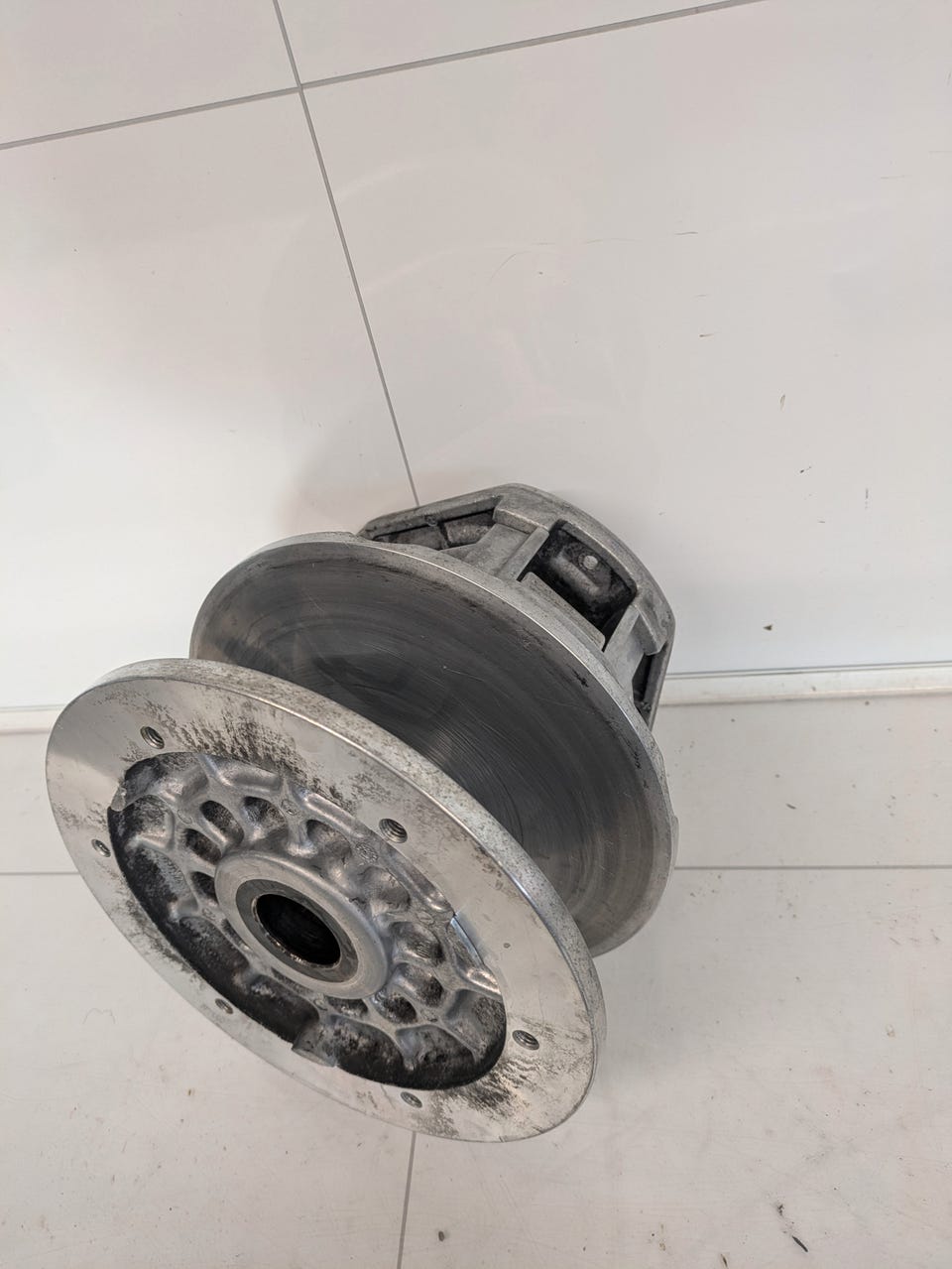

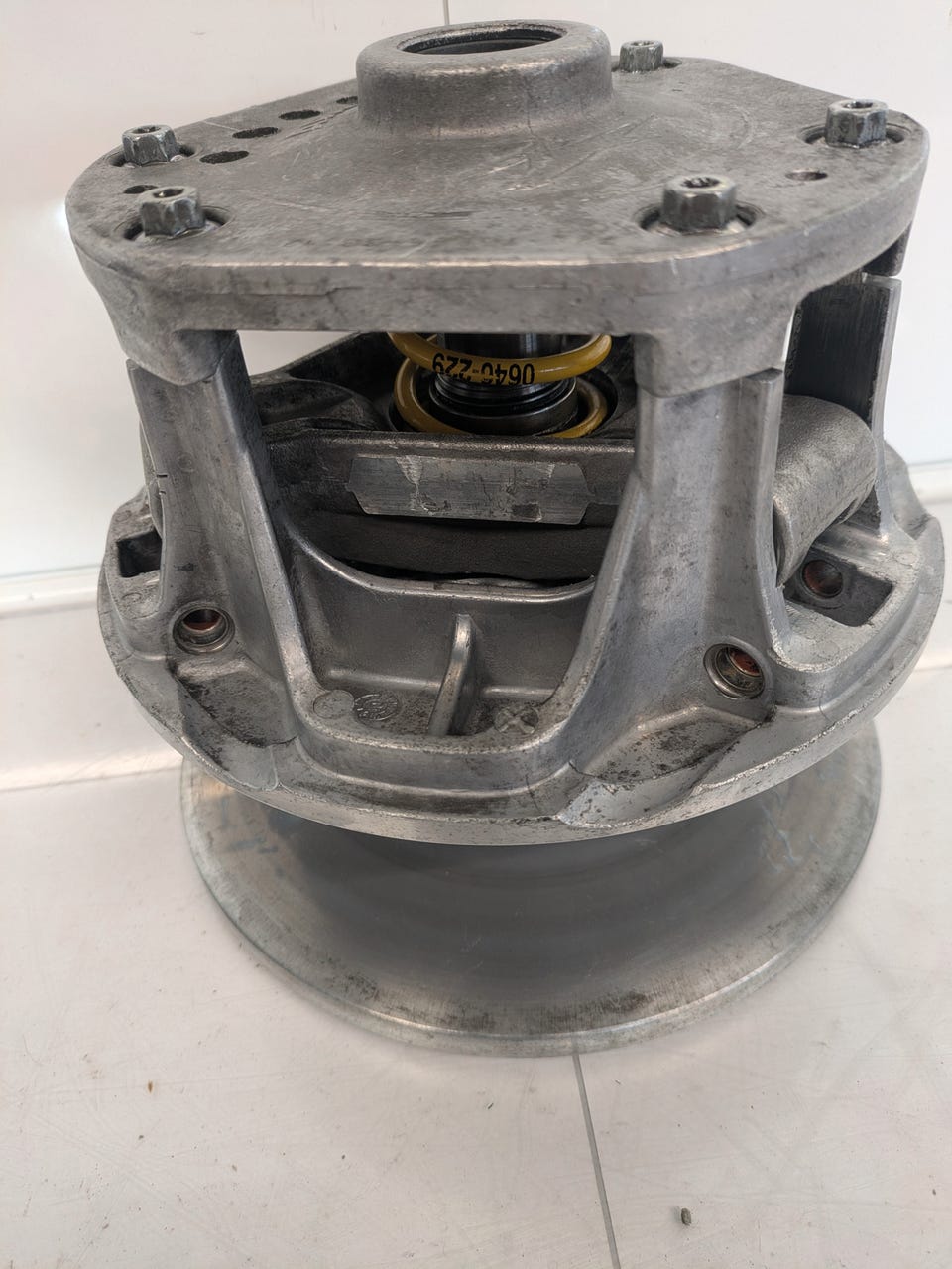

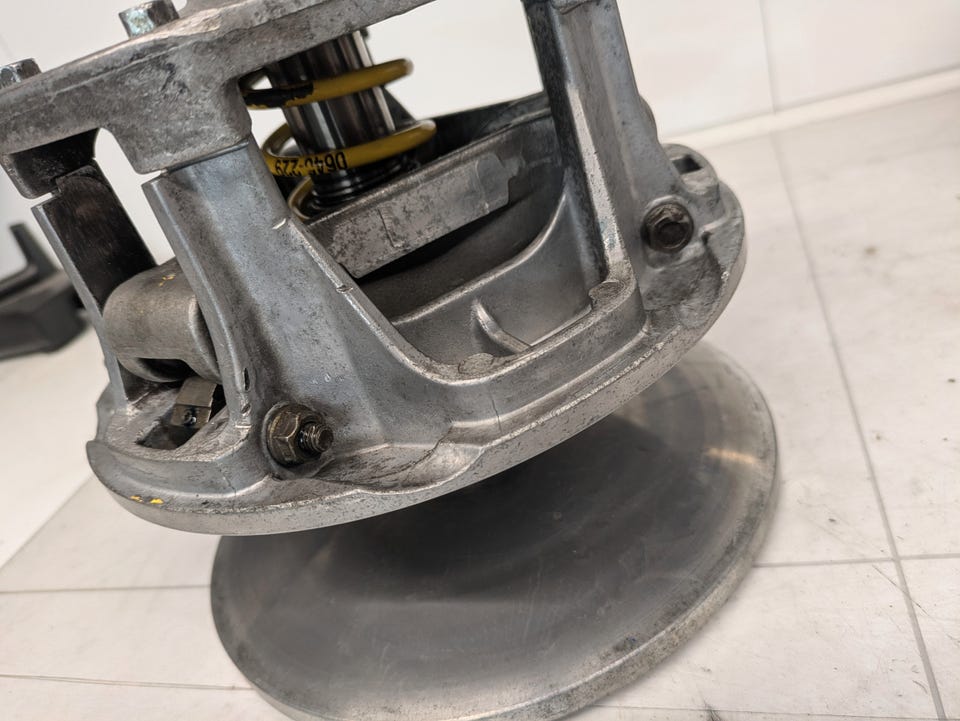

Overhalt Primær variator komplett
6 Tower Big Pin Metric Drive Clutch - 8.25 inch 33mm

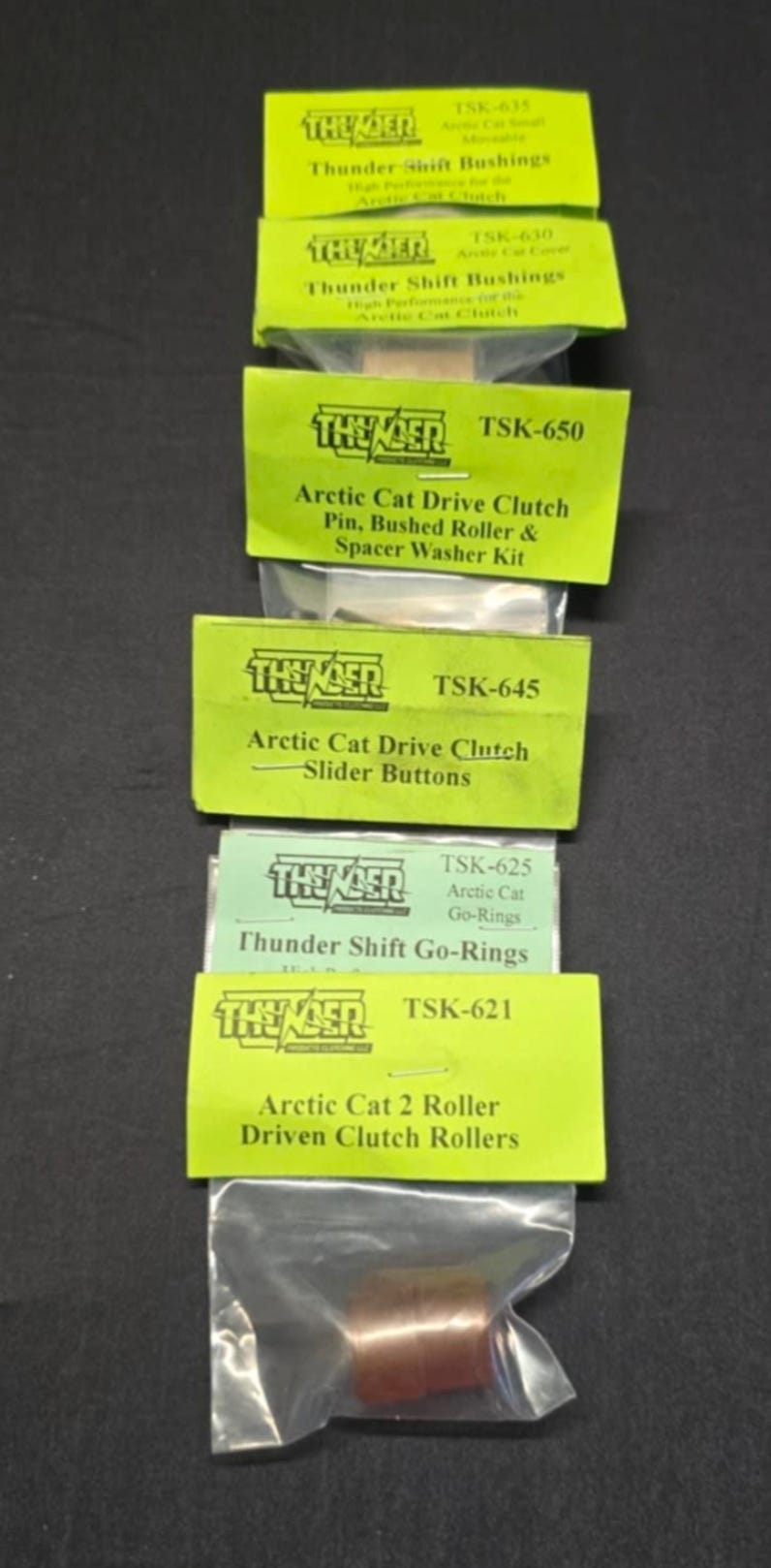

Begge nye foringer , ruller , pinner , fjærbelastet knapper og go rings fra Thunder clutch products
M oppsett
Kr.: 7000,-
5.

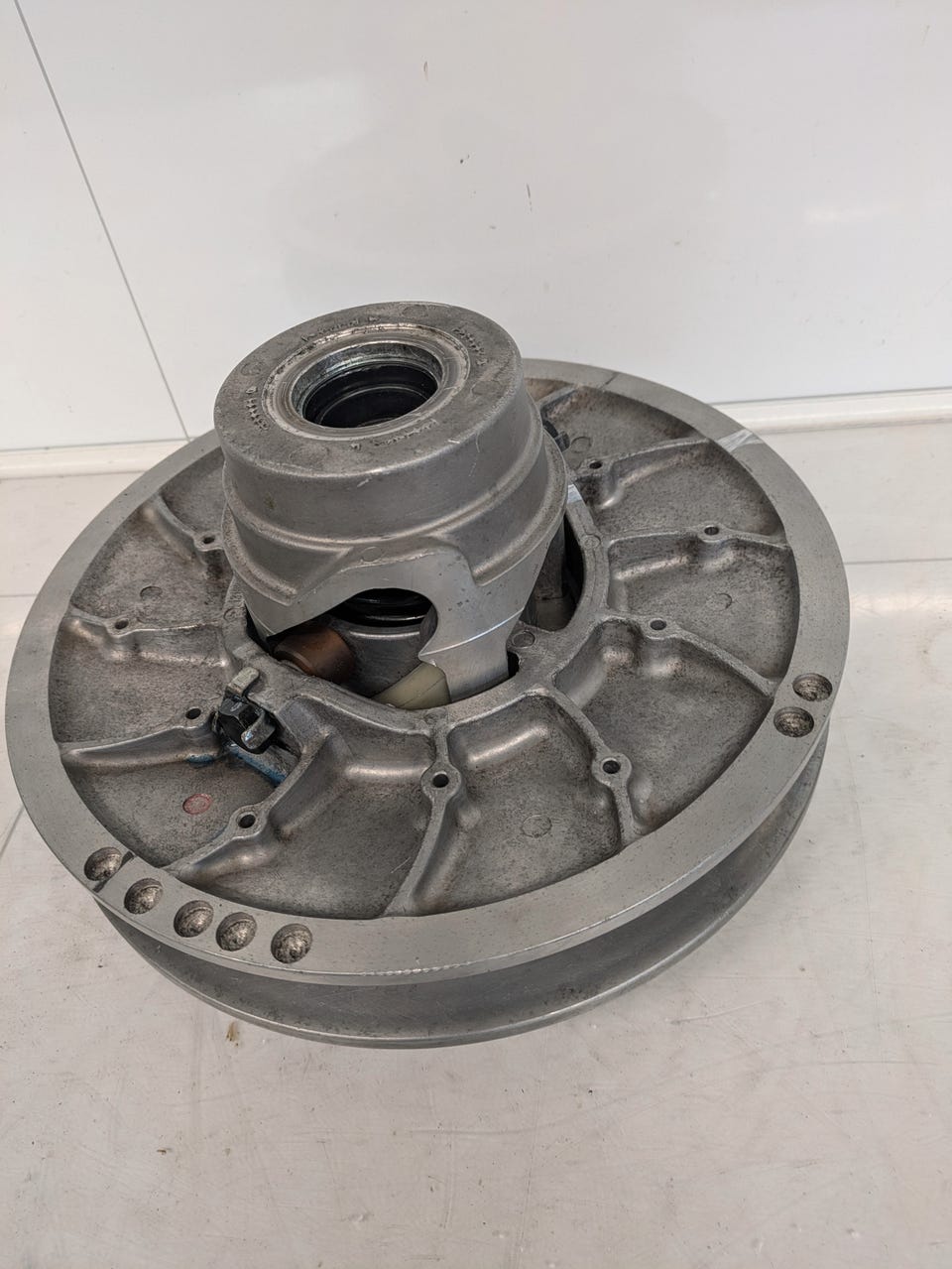

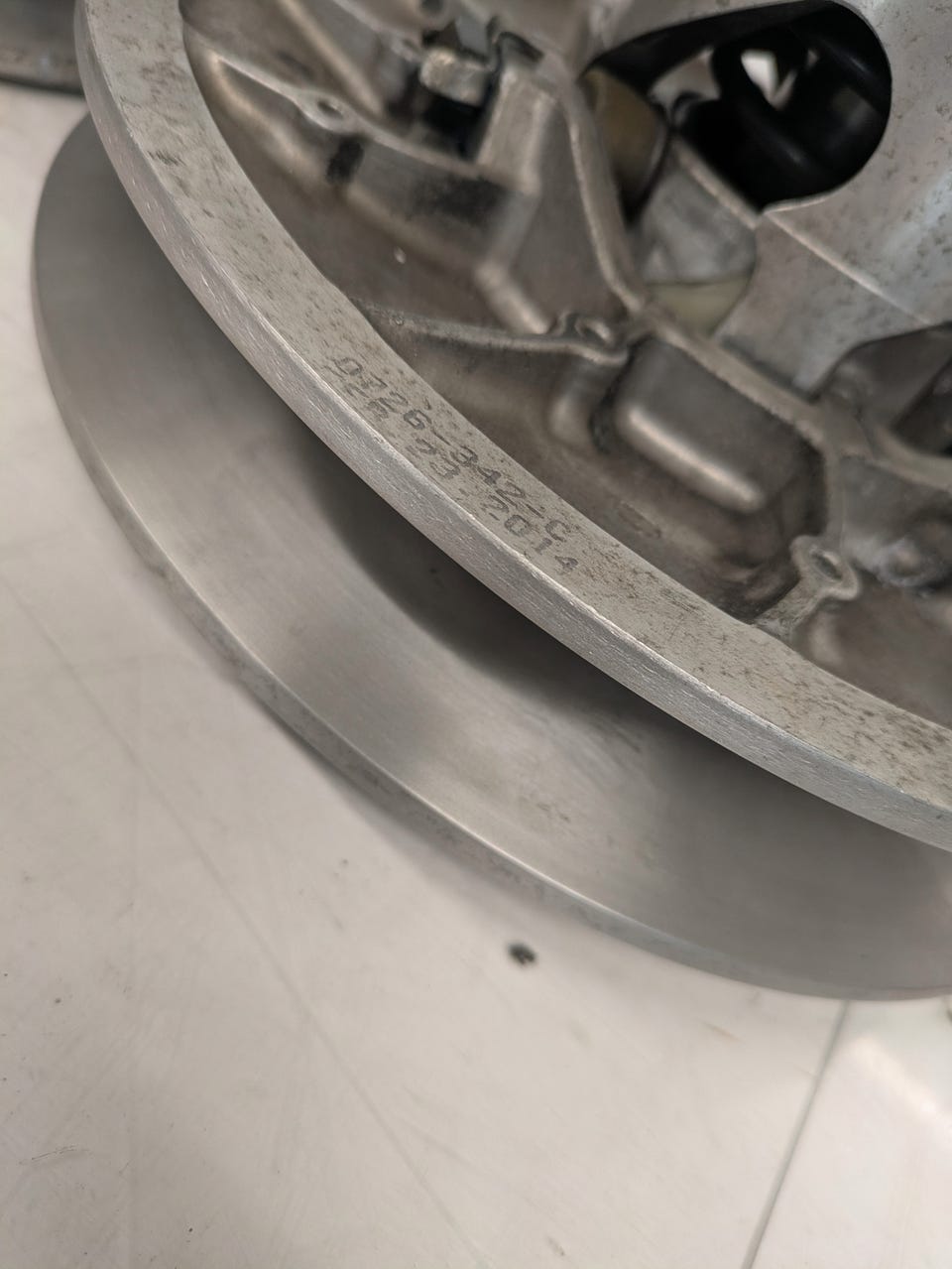

Overhalt Sekundær "big fin" 2014 komplett
Begge nye foringer og revers knotter fra oem AC og ruller fra Thunder products
M oppsett
Kr. 5000,-
--------------------------------------
Tekst fra nettet:
Primær :
Arctic Cat 6 Tower Big Pin Metric Drive Clutch - 8.25 inch 33mm
Description
8.25-inch diameter and 33mm taper
Replaces many of the older standard threaded clutches and small pin clutches
Can also be used on models that came with 8" clutches you will just not use the 0.25" of sheave
Fits Models:
2004-2006 600, 700 lay down engines with chain drive
2004-2009 600, 700, 800 lay down engines with ACT drive
2010-2015 600, 800 lay down 2-stroke engines
2010-2020 500, 570 lay down 2-stroke engines
2007-2015 1100 4-stroke non-turbo engines
Can also be used on 2016-2017 ZR 5000 models, in place of the no longer available 0746-849 TEAM clutch
Replaces Part # 0725-388, 0725-396, 0725-439, 0725-441, 0725-463, 0725-465, 0725-471, 0725-473, 0725-475, 0725-503, 0725-506, 0725-508, 0725-523, 0725-525, 0725-527, 0725-529, 0725-531, 0725-536, 0725-544, 0725-547, 0725-548, 0725-565, 0725-577, 0725-595, 0725-596, 0725-602, 0725-604, 0746-134, 0746-140, 0746-144, 0746-167, 0746-178, 0746-192, 0746-210, 0746-211, 0746-214, 0746-215, 0746-231, 0746-232, 0746-233, 0746-234, 0746-245, 0746-259, 0746-260, 0746-405, 0746-416, 0746-428, 0746-441, 0746-442, 0746-443, 0746-762
Sekundær
2014-2015 style Big Fin clutch provides the highest rate of improvement on 2012-2013 models
Arctic Cat's testing showed the Big Fin clutch resulted in twice the durability
Has upgraded high-temp DuPont bearings in the cam and movable sheave
DuPont bearings withstand higher temperatures, making the clutch more free moving and less binding
Binding in a driven clutch hampers the shift pattern, resulting in pulling the belt apart
Added height to the fins, pumps more hot air out of the clutch compartment, allowing more cool air in
The larger fins keep the belt and clutches operating up to 30% cooler
When installing this clutch the offset will need to be checked, and corrected if necessary, with an alignment bar
Direct replacement for the following models:
2014-2015 XF 800 High Country
2014-2015 M 800
Can be used to update the following models:
2012-2013 XF 800 High Country
2012-2013 M 800
Primary clutch
secondary clutch
Drive clutch
Driven clutch
Primær variator
Sekundær variator
