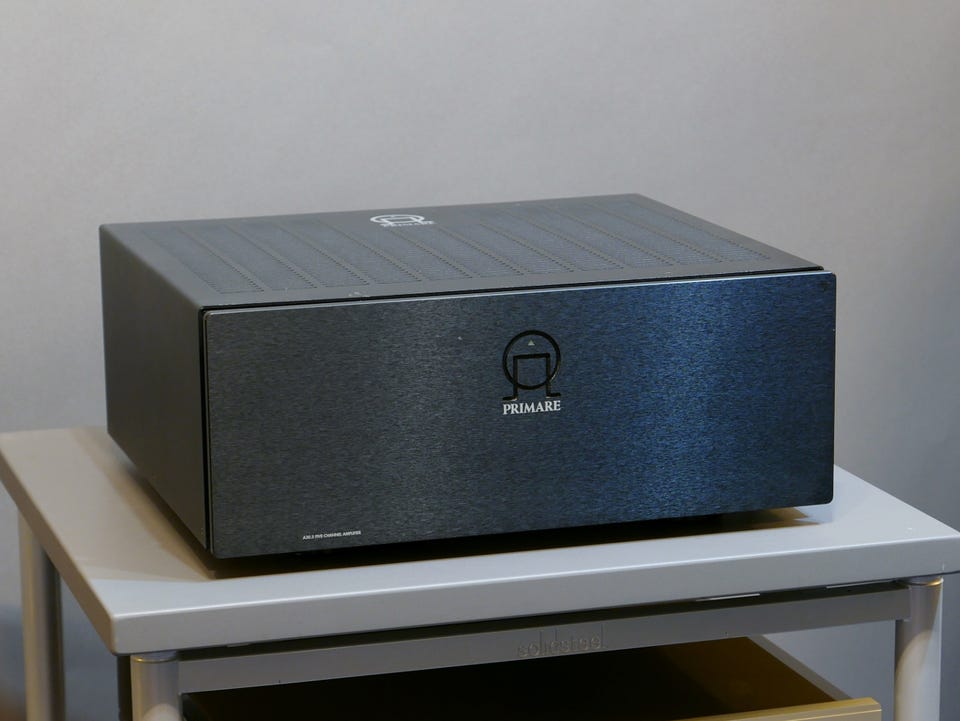

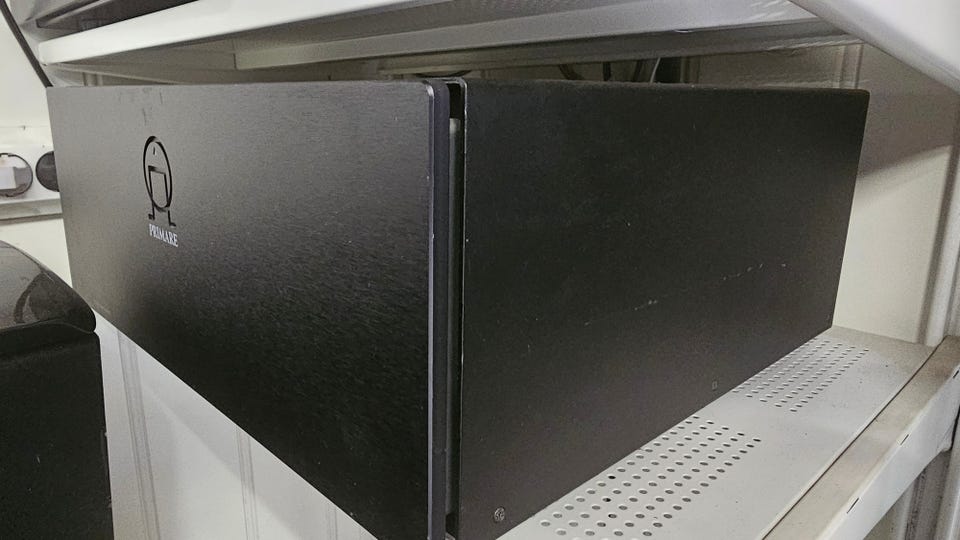

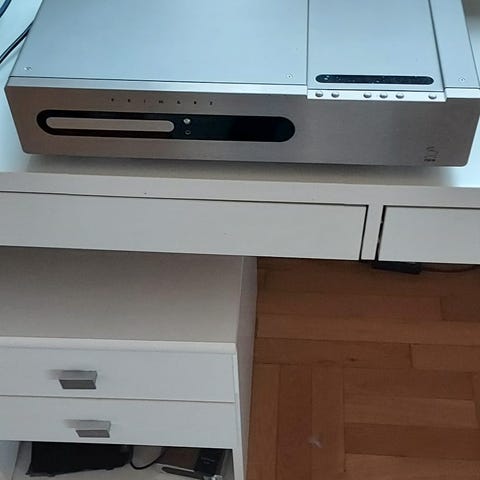

Primare 30.5. High End
Solgt
Til salgs
6 000 kr
Beskrivelse av varen
Tilstand: Pent brukt - I god stand
Pent brukt.
Virker som den skal.
Ble byttet kondensatorer I den for noen år siden hos Juls hifi.
Hatt denne siden 2004.
Kom på markedet i 2000 ish.
Tross alder spiller denne fortsatt meget bra.
5 separate mono forsterkere m egne trafoer.
Kan vel betegnes som vintage High End, med 5 separate mono forsterkere med egne strømforsyninger.

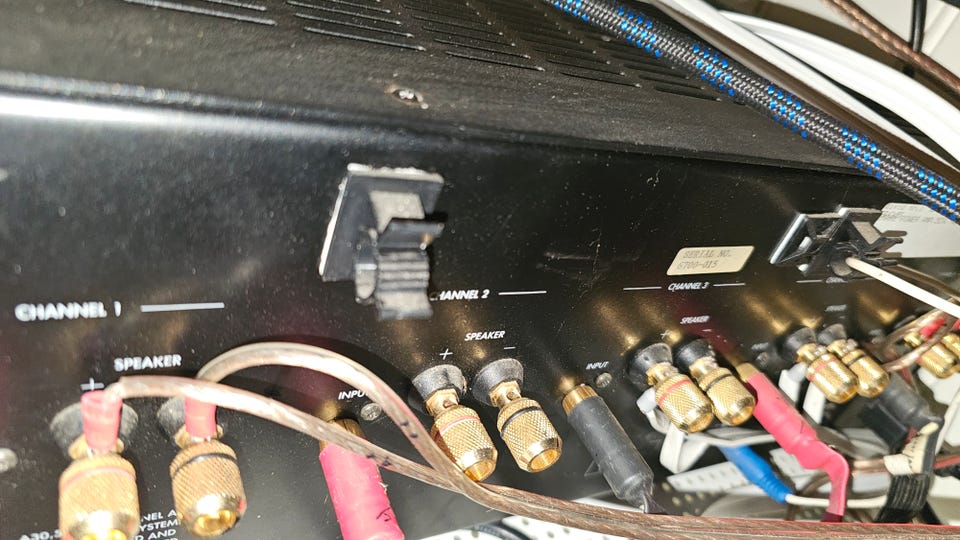

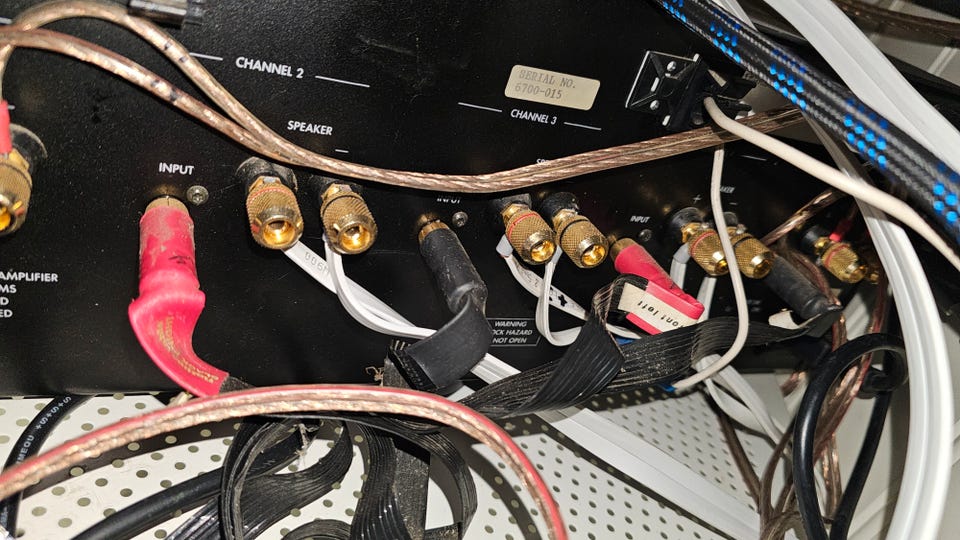

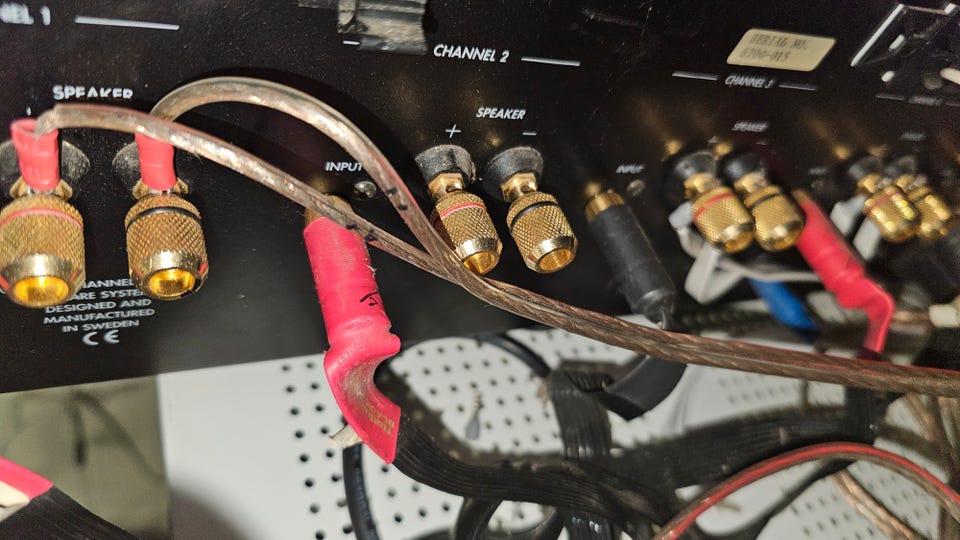

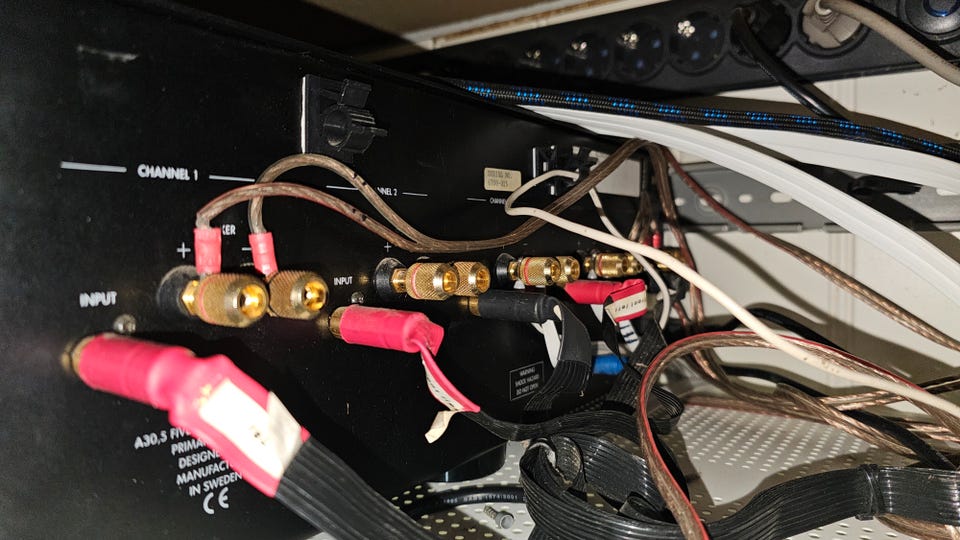

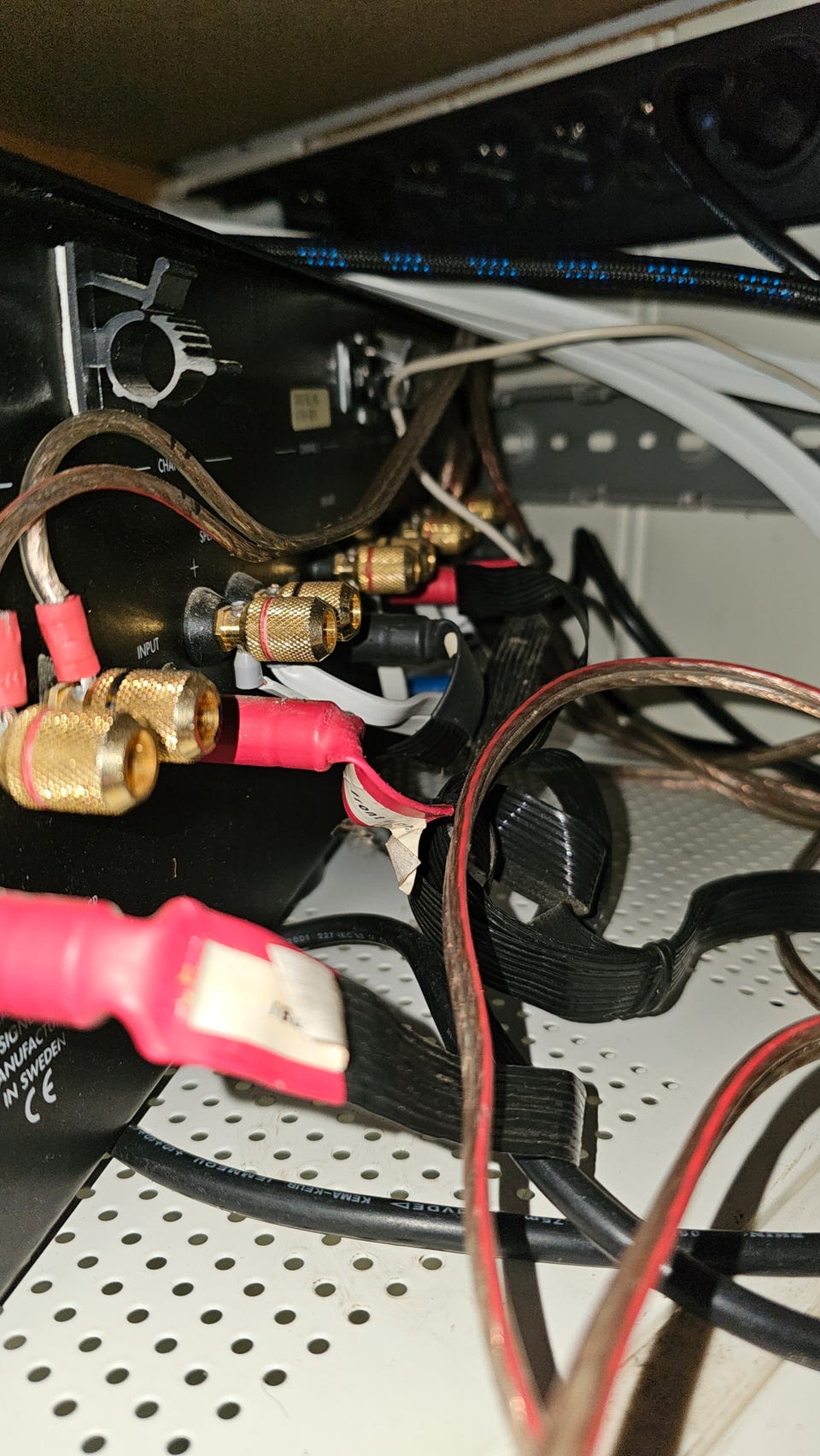

Litt rotete bilder av baksiden siden den er tilkoblet.
Er fortsatt til salgs om annonse er ute.
Ikke fiks ferdig.

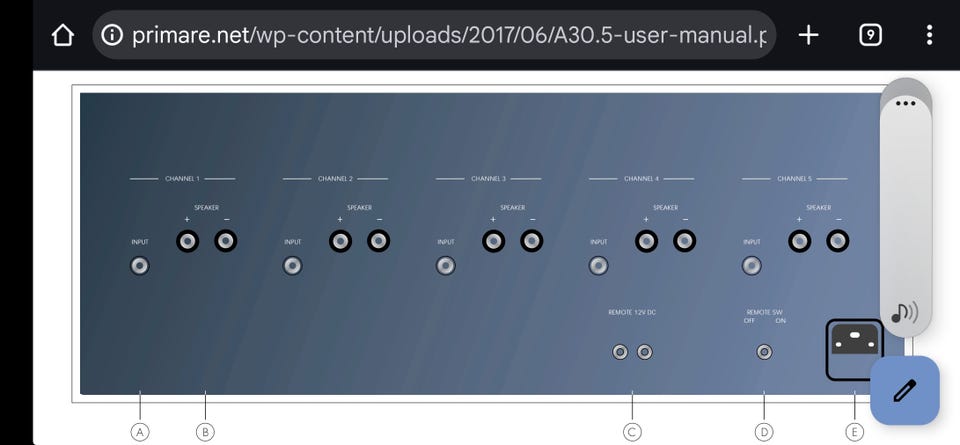

https://www.primare.net/wp-content/uploads/2017/06/A30.5-user-manual.pdf
https://www.hifiengine.com/manual_library/primare/a30_5.shtml

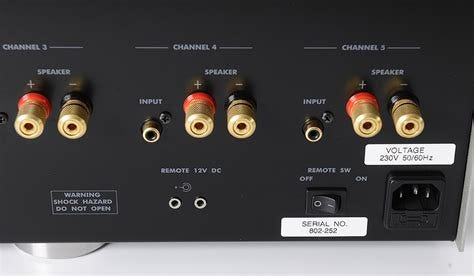

Lånt fra nett :
The A30.5 is a modular power amplifier designed as the ideal output stage in a home theatre system. The A30.5 is designed as five independent blocks, each with a separate transformer and power supply, for the ultimate in stability and channel separation. Each section of the A30.5 delivers 120 Watts into 8, giving sufficient powerreserves for home cinema or the reproduction of recorded music. An overdimensioned heat sink gives excellent thermal dissipation. The A30.5 delivers its power at an outstanding quality level, making it assuitable for reproducing high quality recorded music as for home cinema."
Power Amps A30.5 MKII, A30.3MKII
The A30.5 and A30.3 are respectively five and three-channel modular power amplifiers,
designed as ideal output stages in a home theatre or hi-fi system.
Audiophile circuit design

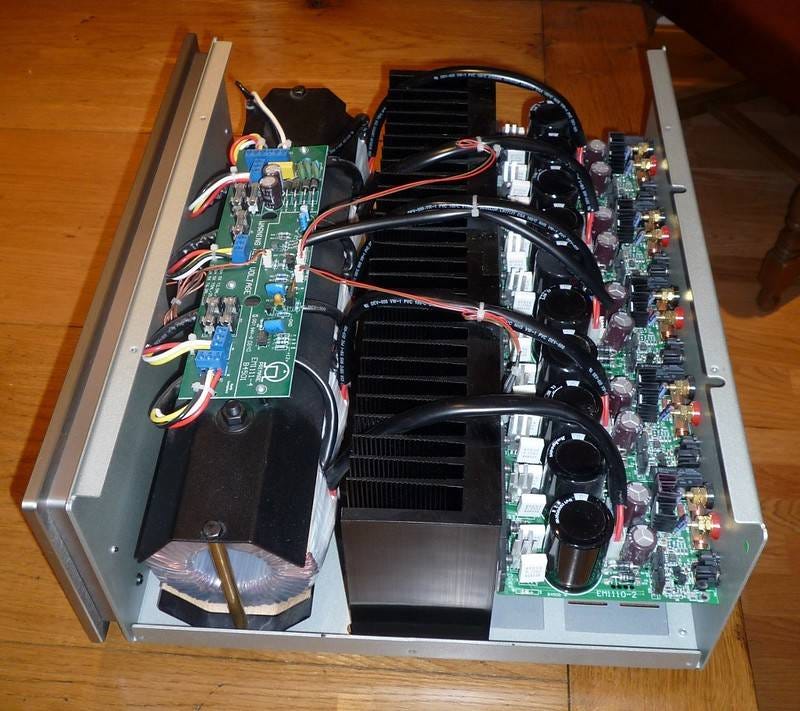

The A30.5 and A30.3 power amplifiers incorporate five and three discrete compact mono
channels respectively, each with a separate transformer, power supply and protection circuit
for the ultimate in stability and channel separation.
The input stage of each channel consists of a single FET transistor and the output of four
Toshiba power transistors. The heat sinks are massive to keep the temperature at moderate
level even at the most difficult working conditions.
Each channel amplifier is capable of delivering 120 watts into an 8 ohms load and
incorporates full speaker protection against faulty input signals. One individual DC-servo for
each channel together with a protection circuit and temperature monitoring provide state-of-
the-art protection.
Audio connections
Each channel incorporates an unbalanced RCA input and massive high quality gold plated
speaker terminals suitable for most audiophile speaker cables.
Both the A30.5 and A30.3 amplifiers can be remotely operated from a 12V trigger input.
Shortest signal paths
Both amplifiers incorporate SMD technology whenever possible for the shortest signal paths,
promoting the highest sonic performance.
Clean power supply for the best possible performance
Each channel amplifier has its own toroidal transformer and a massive electrolytic bank of
20000uF. The driver stage of each has separate transformer windings and regulation in two
steps. This configuration produces a high signal to noise ratio and reduces cross-talk from
other channels.
Careful design for operational stability
As with all Primare units, the A30.5 and A30.3 are housed in an alloy heavy gauge steel
chassis, which provides strength, rigidity, and screening, while being effective at damping
vibrations from external sources.
Ikke bytte forslag.
Byttes ikke mot annet enn penger.
Sending kan diskuteres.
