Cypress De-Embedder HDMI 4K 3D 7.1 HDMI til HDMI Analog 7.1 Digital TOSLINK
Til salgs
500 kr
Beskrivelse av varen
Tilstand: Som ny - Ikke synlig brukt

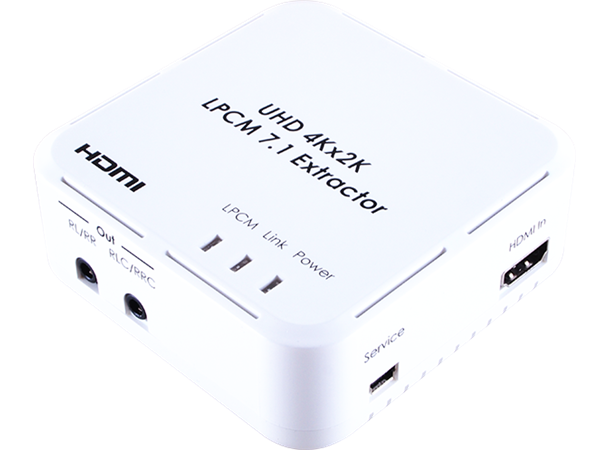

The HDMI ™ 4K×2K LPCM Extractor allows you to de-embed the audio signal from an HDMI source and output it. With this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or multi-channel audio, allowing you to output your audio signal to an external multichannel audio system or to extend your audio signal pathway. It also has the added benefit of 4K×2K and 3D support, allowing full resolution video and eliminating the need to downscale the image.
•Compliant with HDMI, HDCP 1.2 and DVI 1.0
•Supports HDMI audio sampling rates up to 192 kHz
•Supports Optical (S/PDIF) digital audio sampling rates up to 192 kHz
•HDMI supports high-bit-rate (HBR) audio
•No HDMI output connection is required for analog or optical audio output
•Supports 4 mini-jack sockets for analog multi-channel audio output
•Supports maximum input and output HDMI cable lengths of up to 15 meters each at 1080p/8-bit resolution or 10 meters each at 1080p/12-bit or 4K×2K resolution

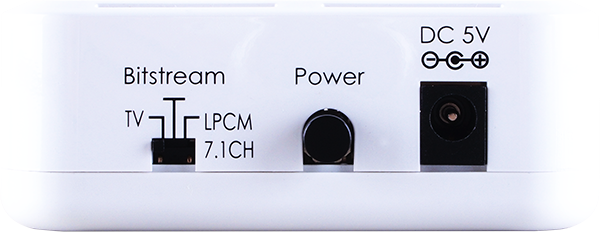

•Supports built-in audio EDID switching between LPCM 7.1CH, TV (external) EDID or Bitstream audio
•Supports CEC bypass function
•Supports 4K×2K resolution and 3D signals
Spesifikasjoner:
Inputs 1x HDMI [1x Uncompressed AV and Data]
1x USB Mini B [1x SERVICE Propriety Data]

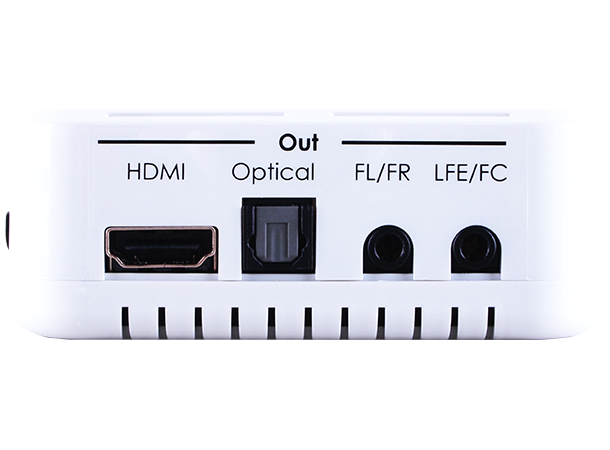

Outputs 1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x RearLeft(RL) & RearRight(RR)]
1x 3.5mm Stereo mini-jack [1x RearLeftCentre(RLC) & RearRightCentre(RRC)]
1x 3.5mm Stereo mini-jack [1x LowFrequencyEffect(LFE) & Front Centre(FC)]
PSU: 5V/1.2A
Dimensions 85mm [W] x 87mm [D] x 34mm [H]
Net Weight 102g
