3.5 inch CCTV Tester SMART-SR6 PTZ og Fiberoptisk Tester
Til salgs
Frakt fra 50 kr + Trygg betaling 76 kr
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Selges halv pris kr 1299,- før kr 3499,-

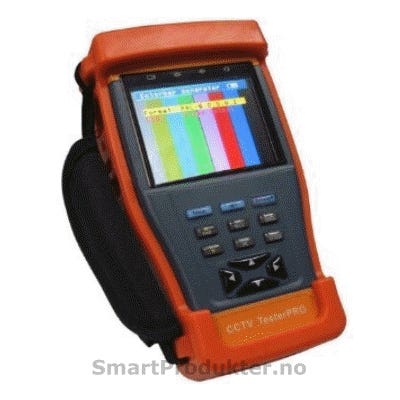

The handheld multi-functional CCTV and fiber optic tester is an ideal device for installers and field technicians to test video, PTZ function, and status of UTP cables conveniently and efficiently.The low power consuming tester contains a high resolution LCD screen and supports RS232, RS422 simplex, RS485 and multi-Protocol. The CCTV meter operation is simplified through its OSD menu and its power is supplied via the included power adapter or internal battery. This handheld CCTV meter is specifically designed to perform well even under harsh environments including temperatures between -30℃ and 70℃ and relative humidity from 30% to 90%. 12V DC power output for camera test power.
Funksjoner
New keyboard with number buttons,easier operation
Testing the laser power of Video Fiber Optic Transmission equipment and Fiber Optic Patch Cord.
Video test function,high resolution LCD screen
PTZ control and test function
Support RS232,RS422 simplex,RS485,etc
Ideal for trouble shooting system setup/fault location
Low power consumption
Battery pack provides 6hrs continuous operation
Snap-on battery pack holds 4pcs of AA Ni-MH rechargeable batteries (batteries included)
UTP cable test function
1 channel video generating function
Powered by power adapter or battery
12V DC power output for camera test power
Low consumption, battery power status
Tekniske data
Model Number CCTV Tester SMART-SR6
Signal System NTSC / PAL (Auto-Selecting)
Display 3.5 inch TFT-LCD
Resolution 960 x 240 (H x V)
LCD adjust Adjustable brightness, contrast, color of LCD
Video Input / Output 1 channel BNC input & 1 channel BNC looped output
Video Level Test Video signals measured in IRE or mV
Power Adapter 5V DC, 2A input supply
Power output 12V DC, 1A supply
Audio input 1 channel Audio input
Communication RS232, RS422 simplex and RS485
Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Power Saving Features Sleep mode, Battery level indicator
PTZ Address Scanning Scan for local PTZ address over data cables
Rechargeable Battery 4 hours charge, work for 12 hours
Battery 1 pcs Lithium Ion Polymer Battery; 3.7V DC, 3000mAh
Video Display Displays video signal from analog input
Video Signal Generation Color bar generator for monitor testing
UTP Cable Test Checks connections of UTP cables
PTZ Protocol Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye etc.
PTZ data Capture Reads and displays commands sent from controllers
Fiber Optic Power Meter Testing the laser power of Video Fiber Optic Transmission equipment and Fiber Optic Patch Cord.
Dimension 185mm x 110mm x 40mm
Gross Weight 970g
CE, FCø
