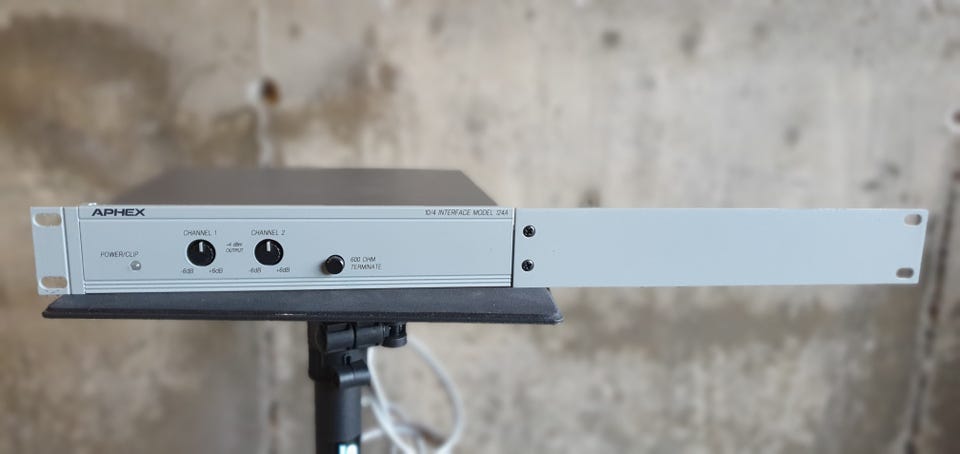

Aphex 124A 10/4 Audio level interface
Til salgs
Fiks ferdig
400 kr
Frakt fra 99 kr + Trygg betaling 46 kr
Trygg handel med Fiks ferdig
Varen sendes til deg, og du har 24 timer til å inspisere den før pengene overføres til selgeren.
Beskrivelse av varen
Aphex 10/4 Audio Level Interface
kjøper betaler evt frakt.
Ingen bytter.
info:
The Aphex 10/4 Audio Level Interface, Model 124A, is a dual, bi-directional buffer amplifier designed to provide level and impedance matching between consumer hi-fi equipment and professional, as well as industrial, audio systems. It features a simple, high-quality interface design without added noise, distortion, or instability that can result from an improper hookup. It is designed to allow use of -10dBV consumer hi-fi equipment with +4 or +8dBm professional/industrial/broadcast audio systems. It provides an extremely clean, reliable two-way buffer so both systems can operate at maximum performance levels, matching impedances and operating levels.
The Model 124A is ideal for interfacing with digital disc and tape recorders, audio cassette recorders, graphic equalizers, reverb and ambience devices, noise reduction systems, electronic crossovers and power amplifiers.

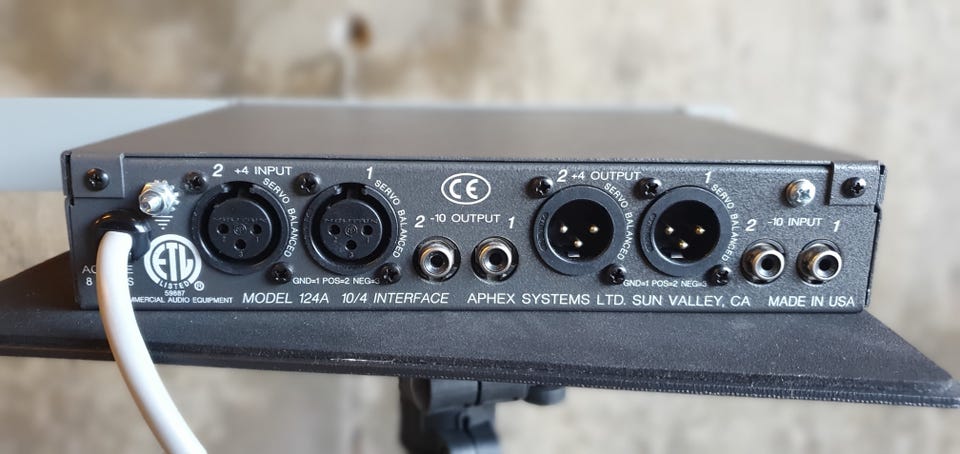

IHF Inputs: RCA jacks
IHF Outputs: RCA jacks
Balanced Inputs: XLR type
Balanced Outputs: XLR type
IHF Input Level: 10 dBV, peaks +15 dBV (Ref: 1.0 VAC)
IHF Input Impedance: 18 kOhms
IHF Output Level: 10 dBV, peak +18 dBV (Ref: 1.0 VAC)
IHF Output Impedance: 150 Ohms
Balanced Input Level: +4 dBm (front panel adjustable +/-6 dB, peak +25 dBm)
Balanced Input Impedance: 100 kOhms (from panel switchable 600 ohm load)
Balanced Output Level: +4 dBm (front panel adjustable +/-6 dB, peak +25 dBm)
Balanced Output Impedance: 65 Ohms
THD: 0.005%
Dynamic Range: 99 dB
Bandwidth: 5 Hz to 100 kHz, +0, -0.5 dB
Common Mode Rejection: >45 dB
Power: 100, 120, 220 or 240 VAC
Fuse: Thermal
Dimensions: 1.75" x 8.25" x 7.25"
Weight: 3.5 lbs
