Power Supply - 0-660VDC - Delta Elektronika - SM660-AR-11
Til salgs25 000 kr
Beskrivelse
Pent brukt som lab power supply

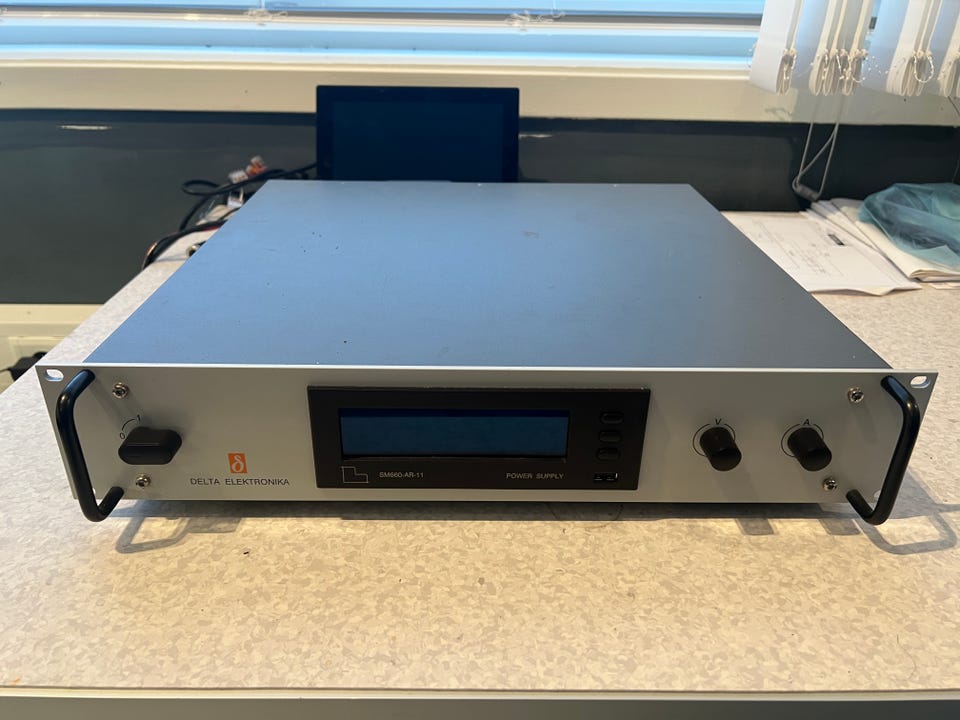

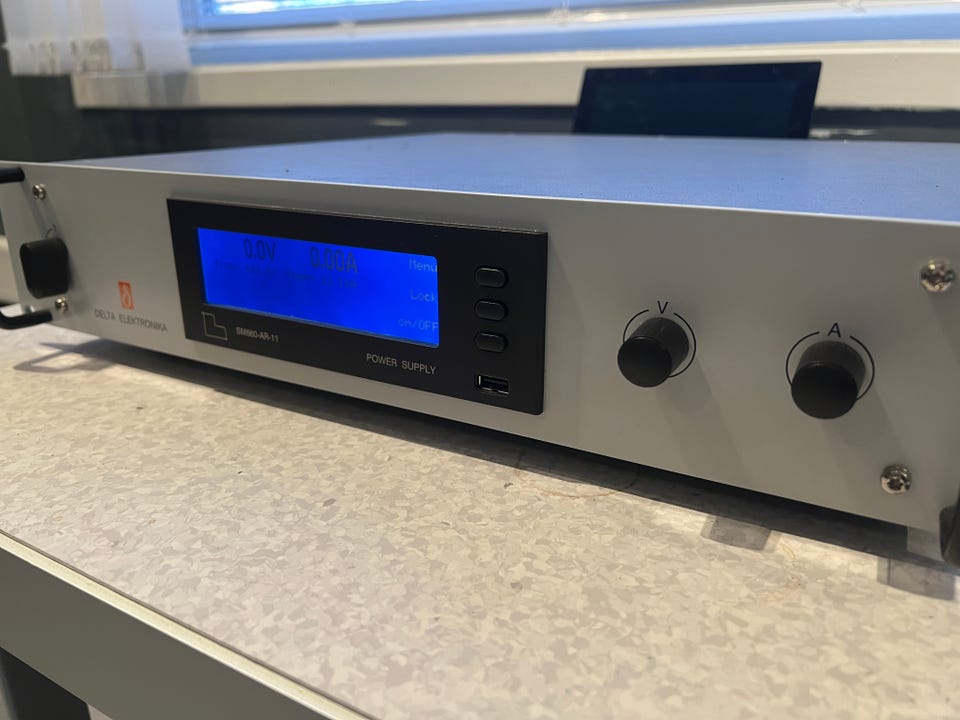

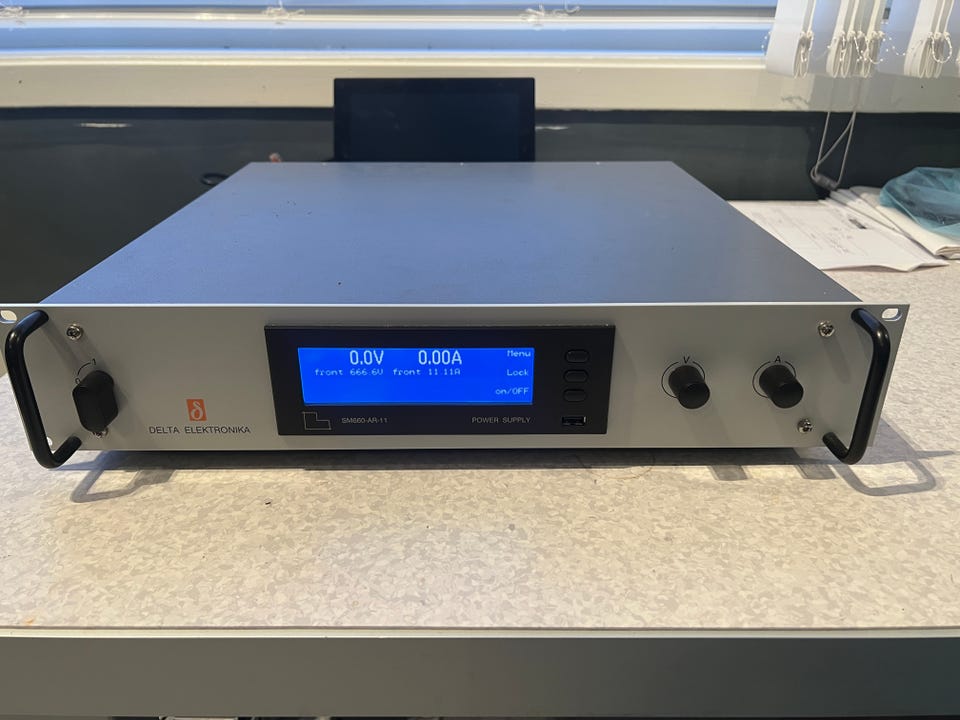

Delta Elektronika SM660-AR-11 DC Power Supply
SM660-AR-11 (0-330V 0-11A or 0-660V 0-5.5A) DC Power Supply.
Features:
Designed for long life at full power
Excellent dynamic response to load changes
Protected against all overload and short circuit conditions
EMC surpasses CE requirements: low emission and high immunity
Low audible noise: fan is temperature controlled
High Voltage isolation up to 1320V
Operation on single and three phase input voltages
Standard Ethernet Interface including sequencer
Large user display, menu driven operation
Durable digital encoders for voltage and current adjustment
Plug&Play optional interfaces
Specification:
Input Voltage (Single and 3 Phase): 180-528V AC (Single or 3 phase 48-62Hz), derating at low input voltage
Active Power Factor Correction (PFC): up to 0.99 (at 100% load)
Efficiency: up to 92% (at full load)
Output ripple and spikes: from 3 mV rms / 12 mV pp
Regulation: from 2.5 mV
Recovery time: from 100 µs (50-100% load step)
Programming speed: From 1.6ms (10-90%), optional from 0.2ms
Output voltage and current stability: 6.10-5 / 9.10-5
MTBF: 500.000 hrs
https://www.deltaelektronika.com/products/sm3300-series#models
Delta Elektronika SM660-AR-11 DC Power Supply
SM660-AR-11 (0-330V 0-11A or 0-660V 0-5.5A) DC Power Supply.
Features:
Designed for long life at full power
Excellent dynamic response to load changes
Protected against all overload and short circuit conditions
EMC surpasses CE requirements: low emission and high immunity
Low audible noise: fan is temperature controlled
High Voltage isolation up to 1320V
Operation on single and three phase input voltages
Standard Ethernet Interface including sequencer
Large user display, menu driven operation
Durable digital encoders for voltage and current adjustment
Plug&Play optional interfaces
Specification:
Input Voltage (Single and 3 Phase): 180-528V AC (Single or 3 phase 48-62Hz), derating at low input voltage
Active Power Factor Correction (PFC): up to 0.99 (at 100% load)
Efficiency: up to 92% (at full load)
Output ripple and spikes: from 3 mV rms / 12 mV pp
Regulation: from 2.5 mV
Recovery time: from 100 µs (50-100% load step)
Programming speed: From 1.6ms (10-90%), optional from 0.2ms
Output voltage and current stability: 6.10-5 / 9.10-5
MTBF: 500.000 hrs
https://www.deltaelektronika.com/products/sm3300-series#models
