107cm LED 50W = 500W normal-lys 1699:-
Til salgs1 699 kr
Beskrivelse

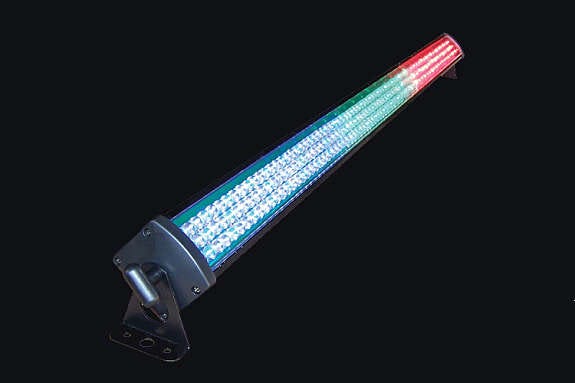

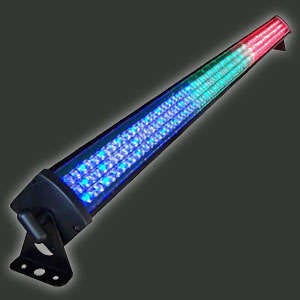

107cm LED-ljusramp 50W (=500W glödljus) för scen, skyltfönster, reklam, miljöbelysning av vägg, fond, disco. 13-kanals DMX. 252 extra ljusstarka 10mm LED:s mixar rött, grönt och blått i 16,7 miljoner olika färgnyanser. Strob. Mikrofon. Musikstyrning. Elektronisk dimmer. IMPORTPRIS DIREKT FRÅN FABRIK!
252st extra ljusstarka 10mm lysdioder
108 röda, 72 gröna, 72 blå LED
60-100.000 timmar LED max livslängd
35 • strålningsvinkel
16,7 miljoner färger (24 bitar)
Vit eller fyrfärgs strob, blixthastighet 1-13 blink per sekund
Driftslägen: Master / slav, automatprogram, musikstyrd via inbyggd mikrofon, DMX512
DMX-kanaler: 13
Högsta temperatur: 60℃
Max. strömförbrukning: 50W
90-250V AC, 47-63Hz
Storlek: 107 x 6.5 x 8.5 cm
Vikt: 2.3 kg
The LEDs used are a mixture of red,green, and blue to produce, via RGB electronic mixing.
Electronic dimmer for light output adjustment from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash rate 1-13fps
Operation modes: Master/Slave,Stand alone,Sound active,DMX512
Control channels: 13
Please hang this light into the suitable place with suitable angle (if operate this light in external place,
please remember to get some water-proof cover to protect them)
To connect the cable and put into power, then the light stay in the status to receive the operating
signal like: music, Automatic, DMX512 etc. Take note: Please cut off the power line if you will not
operate it for a certain time.
To connect the signal cable, plug one side into IN socket in the back of light and plug another side
into OUT signal connector in the DMX512 board, (signal input: 1=>Ground, 2=>data-, 3=>data+ )
C Function
Automatic model(stand alone):7 color change/7 color strobe/7 color Automatic
changing /7 color automatic fade in and fade out / 7 color chase/ sound color changing
Synchronization model (master and slave)
DMX-512 Model
D Maintenance
Use the soft cloth to clean the light and check if the screw is loose or not during certain
period, if loose, please fix them tightly.
E Working place
Indoor, temperature: -20-- 45 humidity 0 90
Remarks: function 1. 2. 3 will be fold to run 7 color, function 7 will adjust the music
sensitivity via potentiometer knob.
Synchronization /master and slave (dip switch as below):
Master light: dip switch same as auto model way.
All slave lights: press NO.1 and NO.10 to ON, other NO2-NO9 stay on OFF
status.
Special manual controller:
Please connect the controller with the light through a XLR3 pin cable, dip NO.1
and No.10 switch to ON status for all units, other NO.2-NO.9 switches are stay
off status .
DMX-512 Model
This light have 13 DMX512 channels, please reference the below function
channels:
Ch1: function selecting:
0-10 dimmer ( Ch2-Ch13 dimmer valid )
11-51 strobe (Ch2-Ch13 dimmer valid)
52-91 Light in and light out(Ch2-Ch13 no valid)
92
CH2: 0-255 all Red dimmer
CH3: 0-255 all Green dimmer
Ch4: 0-255 all Blue dimmer
-131 auto color change(Ch2-Ch13 no valid)
132-147 chase1,148-164 chase2,165-181 chase3,182-198 chase4,
199-215 chase5,216-232 chase6,233-255 chase1- chase6.
Ch5-Ch13: 0-255 are the adjustable brightness from segment 1 to segment3
in red ,green and blue color.
G Specification:
1 Input power:AC100 240V/50-60Hz
2 Total power: 50W
3 10mmLEDs: 252pcs (red / 108pcs, blue / 72pcs, green / 72pcs ) (Angle:30)
4 House size 107 6.5 8.5cm
5 Net/weight 2.3Kg
6 1pcs/carton: 108 x 12 x 11.5 cm
7 Gross/weight 3Kg
8 Shipping size ( 6pcs/master carton): 109 39 26cm
