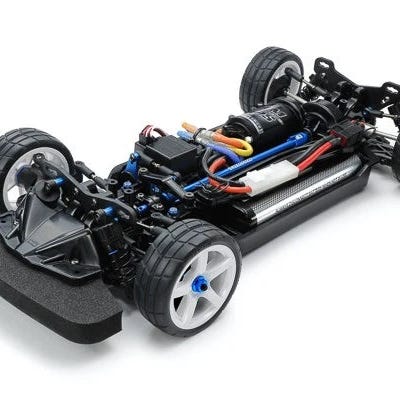

TT-02SRX TYPE CHASSIS

TT-02 Type-SRX Chassis Kit er en oppgradert versjon av TT-02 Type-S-serien med forbedret holdbarhet og ytelse for racing.

Dette er en flott førstegangsbil for den som ønsker å prøve seg på RC-Racing

Dette chassis -settet bruker elementer 22049 og 22047 med oppdaterte deler. Deler inkludert i dette kit’et ble også valgt for brukere som ønsker å lære oppsett før de går videre og klatrer oppover stigen til Tamiya-chassissett på mellomnivå. (Mer kostnadseffektivt enn å kjøpe hver del hver for seg)

Detailed Images


?The kit comes with a hi-torque servo saver as standard, to help protect the servo and steering linkage from damage.
?TRF420 design suspension arms and uprights are employed, with drouble cardan drive shafts.
?Dampers have a choice of three each of upper and lower attachment points: fine-tune to your heart’s content!



?The front direct coupling gives stable handling, and here is paired with durable, dedicated joint cups.
?An aluminum propeller shaft is joined by propeller joints designed specially for use with the included plastic anti-wear caps.
?The rear oil gear differential features lightweight yet durable alumiunum joint cups.


?Left: The rear suspension setup can be altered using plastic bushings in the mount, fine-tuning toe and skid angles.
?Right: Rear 39mm drive shafts have been given a low-friction, highly durable hard coating.



?Left: Dampers have 6 upper and 3 lower attachment position options.
?Right: 5-spoke wheels are paired with blue anodized 4mm flanged lock nuts.

Included Hop-up Option Parts

Item 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
Item 22049: XV-02/TT-02 Oil Gear Differential Unit
Item 22047: XV-02/TT-02 Front Direct Coupling Set (39T)
Item 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)
Item 54886: TRF419 Suspension Upgrade Set
Item 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
Item 54501: TT-02 Aluminum Propeller Shaft
Item 54500: TT-02 High Speed Gear Set (68T)
Item 53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
Item 53576: TRF Damper Oil Seal (4pcs.)
Item 42357: Cross Joints for Low Friction Assembly Universal Shafts
Item 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)
Item 42143: 4mm Aluminum Serrated Wheel Nut (4pcs. /Blue)

• 1/10 scale R/C chassis assembly kit.
• The rear oil-filled diff gear unit and front direct spool ensure ease of assembly and stable drivability.
• Diff. joint cups are lightweight aluminum and give a weight reduction of 7.8g compared to Item 22049’s standard ones.
• Direct cups are designed for this chassis kit for improved durability.
• This chassis kit features dependable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup options.
• Newly shaped propeller joints are compatible with swing shaft protectors. These parts use plastic parts at joint sections with stainless pins and aluminum joints to limit wear of parts.
• Uses Item 22054 37mm Drive Shafts which allows stable steering and cornering for superior performance at races.
• Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
• High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
• Included TT-02 hi-torque servo saver allows steering angle limit to prevent damage of steering servo.
• Includes full ball bearings.
• Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.
• Required tocomplete: 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery with compatible charger, body, and tires.
