Haibike AllTrail 4

Haibike AllTrail 4

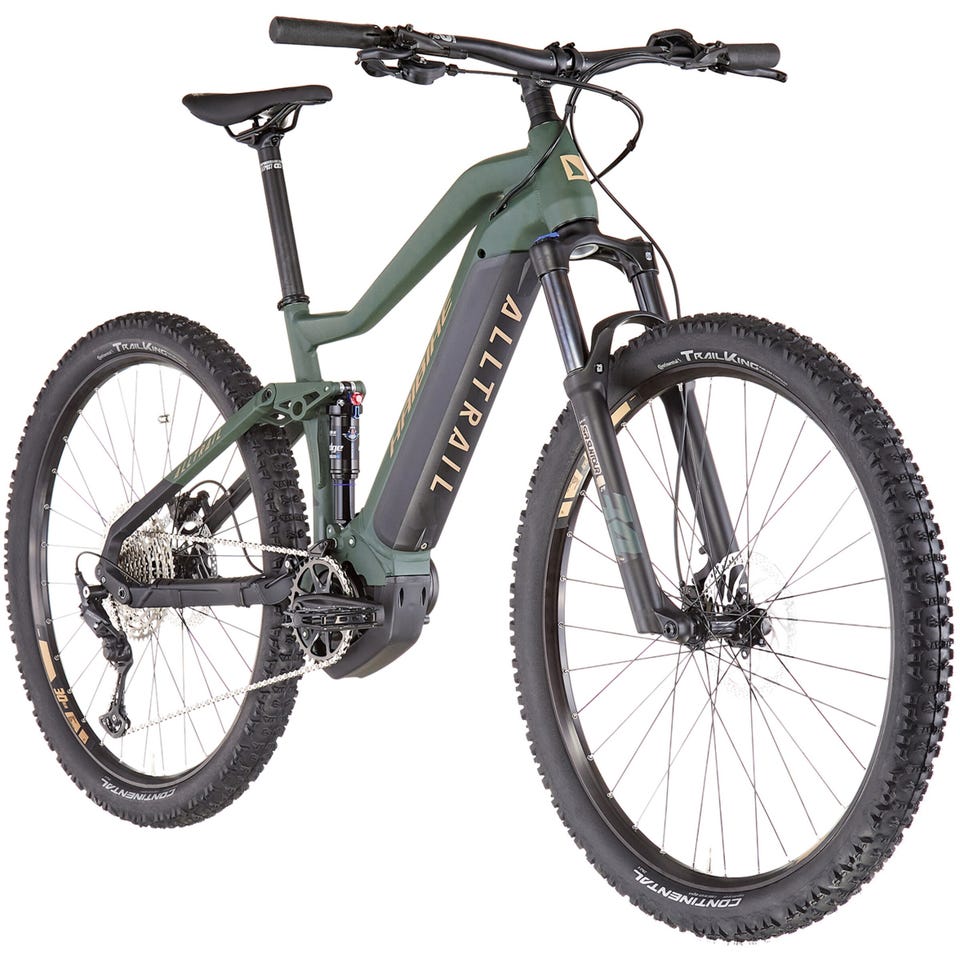

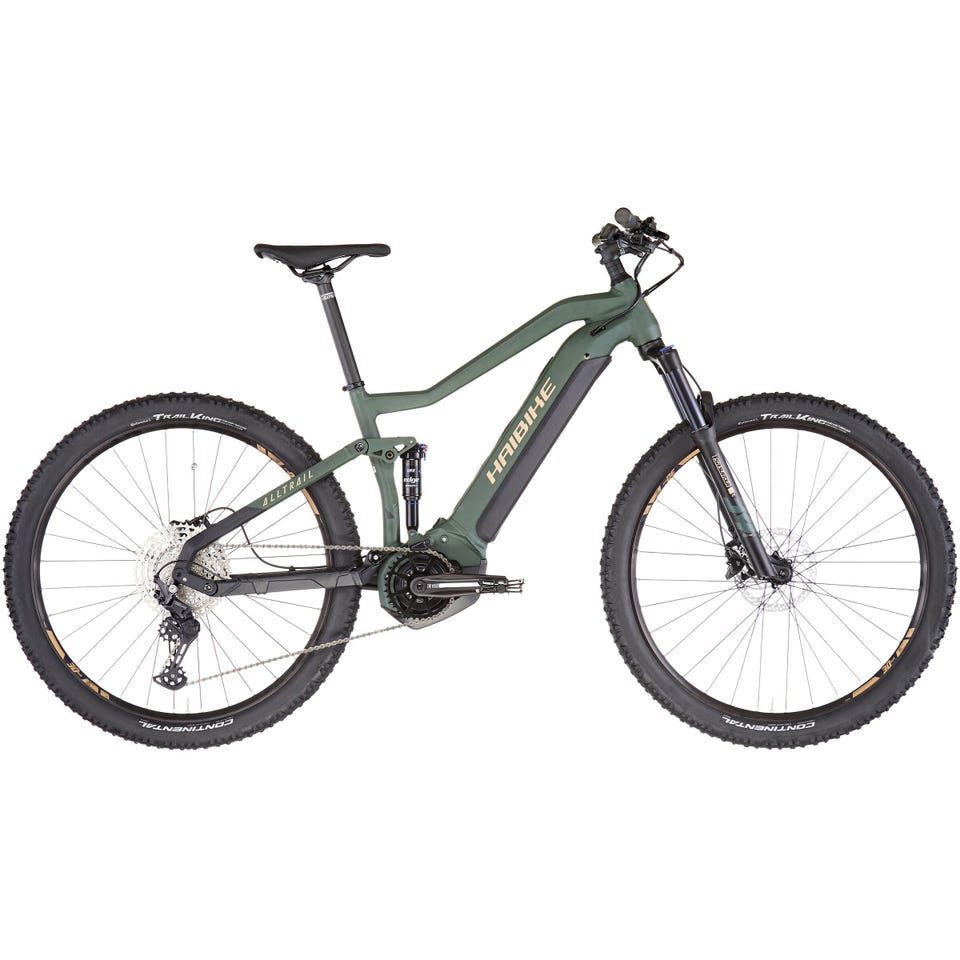

The 2022 AllTrail 4 27.5 not only looks good, but also cuts a fine figure in more demanding terrain. Uphill, the Yamaha PW-ST drive with integrated 630 Wh battery supports you powerfully from the first step on the pedals. With the reliable brake and gear components from Shimano, you have your bike under control in every situation. A suspension travel of 140 mm at the front and a full 150 mm at the rear ensures sufficient comfort even on rougher descents.


Key Features:
- Frame material: Aluminium
- Drive unit: Yamaha PW-ST System, 70Nm, 25km/h
- Battery: InTube 630Wh

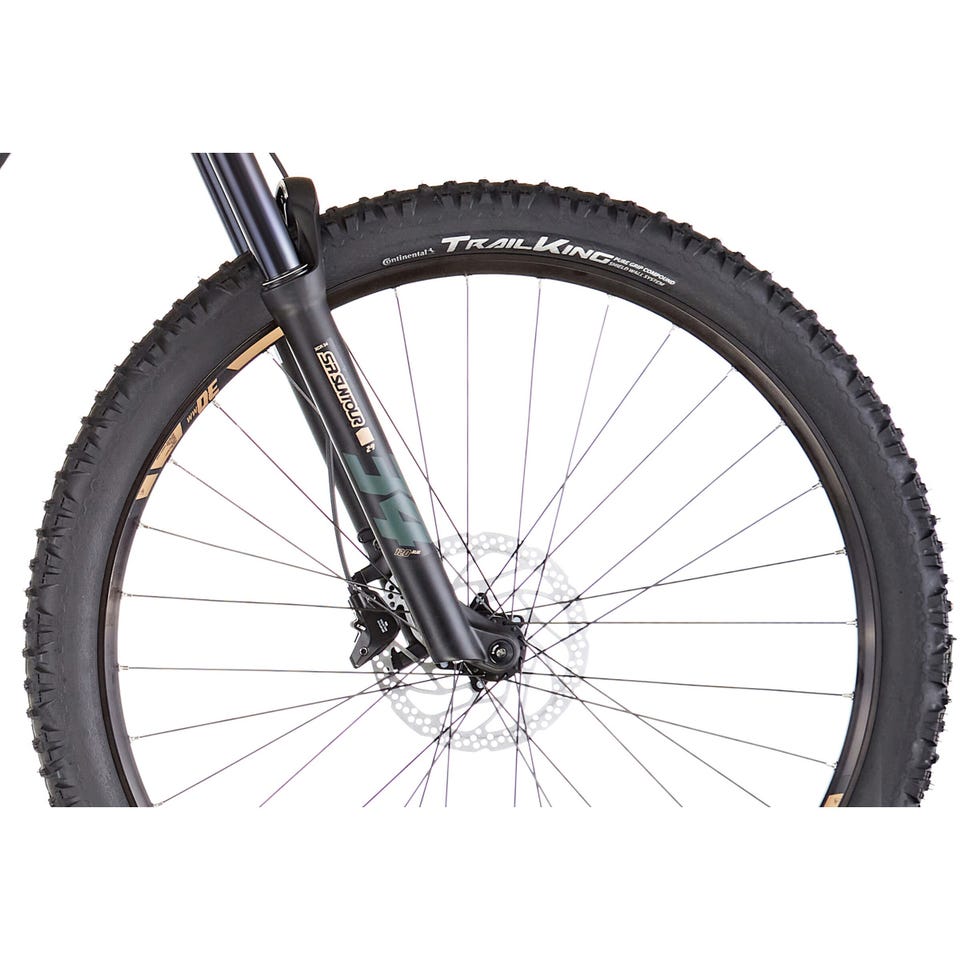

- Fork: SR Suntour XCR34 COIL LO, Travel: 140mm

Specifications:
- Drive unit: Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h
- Display: Yamaha, Side Switch, 1.7" LCD, 7 functions
- Battery: InTube, 630 Wh
- Frame Family: Haibike, FullSeven Yamaha i630, Aluminium 6061
- Fork: SR Suntour, XCR34 COIL LO, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- Damper: SR Suntour, Edge LO-R8, Air, Trunnion Mount
- Crank arm: Haibike Components, The Crank +, Aluminium
- Brake (Front): Shimano, MT410, Hydraulic disc brakes
- Brake (rear): Shimano, MT410, Hydraulic disc brakes
- Tube: Presta valve
- Rim: Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
- Clamping ring: Internal hexagon, 34.9 mm

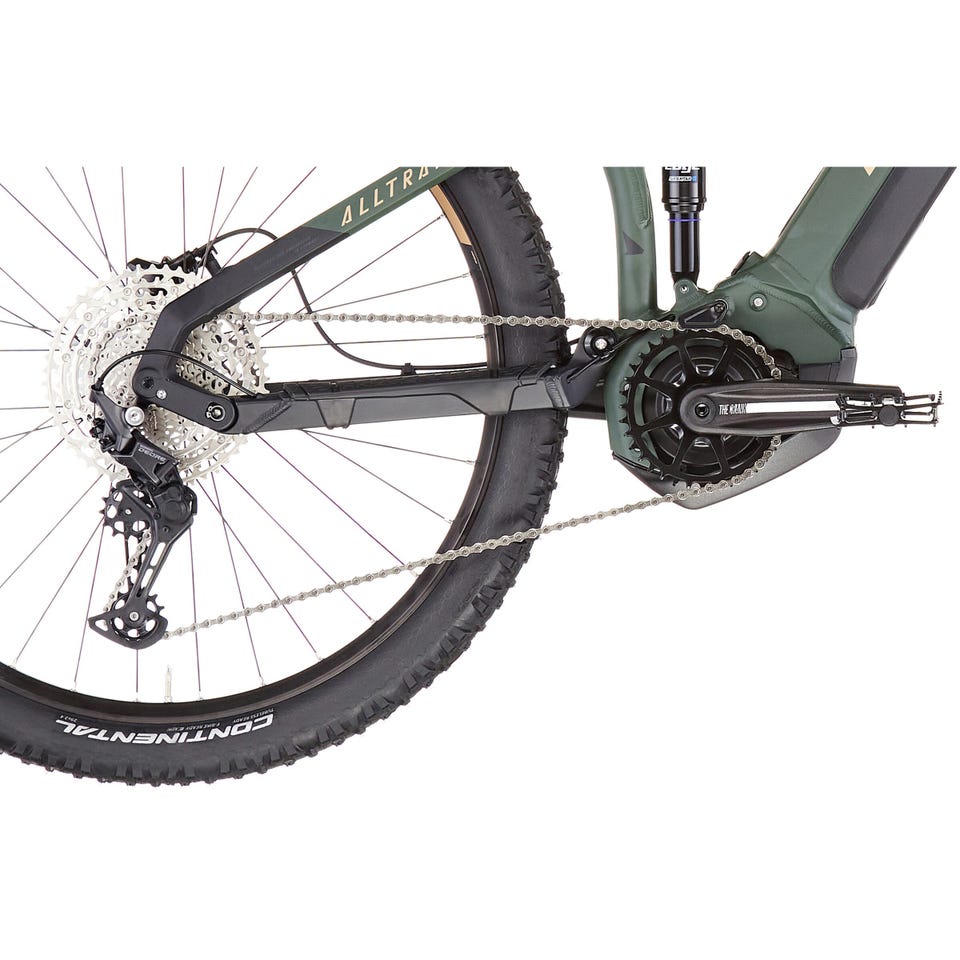

- Rear Derailleur: Shimano, Deore M5100
- Shift lever: Shimano, Deore M5100, Trigger switch
- Bottom bracket: integrated in the motor
- Sprocket: Shimano, M5100, 11 - 51 teeth
- Chain: KMC, X11e
- Cainring: Steel, 38 teeth
- Chain guide: Nylon directmount
- Brake lever: Shimano, MT401, Aluminium
- Brake disc (front): Shimano, RT30-M, 180 mm
- Brake disc (rear): Shimano, RT30-M, 180 mm
- Tyre: Continental, Trail King, 65-584, 27.5 x 2.6 inch
- Front wheel hub: Shimano, MT400-B, Centerlock
- Rear wheel hub: Shimano, MT400-B, Centerlock
- Spokes: Sapim, Leader
- Handlebar: Haibike Components, TheBar ++, 780 mm
- Grips: Haibike, MTB grips
- Stem: Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
- Headset: Feimin, A-Head Tapered, Ball bearing
- Saddle: Selle Bassano, Reko R2 E-Sport
- Seat post: Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
- Pedals: Freeridepedal, Aluminium, with Reflector
- Permitted total weight: 120.0 kg
