Alarm, GSM Alarm, alarmer, husalarm, innbruddsalarm, hyttealarm, tyverialarm

Veil. Pris: 3890.00
Nå Kun: 2999.00

Varenummer: 80



INTRODUKSJONSTILBUD PÅ AVANSERT OG SAMTIDIG ENKELT I BRUK ALARMANLEGG. Alarmsystem som sender sms ved innbrudd.
Sender umidelbart ( med en gang detektor er utløst ) Den ringer deg opp så i etterkant og du kan da automatisk avlytte stedet sentralen er plassert.
Koble opp mot din og eller flere mobiltelefoner. Fullstendig GSM alarmsystem som er komplett og klart til bruk.
Du trenger kun sette i SIM kort, og sette opp alarmen. Kan i tilegg brukes som vanlig telefon.
Alarmen kan aktiveres med og sende sms melding eller fjernkontroll.
Kan tilkobles flere andre detektorer som: brann, glassknus detektorer, gass lekkasje detektorer, innbruddsdetektorer. Slå alarm av og på med sms melding. Melding til foreldre med f.eks. funksjon som jeg er kommet hjem.
VELDIG ENKEL MONTERING!! ( PLUG AND PLAY ) Sett i sim kort. Sett på power og slå på alarmen. Den går igjennom systemet selv og sjekker at alt er ok.Slå systemet av igjen. Sett opp følere og magnetkontakt. Slå på systemet. Føler og magnetkontakt melder seg da automatisk inn. Har du kjøpt flere tileggskomponenter så sett jumpere lik som de andre inne i detektor. De melder seg så inn automatisk. Ønsker du stille alarm, i stedet for medfølgende kraftig sirene kobler du ikke på sirenen. ( kun en kabel )






Opptil 15 trådløse komponenter kan tilkobles til systemet.
Kobles opp mot 3 forskjellige telefoner.
Håndsettet på telefonen kan brukes som vanlig telefon.
Koble alarmen av og på med sms melding.
SOS - overfallsknapp på fjernkontroll som sender alarm til forhåndsprogrammerte telefoner.
Sender beskjed til bruker om feil i systemet som strømfeil og andre feil.
Backupbatteri 12 timer.
Elegant design og enkel og betjene.
Grunnpakken inneholder:Selve sentralen med innebygget GSM modul, 3 fjernkontroller, 1 trådløs detektor ( pir ), 1 magnetkontakt dør, sirene, GSM antenne, Strømadapter og manual på engelsk. Enkel montering.
Vi har mye tileggs systemer som kan kjøpes til systemet samtidig eller senere og ettermonteres. Sjekk tilbehør GSM ( alarmsystemer )
Brukes som vanlig telefon: ta av røret og slå nummeret. Det er også innebygget handsfree funksjon i systemet. Ved innkommende samtale er det nummervisning fra innringer. Ta av røret og svar eller trykk handsfree funksjon for snakke.

The GSM Alarm System S3524A is special for home, house and office and other applications. It based on GSM Communication network and Lcd Menu display technology. When any sensor triggered, it will Call&Send SMS to user cellphones.

Also, the Child Remote Control recognizer function is our unique technology, When the Child press its remote control button, the mainframe will send a SMS I m leave home now or I m come back home now to his father or mother!

The GSM Alarm System S3524A equips with LCD and all operation Menus Displayed, all operations and settings are visual and intuitive!

What you need is a SIMCard which support Call ID function.

What advantages of the GSM Alarm System S3524A?
1. Easily to operate;
2. Easily to set up, all the set up are displayed by the LCD instructions;
3. Black List in order to avoid harassments;
4. Alert message can be edited by user self;
5. Supports Pre-set Message, Message inbox, Message Outbox,etc;
6. Panic Button(SOS), in order to emergercy ask for help.

Functions & Features of the GSM Alarm System:
Æ Tri_band 900/1800/1900MHZ;
Æ Can arm or disarm by SMS or remote control or mainframe keyboard;
Æ Automaticed send SMS Alert to pre-setcellphone when it triggered;
Æ Automaticed dial Pre-set alarm phone numbers when it triggered;
Æ Supports up to 15 pcs wireless sensors, each sensor can be named by user;
Æ Supports 3 alarm telephones;
Æ Supports Pre-set Message, Message inbox, Message Outbox,etc;
Æ With Handset and dialer, the functions like the Cellphone;
Æ Supports wiretap through internal Mircophone;
Æ Supports SMS Operation report, when armed or disarmed by SMS, the mainframe will reply a SMS to user s cellphone;
Æ More Programmable to set its features, e.g.: delay time, named the sensor names, send SMS to users or not when power failure, turn on siren or not, etc;
Æ Standby internal rechargeable battery which can last 12 hours;
Æ Based on the GSM communication network and Operation Menu Display technology, apply to wide range situations;
Æ Elegant designs and easy to operate.

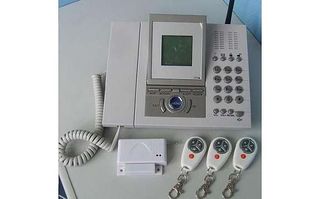

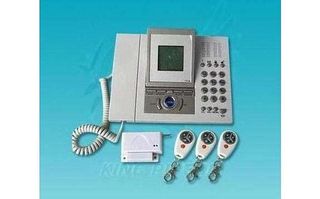

Standard Package list of the GSM Alarm System
Mainframe X1
Remote contol X3 (One is special for speical person use, e.g.: child, old person,)
Wireless PIR Motion Sensor X1
Wireless Door magnetic Sensor X1
Wired Siren X1
GSM Antenna X2
AC/DC AdaptorX1
User Manual X1

Optional Accessories:
Combined Light and Siren PIR Motion Sensor Glass Break Sensor
Magnetic Window Sensor Magnetic Steel Scrolling Door Sensor
Infrared Beam Fence Wireless Strobe Siren
Our Other Wireless Sensors


Specifications of Mainframe of the GSM Alarm System
Rated Voltage: 5VDC 1.5A
Working temperature: -10 ^+60
Storage temperature: -20 ^+60
Relative humidity: 10-90%, No condensation
Work frequency: GSM900,1800,1900Mhz
Communication protocol: GSM PHASE 2/2+ (include data service)
Wireless sensor receiving frequency: 433 MHz
Wireless sensor permission quantity: 15Pcs
Effective distancewireless of remote control: 100 m
Battery: Built-in lithium-ion battery: 2500mAh 3.7V
Standby time Approx.12hours (depending on the network condition)
Net Weight: 1.82Kg

Package Box of the GSM Alarm System S3524A



Guide to the use of GSM Alarm System S3524A

Physical Layout
Keyboard Instructions
Menu Functions
Menu Operations

Physical Layout of the GSM Alarm System



Keyboard Instructions of the GSM Alarm System

1) UP: Press it on standby mode to check missed calls.
2) RIGHT: Press it on standby mode to check dialed numbers.
3) Armed Mode: Press it on standby mode to choose All Armed Mode or Local Armed Mode with the correct password.
4) Disarmed Mode: Press it on standby mode to deactivate the system with the correct password.
5) MENU: Press it on standby mode to enter the main menu.
6) Cancel: Press it on standby mode to enter SMS menu.
7) OK: Press it on standby mode to enter the phone book.
8) SMS Templates: Press it on standby mode to enter the SMS templates list.
9) Volume: Press them to adjust the volume of the dialing tone and the call volume with the help of the volume adjustment string displayed on the LCD. As for the keyboard volume, it will be the same as the ring volume (See also Menu Operations).
10) SMS Indicator: When there comes a new SMS, it will be turned on while a logo being displayed on the LCD. The amount of the unread SMS will be displayed on the LCD also. After you have read all the unread SMS, the logo will be removed and the SMS indicator will be turned off.
11) SOS: Press it anytime to ask for emergent helps.
12) DOWN:Down direction.
13) LEFT: Left direction.
14) Redial: Redial the last outgoing call.
15)Handfree: Make/Answer calls without pickup the handset.
16)Number Keyboards

Menu Operations of the GSM Alarm System
On standby mode, press MENU button on the Control Unit, it will read:

With the direction keys, you will be able to choose one option from this.

Menu Functions of the GSM Alarm System
Alarm
The Control Unit could support 16 defense areas at most. They could be used for detecting gas, theft, smoke, and door, infrared and so on. With the help of the two Armed Modes mentioned above, the defense areas could be divided into main defense areas and normal defense areas.

When one sensor has detected unusual status, it will send its RF code to the Control Unit. After the Control Unit has received it, the name of the defense area will be displayed on the LCD according to different Armed Modes mentioned above.

In order to avoid fault alarm, there will be a delay reminder (customizable) (See also Menu Operations). Then there will be a logo displayed on the LCD. At the same time, the alert SMS with the name of the related defense areas will be sent to the recipient numbers (3 numbers at most). There will also be an alert call to recipient A. The siren in the house will also start to ring.

As for the recipient A, he/she could choose to answer the call in order to monitor the voices inside the house (siren off). After the recipient A hang up the call, the siren will continue ringing for one minute. The name of the defense area displayed on the LCD will only be removed after one switch between off-hook and hang-up.

SOS
By pressing SOS button on the remotes or the Control Unit, there will be a logo displayed on the LCD after the delay reminder. The alert SMS will then be sent to the recipient numbers with the following contents: SOS!

Disarmed Mode
You could deactivate the whole system by pressing the Disarmed Mode button on the emotes or the Control Unit. There will be words read: Input Password.

After you have inputted the correct password, the system will be deactivated. And the related logo of the Armed Mode will be removed.

Canceling Alarm
You could cancel the alarms during the delay reminder or during the alarms by pressing All Armed Mode/Local Armed Mode/ Disarmed Mode button on the remotes. And the system will be turned into the selected All Arm/ Local Arm/ Disarmed Mode.

Cancel on delay reminder, the delay and the alert will be cancelled. Cancel on alarms, the logo will be removed and the present alarm will be cancelled.

You could also cancel the alarms with the correct password by the Control Unit or by SMS.

SMS Templates
In order to benefit the needs of those people like olds or kids who might find it inconvenient to edit SMS, SMS templates are supported by the Control Unit (6 editable templates at most). On standby, by pressing the templates button, there will be 6 templates displayed on the LCD. You could easily send the related SMS to recipient A by selecting the related number (1-6) on the number keyboard.

Kids Report
The remote could be configured as the kid s remote. As a kid s remote, it will be able to send SMS while other remotes can t. When the Local Armed Mode or All Armed Mode is activated by the kid s remote, the system will automatically send a SMS (I have left the house.) to recipient A. The similar goes for the Disarmed Mode activated by the kid s remote: I have gone home.

Calls

1.1 Making Calls
On standby mode, press handfree button or pick up the handset. Dial the target number and press OK button to make calls. After the call, you could either put the handset down or press handfree/OK button to hang up.

1.2 Receiving Calls
When a call is coming, there will be Caller ID (if supported by the SIM card) and Caller Name (if already stored in the Phone Book) displayed on the LCD. Then you could answer the call by picking up the handset or press handfree button.

1.3 Missed Calls
The amount of the missed calls will be displayed on the LCD. The amount will be automatically changed into 0 when the user has checked the entire missed calls list.

1.4 Blacklist
In order to avoid harassments, we offer you blacklist function. For those numbers from which you don t want to answer calls or reply SMS, you could add them into the blacklist (See also Menu Operations). If the blacklist is activated (there will be a logo displayed on the LCD), for each new SMS that has been received, the Control Unit will check it with the blacklist. If the number is in it, the SMS will be deleted automatically. The same goes for the calls.

1.5 Whitelist
Also for avoiding harassments, we offer you whitelist function (See also Menu Operations). If the whitelist is activated (there will be a logo displayed on the LCD), for each call or SMS from the number which is not in the whitelist, the Control Unit will automatically reject it.

1.6 Armed Mode, Alarm & SOS
As the main part of a house alarm system, this Control Unit is integrated with alarm and SOS functions. You could also easily activate/deactivate the defense areas.

The remotes and sensors could only be useduntil their RF codes have been studied (1 million groups of different codes in all). If any remotes or sensors have been lost or damaged, you could easily change them with the help of the RF-code function.

1.7 Armed Mode
This function could be divided into All Armed (full defense areas) and Local Armed (selected defense areas).

All Armed Mode is designed for the security needs when the owner is not in the house. Under this mode, the Control Unit will collect signals sent from all the related sensors. After you try to activate this mode, there will be a delay before it s really activated. This is for avoiding fault alarms if the owner hasn t been able to leave the house. When the All Armed Mode is really activated, there will be a logo displayed on the LCD.

Local Armed Mode is designed for the security needs when the owner is in the house. By then, only the sensors of the selected main defense areas will work. For example, you could set the Gas Defense Area and Door/Window Defense Area as the main areas. Local Armed Mode could be activated instantly. When it s activated, there will be a logo displayed on the LCD.

To activate the Armed Mode, you could use the All Armed Mode button or the Local Armed Mode button on the remotes. But the RF code needs to be studied first. As for the query of the code and the delay of the All Armed Mode, please see also Menu Operations.

You could also use the Armed Mode button on the keyboard of the Control Unit. After you press that button, there will be words read on the LCD: Input Password.


The S3524A is designed for house and office and other applications. It based on GSM Communication network and Lcd Menu display technology.

The advantages of S3524A:
1.Easy to operate,LCD Display;
2.Child Remote Control Recognize Function;
3.Can use like a cell phone;
4.SMS function and listening function;
5.Remote control by cell phone or remote;Choose the right product will be benefit from it.The product S3524A is designed for house and office and other applications. It based on GSM Communication network and Lcd Menu display technology. When any sensor triggered, it will Call&Send SMS to user cellphones.

Step2
And exterior condition of the product also is important,S3524A it equips with LCD and Operation Menu Display, all operations and settings are visual and intuitive!
Step3
The third we should to know its Functions&Features:
1)Tri_band 900/1800/1900MHZ;
2)Can arm or disarm by SMS or remote control or Control Unit keyboard;
3)Automaticed send SMS Alert to pre-set cellphone when it triggered;
4)Automaticed dial Pre-set alarm phone numbers when it triggered;
5)Supports up to 15 pcs wireless sensors, each sensor can be named by user;
6)Supports 3 alarm telephones;
7)Supports Pre-set Message, Message inbox, Message Outbox,etc;
8)With Handset and dialer, the functions like the Cellphone;
9)Supports wiretap through internal Mircophone;
10)Supports SMS Operation report, when armed or disarmed by SMS, the Control Unit will reply a SMS to user s cellphone;
11)More Programmable to set its features, e.g.: delay time, named the sensor names, send SMS to users or not when power failure, turn on siren or not, etc;
12)Standby internal rechargeable battery which can last 12 hours;
13)Based on the GSM communication network and Operation Menu Display technology, apply to wide range situations;
