JL Audio M700/5 marinespesifisert effekt forsterker. Når kvalitet teller.
Til salgs6 995 kr
Beskrivelse
Vi sender fraktfritt ved bestilling i vår nettbutikk.

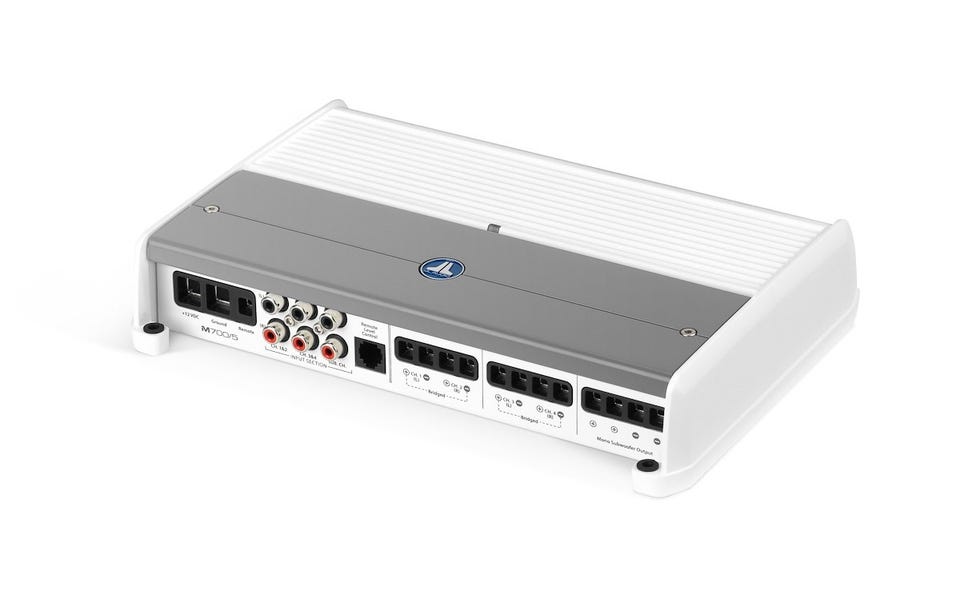

JL Audio M700/5
Kraftig 5 kanals marineforsterker, egner seg utmerket til å drive ett komplett system med fire stk. fulltonehøyttalere og en eller to basshøyttalere.
Spesifikasjoner:
Nominell effekt ved 14,4volt:
Hovedkanaler
•4x 75Watt (RMS ved 4ohm)
•4x 100Watt (RMS ved 2ohm)
•2x 200Watt (RMS ved 4ohm brokoblet)
Subwoofer kanal
•1x 180Watt (RMS 4ohm)
•1x 240Watt (RMS 3ohm)
•1x 300Watt (RMS 2ohm)
Nominell effekt ved 12,5volt:
Hovedkanaler
•4x 60Watt (RMS ved 4ohm)
•4x 900Watt (RMS ved 2ohm)
•2x 180Watt (RMS ved 4ohm brokoblet)
Subwoofer kanal
•1x 180Watt (RMS 4ohm)
•1x 240Watt (RMS 3ohm)
•1x 300Watt (RMS 2ohm)
Generelle spesifikasjoner:
•Frekvensrespons (hovedkanaler): 12 Hz – 22kHz (+0, -1dB)
•Frekvensrespons (subwoofer kanal): 10Hz – 1kHz (+0, -1dB)
•Signalstøyforhold, referert til høyest rangerte strøm: > 104 dB under merkeeffekt(A-vektet, 20 Hz - 20 kHz støy båndbredde)
•Signalstøyforhold, referert til 1 W: > 84 dB (A-vektet, 20 Hz - 20 kHz støy båndbredde)
•Damping Factor @ 4 ohm: > 150/50 Hz
•Damping Factor @ 2 ohm: > 75/50 Hz
•THD + N @ Nominell: mindre en 1% @ 2 ohm per kanal.
•Spenningsområde RCA-innganger: fra 200 mV - 4V RMS
•Spenningsområde Høynivå-innganger: 2V – 10V RMS
•Min. kopper Strøm / jord kabel: 4 AWG
•Anbefalt sikring: 60A (AFS, AGU eller MaxiFuse )
Signal prosessor:
•Delefilter område kanal 1 og 2 (Front): Kun høy- passfilter
•Filter kurve kanal 1 og 2 (Front): 12dB okt
•Filter frekvens kanal 1 og 2 (Front): 50Hz - 5kHz
•Delefilter område kanal 3 og 4 (Rear): høy- passfilter eller bandpass
•Filter kurve kanal 3 og 4 (Rear): 12dB okt
•Filter frekvens kanal 3 og 4 (Rear): 50Hz - 500Hz
•Delefilter område subwoofer: Kun lav- passfilter
•Filter kurve subwoofer: 12dB okt
•Filter frekvens subwoofer: 50Hz - 500Hz
•Kalibrert trinn nivå filter potensiometer: JA
•Filter Defeat funksjon: JA
•Infrasonisk filter: Ingen
•Bass Boost EQ: Nei
•Nivå fjernkontroll: HD-RLC (ekstrautstyr)
•Fjernstyrings modus: Sub kanal eller alle kanaler
•Inngangs velger bryter: Ja (2/4/6 kanaler)
•Preamp utgang: Ingen
Fysiske mål:
JL Audio M700/5 dimensjoner
•Høyde (H) 52mm
•Bredde (W) 260mm
•Dybde (D) 180mm
•Netto vekt: 2,79kg
JL Audio M700/5
Kraftig 5 kanals marineforsterker, egner seg utmerket til å drive ett komplett system med fire stk. fulltonehøyttalere og en eller to basshøyttalere.
Spesifikasjoner:
Nominell effekt ved 14,4volt:
Hovedkanaler
•4x 75Watt (RMS ved 4ohm)
•4x 100Watt (RMS ved 2ohm)
•2x 200Watt (RMS ved 4ohm brokoblet)
Subwoofer kanal
•1x 180Watt (RMS 4ohm)
•1x 240Watt (RMS 3ohm)
•1x 300Watt (RMS 2ohm)
Nominell effekt ved 12,5volt:
Hovedkanaler
•4x 60Watt (RMS ved 4ohm)
•4x 900Watt (RMS ved 2ohm)
•2x 180Watt (RMS ved 4ohm brokoblet)
Subwoofer kanal
•1x 180Watt (RMS 4ohm)
•1x 240Watt (RMS 3ohm)
•1x 300Watt (RMS 2ohm)
Generelle spesifikasjoner:
•Frekvensrespons (hovedkanaler): 12 Hz – 22kHz (+0, -1dB)
•Frekvensrespons (subwoofer kanal): 10Hz – 1kHz (+0, -1dB)
•Signalstøyforhold, referert til høyest rangerte strøm: > 104 dB under merkeeffekt(A-vektet, 20 Hz - 20 kHz støy båndbredde)
•Signalstøyforhold, referert til 1 W: > 84 dB (A-vektet, 20 Hz - 20 kHz støy båndbredde)
•Damping Factor @ 4 ohm: > 150/50 Hz
•Damping Factor @ 2 ohm: > 75/50 Hz
•THD + N @ Nominell: mindre en 1% @ 2 ohm per kanal.
•Spenningsområde RCA-innganger: fra 200 mV - 4V RMS
•Spenningsområde Høynivå-innganger: 2V – 10V RMS
•Min. kopper Strøm / jord kabel: 4 AWG
•Anbefalt sikring: 60A (AFS, AGU eller MaxiFuse )
Signal prosessor:
•Delefilter område kanal 1 og 2 (Front): Kun høy- passfilter
•Filter kurve kanal 1 og 2 (Front): 12dB okt
•Filter frekvens kanal 1 og 2 (Front): 50Hz - 5kHz
•Delefilter område kanal 3 og 4 (Rear): høy- passfilter eller bandpass
•Filter kurve kanal 3 og 4 (Rear): 12dB okt
•Filter frekvens kanal 3 og 4 (Rear): 50Hz - 500Hz
•Delefilter område subwoofer: Kun lav- passfilter
•Filter kurve subwoofer: 12dB okt
•Filter frekvens subwoofer: 50Hz - 500Hz
•Kalibrert trinn nivå filter potensiometer: JA
•Filter Defeat funksjon: JA
•Infrasonisk filter: Ingen
•Bass Boost EQ: Nei
•Nivå fjernkontroll: HD-RLC (ekstrautstyr)
•Fjernstyrings modus: Sub kanal eller alle kanaler
•Inngangs velger bryter: Ja (2/4/6 kanaler)
•Preamp utgang: Ingen
Fysiske mål:
JL Audio M700/5 dimensjoner
•Høyde (H) 52mm
•Bredde (W) 260mm
•Dybde (D) 180mm
•Netto vekt: 2,79kg
