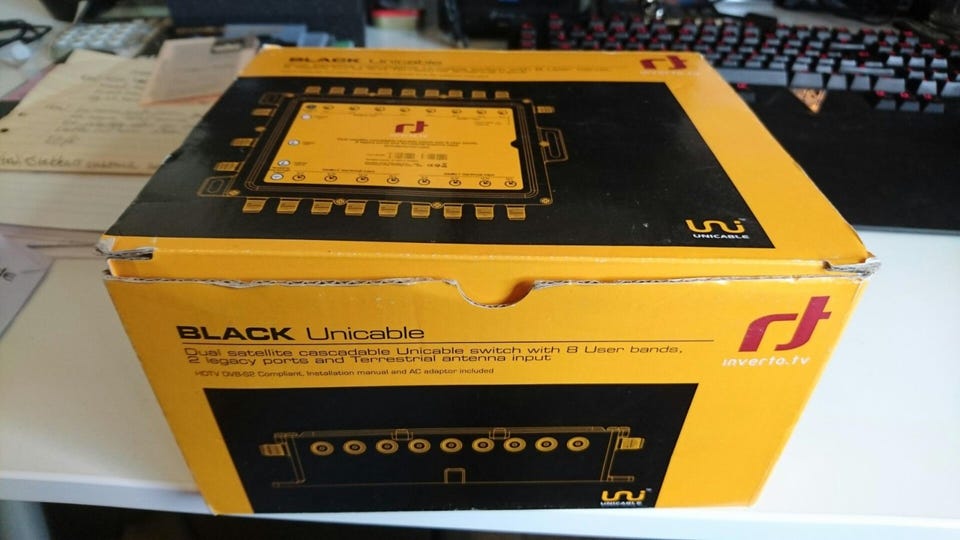

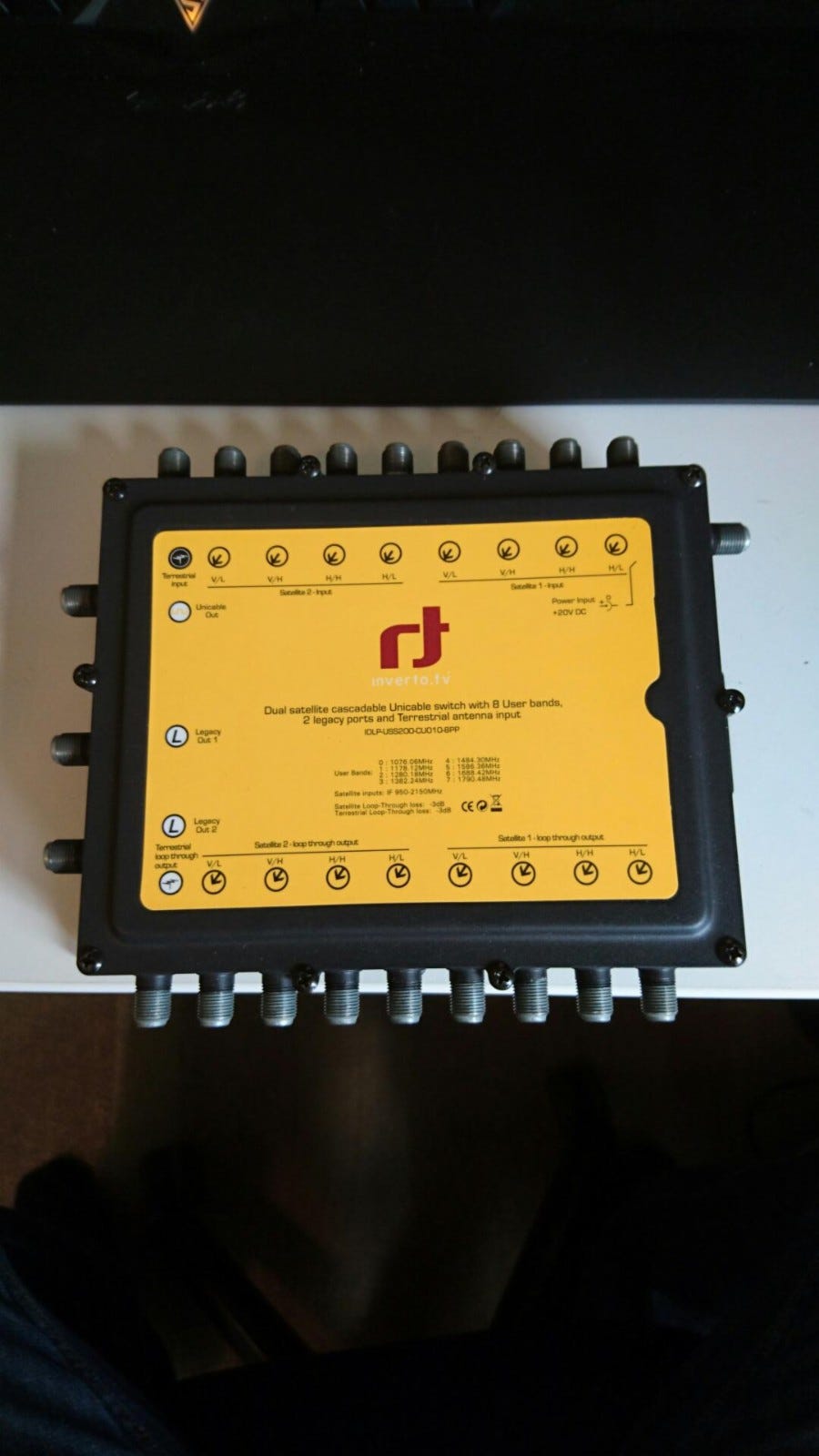

Inverto Black Unicable Multiswitch
Beskrivelse av varen
Inverto Black Unicable Multiswitch IDLP-USS200-CU010-8PP for 2 satelittposisjoner og cascadable slik at en kan koble flere switcher sammen og få flere utganger. 1 Unicable utganger hvor en kan bruke maks 8 tunere. 2 vanlige utganger for tunere som ikke støtter Unicable.
Egen inngang for bakkenettantenne.
Støtter kun quattro lnb.
Switchen er ca 6 år gammel, men er bare brukt ca ett år og lagret inne resten av tiden.
Tekniske data:
Inputs 8 x Satellite IF inputs from 2 Quattro LNBs
1 x UHF/VHF input from Terrestrial antenna
Outputs 8 x loopthrough satellite IF outputs
1 x loopthrough terrestrial output
2 x Legacy output with combined terrestrial signal.
1 x Unicable output for up to 8 receivers with combined terrestrial signal.
Control Protocol DiSEqC extension commands per EN50494
Inputs frequency range: Satellite 950 ~ 2150 MHz
Terrestrial 47 ~ 862 MHz
Loop-through loss: Satellite - 3 dB max.
Terrestrial - 3 dB max.
Conversion gain: Unicable output +10 to +20 dB
Legacy universal output -1 to +7 dB
Output signal level (ACG controlled) 93dBμV
Input power range -45 to -15 dBm
User band (Channel) bandwidth 40 MHz
User band (Channel) gain ripple 3 dB max.
User band frequencies (Channels)
CH 0 : 1076.06 MHz
CH 1 : 1178.12 MHz
CH 2 : 1280.18 MHz
CH 3 : 1382.24 MHz
CH 4 : 1484.30 MHz
CH 5 : 1586.36 MHz
CH 6 : 1688.42 MHz
CH 7 : 1790.48 MHz
Satellite/Satellite IF 28 dB min.
Satellite/Terretsrial 35 dB min
Satellite Channel/Channel (UBs) 30 dB min.
Lo phase noise
@1 KHz: -92 max dBc/Hz
@10 KHz: -101 max dBc/Hz
@100 KHz: -99 max dBc/Hz
@1 MHz: -103 max dBc/Hz
@10 MHz: -127 max.
Integrated phase noise 1.5 degrees max.
Input / Output VSWR 2.5 : 1
Input / Output Impedance 75 Ω (F-Type)
LNB input LNB0=>13V/0K , LNB1=>13V/22K (V)
LNB2=>18V/0K , LNB3=>18V/22K (H)
LNB power supply 13/18V, max 400mA
DC Power consumption 20V @320 mA [ max ] V/mA (F-Type)
Working Temperature - 34 ~ + 60 °C
Dimenssions 204 x 139 x 19 (H x W x D) mm
