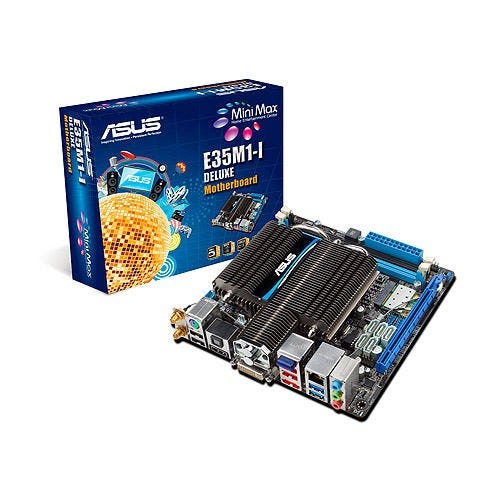

ASUS E35M1-I DELUXE med innebygd cpu m/vga (APU)
Til salgs
799 kr
Beskrivelse av varen
Type: Komponenter
Tilstand: Brukt
Pent brukt mini ITX hovedkort. Dette hovedkortet har innebygd cpu med vga eller rettere sagt APU. Hovedkortet ligger pent pakket i original emballasje i antistatisk pose med alt tilbehør som fulgte med fra fabrikk.
Faster Data Transfer with True USB 3.0 & SATA 6Gb/s on AMD Brazos Platform
Integrated AMD Dual-Core Processor E-350 with AMD Radeon? HD 6310 Graphics
USB 3.0/SATA 6G- High Speed Transfer Technology
EFI BIOS (EZ Mode)- Flexible & Easy BIOS Interface
MemOK! - Any Memory is A-OK!
Wireless on board
CPU
AMD CPU on Board ;Fusion APU E-350 Dual-Core Processors
Chipset
AMD® FCH A50 (Hudson M1)
Memory
2 x DIMM, Max. 8 GB, DDR3 1066/800 Non-ECC,Un-buffered Memory
* Please refer to www.asus.com or user manual for Memory QVL.
* When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe 2.0 x16 (at x4 mode, with latch)
VGA
Integrated AMD® Radeon HD 6310
Supports DVI with max. resolution up to 1920x1200@60Hz
Supports HDMI with max. resolution up to 1920x1080@60Hz
Storage
Southbridge
5 xSATA 6.0 Gb/s ports
1 xExternal SATA 6Gb/s
LAN
Realtek® 8111E PCIe Gigabit LAN controller
Audio
ALC892 8-Channel High Definition Audio CODEC
Supports DTS Surround Sensation Ultra-PC
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB
NEC Controller:
- 4 x USB 3.0/2.0 ports (2 ports at mid-board, 2 ports at back panel)
Chipset built-in:
- 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS CrashFree BIOS 3
AI Suite II
TurboKey II
Mem OK!
Q-FAN
Anti-surge
DTS Surround Sensation UltraPC
ASUS@Vibe Support

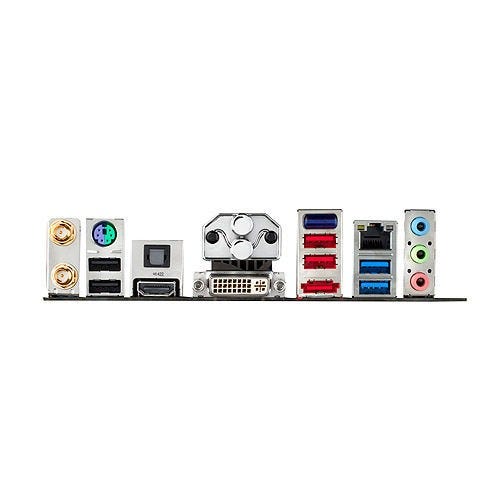

Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x HDMI 1.3b
1 x External SATA 6Gb/s
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0
4 x USB 2.0/1.1
1 x S/PDIF Out (optical)
1 x Bluetooth 3.0 adapter
2 x Wifi antenna ports
3 x Audio jacks
Internal I/O Connectors
1 x USB 3.0/2.0 connector(s) support additional 2 USB 3.0 ports
2 x USB 2.0/1.1 connector(s) support additional 4 USB 2.0 ports
1 x MemOK! switch
5 x SATA 6.0Gb/s connectors
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Chassis Intrusion connector
1 x S/PDIF Out connector
1 x 4-pin ATX 12V Power connector
1 x 24-pin EATX Power connector
1 x Front panel audio connector
1 x System Panel connector
1 x Turbo Key II switch
BIOS
32 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a, SM BIOS 2.6
Accessories
User's manual
1 x I/O Shield
2 x SATA 6.0Gb/s cables
2 x Wifi antennas
1 x Support DVD
Support Disc
Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
