Hovedkort Haswell Asus Z87-K Desktop Motherboard Z87 i7, i5, i3, USB3, LGA1150
Til salgs
900 kr
Beskrivelse av varen
Type: Komponenter
Tilstand: Brukt
Hovedkort selges:
Inkludert er:

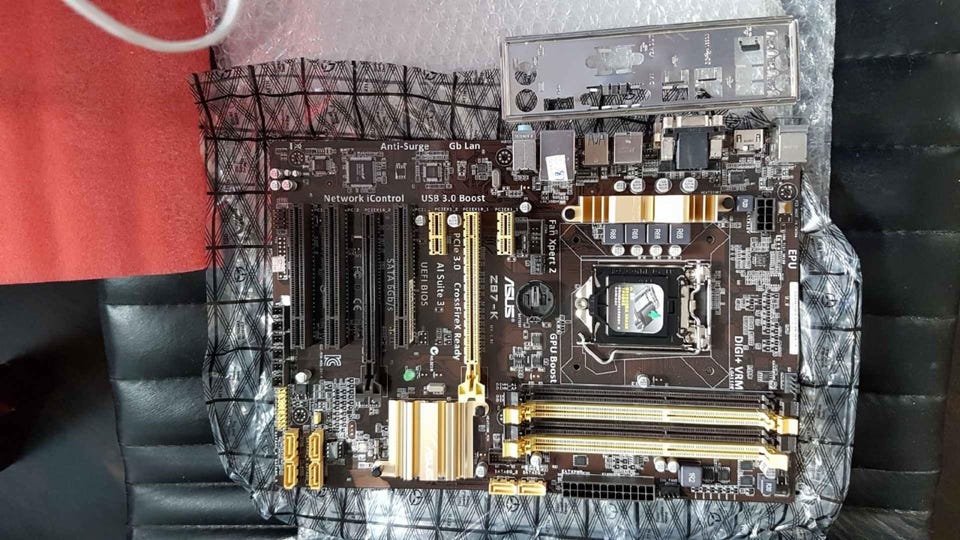

- Hovedkort i antistatisk pose
- Bak-plate for pc-kabinett/tårn
Varens stand:
- Kortet er demo brukt, og ikke "hardt brukt" til gaming o.l.
- Betaling gjøres med VIPPS eller bankoverførsel
- Frakt norgespakke og forskuddsbetaling eller norgespakke med postoppkrav
Hovedkortet støtter følgende prosessorer:
- Prosessor socket LGA1150
- Kun de prosessorene som er listet her: https://www.asus.com/no/Motherboards/Z87K/HelpDesk_CPU/
Full spesifikasjoner og info om kortet:
https://www.asus.com/no/Motherboards/Z87K/specifications/
Asus Z87-K Desktop Motherboard Z87 Socket LGA 1150 i7 i5 i3 DDR3 32G SATA3 USB3.0 ATX mainboard

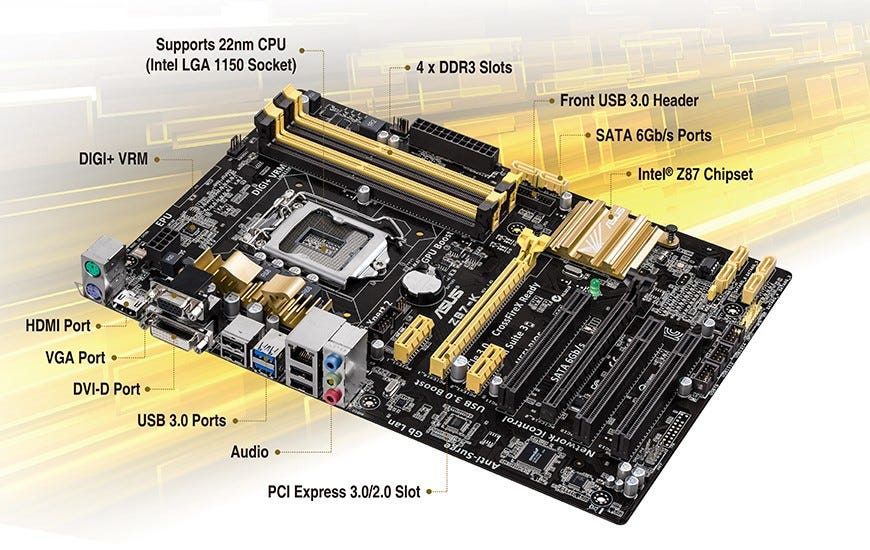

Asus Z87-K Highlights:
ASUS 5X Protection – All-round protection provides the best quality, reliability, and durability

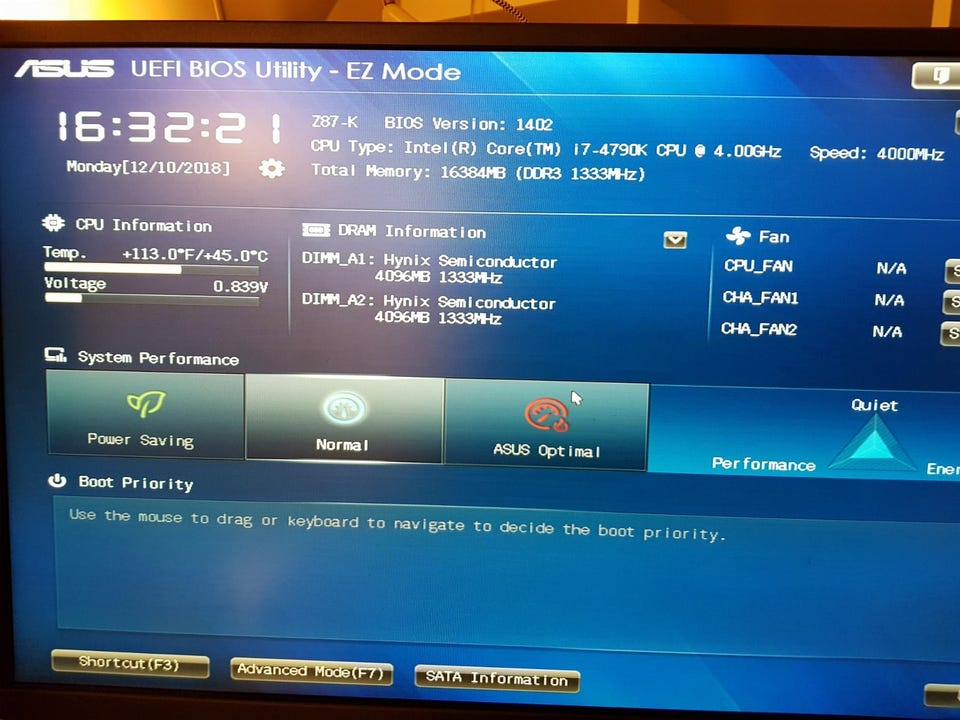

New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
Fan Xpert 2 – Comprehensive controls for the perfect cool and quiet balance
USB 3.0 Boost (UASP Support) – 170% faster transfer speeds than traditional USB 3.0
Ai Suite 3 – One-stop access to innovative ASUS features
Asus have incorporated ‘5K hour Solid State Capacitors’ which ‘assure a 5,000 hour lifespan, equivalent to 2.5 times longer than traditional capacitors’.
Asus Z87-K ticks quite a few boxes. It has the latest user adjustable UEFI BIOS configuration with simplified or advanced menus, depending on your skill level. Thanks to the latest Z87 Intel chipset, all the SATA ports are 6Gbps rated.
ASUS Z87-A Motherboard Specifications
CPU
LGA socket for the 4th Generation Intel Core i7, i5, i3 Pentium and Celeron Processors
Supports 22nm CPU
Supports Intel Turbo Boost Technology (Dependent on CPU type)
Chipset
Intel Z87 Express Chipset
Memory
4x DIMM max 32GB, DDR3 2800 (O.C.)*/2666 (O.C.)*/2600 (O.C.)*/2500 (O.C.)*/2400 (O.C.)*/2200 (O.C.)*/2133 (O.C.)*/2000 (O.C.)*/1866 (O.C.)*/1800 (O.C.)*/1600/1333 Mhz, non-ECC, un-buffered memory
Dual channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to physical characteristics of individual CPU
Expansion slots
2x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode
1x PCI Express 2.0 x16 slot (max at x2 mode, compatible with PCIe x1 and x2 devices
2x PCI Express 2.0 x1 slots
2x PCI slots
VGA
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: Mini DisplayPort!HDMI/DVI-D/RGB port
Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @24Hz and 3840 x 2160 @60Hz (for DisplayPort and Mini DisplayPort)
Supports HDMI with max. resolution of 4096 x 2160 @24Hz and 2560×1600 @60Hz
Supports DVI with max. resolution of 1920 x 1200 @60Hz
Supports RGB with max. resolution of 1920 x 1200 @60Hz
Supports Intel lnTru 3D, lnteJ Quick Sync Video, Intel Clear Video HD Technology, and Intel Insider
Supports up to three displays simultaneously
Maximum shared memory 1024MB
DisplayPort 1.2 Multi-Stream Transport compliant, supports DisplayPort 1.2 monitor daisy chain up to 3 displays
Mulit GPU Support
Supports NVIDIA Quad-GPU SLI Technology (with 2 PCie x16 graphics cards)
Supports AMD Quad-GPU CrossFireX Technology
Storage
Intel Z87 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 12 support
6 x SATA 6.0 Gb/s ports (yellow)
Supports Intel Smart Response Technology. Intel’ Rapid Start, Technology. Intel Smart Connect Technology
LAN
Realtek 8111GR Gigabit LAN controller
ASUS Remote GO! Utility
Audio
Realtek ALC892 8-channel high definition codec
Absolute Pitch 192khz/24bit True BD Lossless Sounds
DTC UltraPC II
DTS Connect
Supports jack detection, multi-streaming and front panel jack-retasking
Optical S/PDIF out ports at rear I/O
USB
Intel Z87 Express Chipset – supports ASUS USB 3.0 Boost
2 x USB 3.0/2.0 ports at mid-board for front panel support
4 x USB 3.0/2.0 ports at rear panel (blue)
8 x USB 2.0/1.0 ports (6 ports mid-board, 2 ports at rear panel)

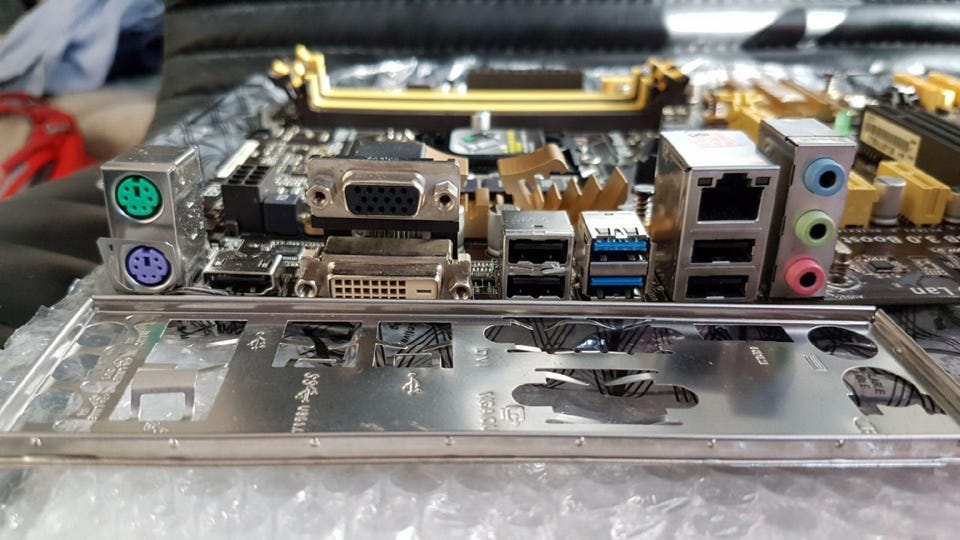

Rear Panel I/O Ports
1 x PS/2 Keyboard/mouse combo port
1 x Mini DisplayPort
1 x HDMI port
1x DVI
1 xRGB
1 x Optical S/PDIF Out port
1 x LAN (RJ-45) port
4 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
8-channel Audio 1/0 ports
Internal I/O Connectors
1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB ports
3 x USB 2.0/1.1 connectors support additional 6 USB ports
6 x SATA 6.0 Gb/s connectors (6 x yellow)
1 x 4-pin CPU Fan connector supports both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control
1 x 4-pin CPU Optional Fan connector (CPU_OPT)
3 x 4-pin Chassis Fan connectors
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x TPM connector
1 x Serial (COM) port connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
System Panel (Q-Connector)
1 x MemOK! button
1 x Clear CMOS jumper
1 x DirectKey button
1 x DRCT (DirectKey connector)
1 x EPU switch
1 x TPU switch (advanced two stage adjustments)
Form Factor
ATX form factor:12 in. x 8.8 in. (30.5 cm x 22.35 cm)
