JVC QL-Y3F servokontrollert helautomatisk platespiller
Beskrivelse av varen
Type: Platespillere

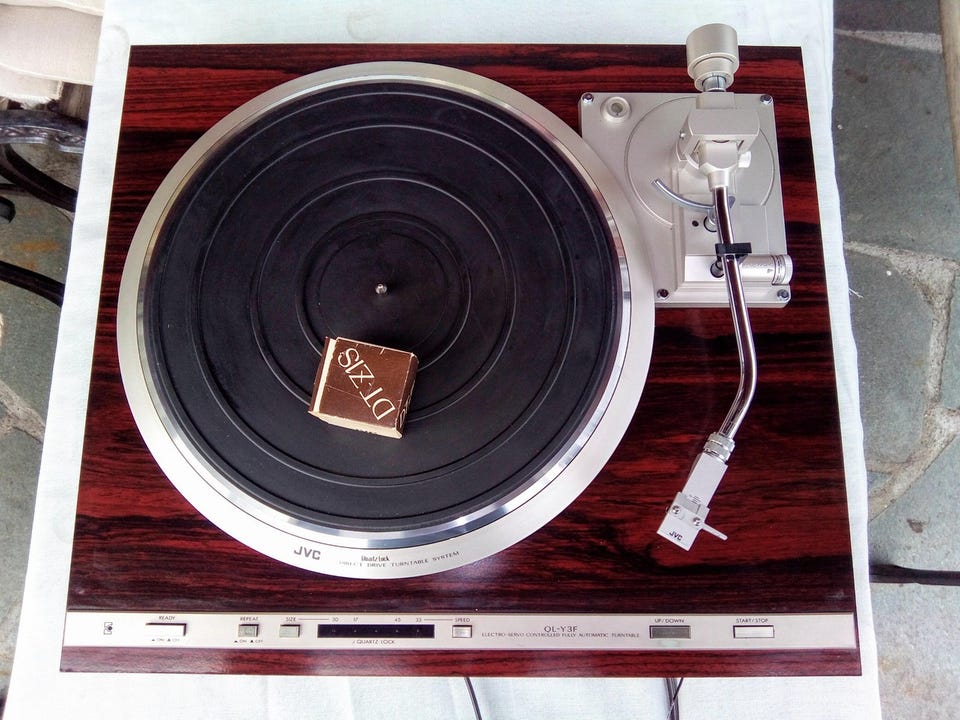

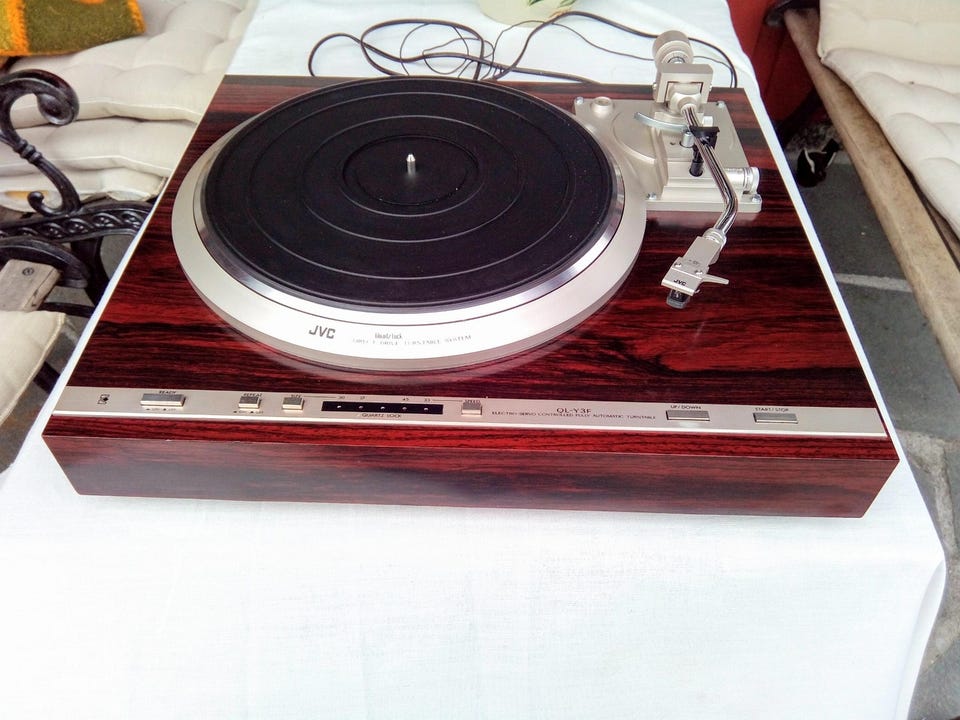

Riktig flott og meget velspillende JVC QL-Y3F platespiller i flott rosewood tre.
Dette var en av toppmodellene med servokontroll/quartz lås og helautomatikk.
Ubrukt original ekstra jvc stift følger med.
Direktedrift og vekt på hele 10kg.
Har ikke lokk, men det skal jo uansett av når den brukes.
Kan sendes forsikret mot kr.300,- i porto.
The QL-Y3F is a fine combination of traditional workmanship and high technology JVC features.
Foremost of these features is the E-D servo system that controls horizontal arm movement.
A coreless linear motor with a horizontal velocity detection system is used to combat resonance which can cause intermodulation distortion.
Also featured on the QL-Y3F are the same double servo quartz control system and cog-free coreless DC servo motor design used in our more costly turntables, providing impeccable long-term speed accuracy.
Despite all this technology, the QL-Y3F is easy to use thanks to micro-computer controlled fully automatic operation.
The micro-computer, a programmed to order LSI, co-ordinates all circuits and controls for error free, fully automatic operation, including platter start, cueing, lead-in, lead-out and end of play shut-off.
Other features include soft-touch up-front controls, an adjustable height tonearm and LED indicators for speed, quartz-lock and record size.
Motor: coreless DC servo motor
Drive system: direct drive
Speed detection system: integrated frequency generator
Servo system: double servo quartz
Wow and flutter: 0.025% WRMS
Signal to noise ratio: 78dB
Speed deviation: 0.002%
Platter: 1.5kg 310mm diecast aluminium
Tonearm: statically-balanced electronic servo controlled arm
Effective length: 245mm
Overhang: 15mm
Tracking force: 0 to 3g
Cartridge weight range: 14.25 to 19g (inc headshell)
Operation mode: fully automatic
Dimensions: 480 x 169 x 436mm
Weight: 10kg
