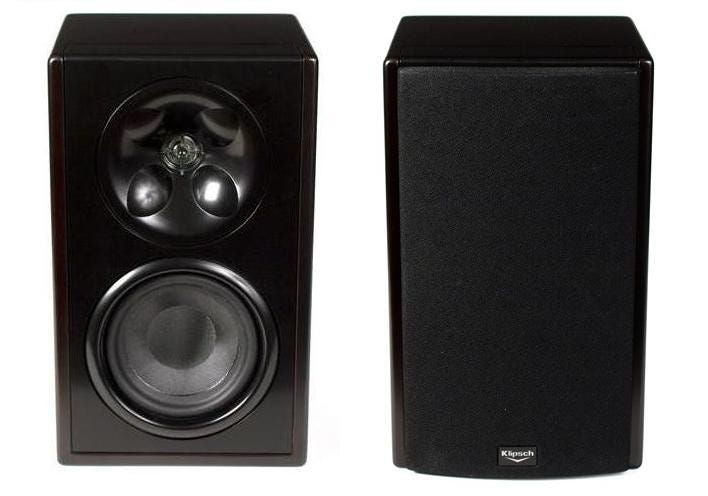

Klipsch Icon WB 14 bokhyllehøyttalere

WB 14 er en fin, liten bokhyllehøyttaler i Icon serien til Klipsch. De spiller dynamisk og åpent, med tydelig personlig preg. Sier Klipsch:

Low distortion with wide consistent soundstage
Premium titanium tweeter for precise highs
Fiberglass woofer for amazing lows
Slim stature complements flat-panel TVs
Magnetic grille no visible fasteners on baffle
Exotic furniture-grade wood veneer finish
Threaded insert for easy wall mounting


The WB-14 is for those who want home theater or stereo speakers that look as good as they sound. When compared to traditional bookshelf speakers, the WB-14 is more refined, taking up less space while still delivering our dynamic and detailed sound.


The new XT Tractrix Horn design delivers a wider dispersion pattern_80 x 80 degrees_than a traditional Klipsch Tractrix Horn. It is a technology that allows the slim Icon W speakers to deliver a wider sound field, while also providing more latitude in placement.


In general, wide dispersion horns are more difficult to design, as they tend to exhibit problems in dispersion uniformity. In other words, while the horn´s coverage pattern is wider, it´s also more inconsistent_especially at high and low frequency extremes. Klipsch designed the XT Tractrix Horn to solve this problem.


Traditional wide dispersion horns have fast expansion rates (or taper rates), which is why they feature large "mouths" and shallow depths. These two characteristics are the root cause of the dispersion uniformity because the sound wave traveling down the length of the horn loses contact with the walls and it´s the walls that determine the coverage pattern.


However, in our XT design, we´ve added "graceful bumps" to the horn so its flare isn´t quite as fast. This forces the sound wave that istraveling down the length of the horn to stay in contact with the horn walls. As long as you can fully illuminate the internal volume of the horn consistently at all frequencies, the more consistent the horn dispersion will be.

Specs:

CROSSOVER FREQUENCY: 2400kHz
DEPTH: 6.5" (16.5cm)
ENCLOSURE MATERIAL: MDF
ENCLOSURE TYPE: Bass-reflex via rear-firing port
FINISHES: Furniture-grade wood veneer available in cabernet or espresso
FREQUENCY RESPONSE: 82Hz-23kHz +/-3dB
HEIGHT: 11" (27.9cm)
HIGH FREQUENCY DRIVERS: 1" (2.5cm) titanium diaphragm compression driver mated to a 3.75" 80 x 80 round Tractrix(r) horn
LOW FREQUENCY DRIVERS: 4.5" (11.4cm) high-output, fiberglass cone woofer
LOW FREQUENCY EXTENSION: 68Hz

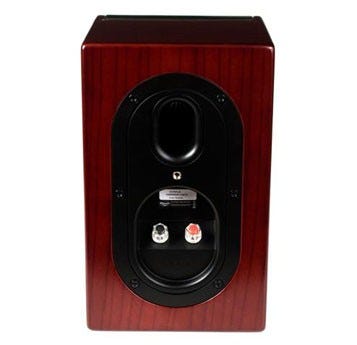

MOUNTING: Back panel 1/4"-20 threaded insert
NOMINAL IMPEDANCE: 8 ohms
POWER HANDLING: 40W continuous / 200W peak
RECOMMENDED AMPLIFIER POWER: 100W
SENSITIVITY: 92dB
WEIGHT: 10 lbs
WIDTH: 6.5" (16.5cm)
